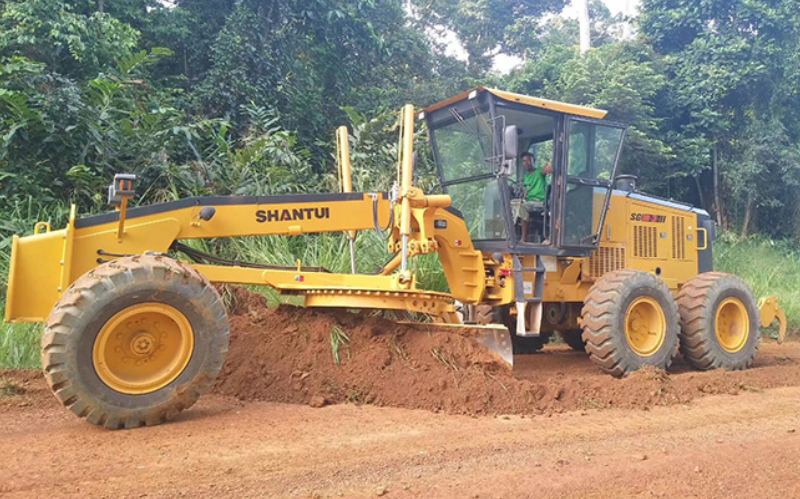

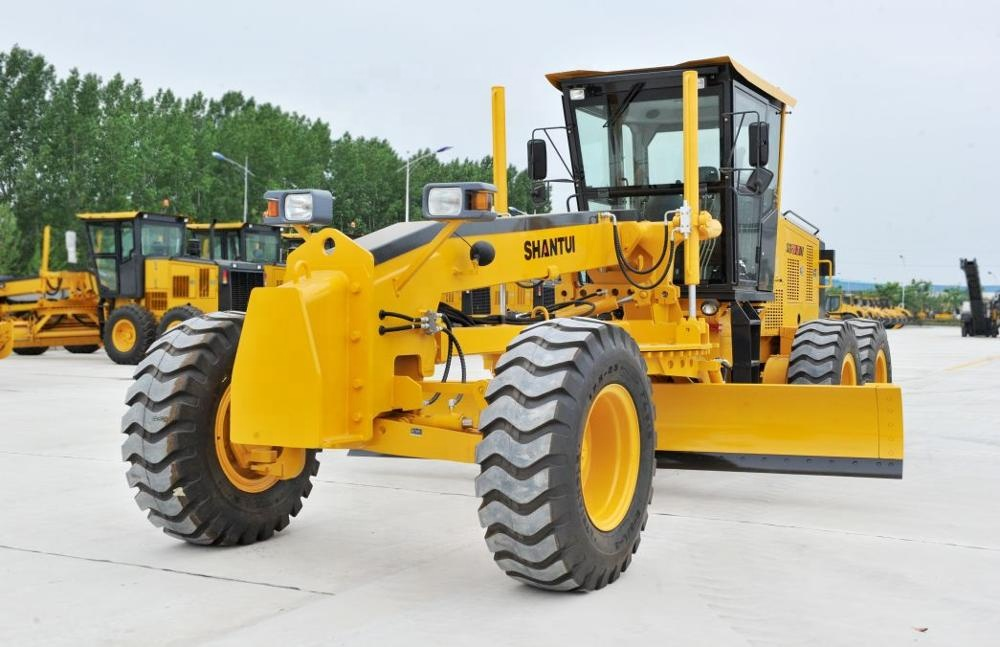

SHANTUI SG17-B6 DS Motor Grader

Home Product Motor Grader Grader

View larger image

SHANTUI SG17-B6 DS Motor Grader

Engine Power： 132kW/2200rpm

Overall Weight：14800kg

Width of Shovel Blade：3660mm

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SG17-B6 DS Motor Grader

Configuration Selling Point

This machine, featuring its mainstream engine and drive system, delivers the utmost traction available in the industry and remarkable operational efficiency. It comes equipped with a heavy-duty slewing bearing working device and cutting edges specially developed by Shantui, ensuring smooth rotation, superior resistance against wear, and exceptional resilience against impacts.

Ease Of Maintenance And Operation Comfort

The machine is designed with externally accessible lubrication points for ground lubrication and is equipped with a centralized pressure testing system. Every oil filler is designed to be externally accessible. The cab design of this machine eliminates the A-pillar and presents an expansive 320° wide field of vision. It is furnished with a mechanical suspension seat and an electronic control handle, ensuring a more comfortable and convenient operating experience.

Adaptability To Diverse Working Conditions

The machine offers the flexibility to be fitted with a range of attachments, including the front moldboard and rear ripper, to meet the construction requirements across diverse working conditions, such as leveling, trenching, scraping, and stripping.

Parameter

Engine	Cummins 6BAA5.9-C180
Rated power/speed	132kW/2200rpm
Forward speed	43km/h
Reverse speed	30km/h
Tractive effort	84KN
Minimum turning radius	/
Length X chord height	/
Overall dimension（standard）	8953×2600×3350mm
Total weight（standard）	14800kg
