ENGINE POWER： 160kW/2200rpm
WIDTH OF SHOVEL BLADE：3660/3965/4270mm
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature
● It’s powered by Dongfeng Cummins 6CTAA8.3-C215 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.
● The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.

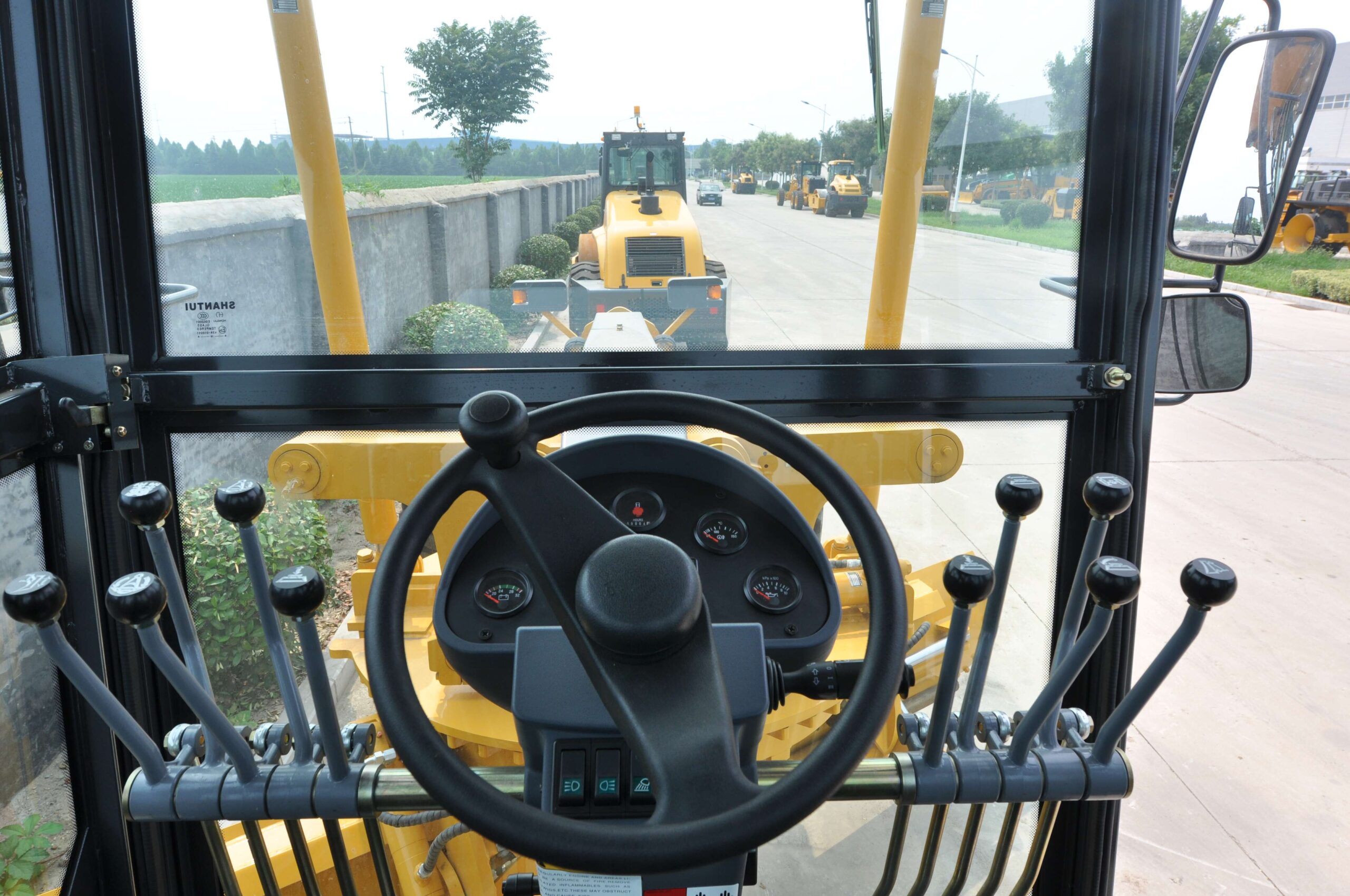

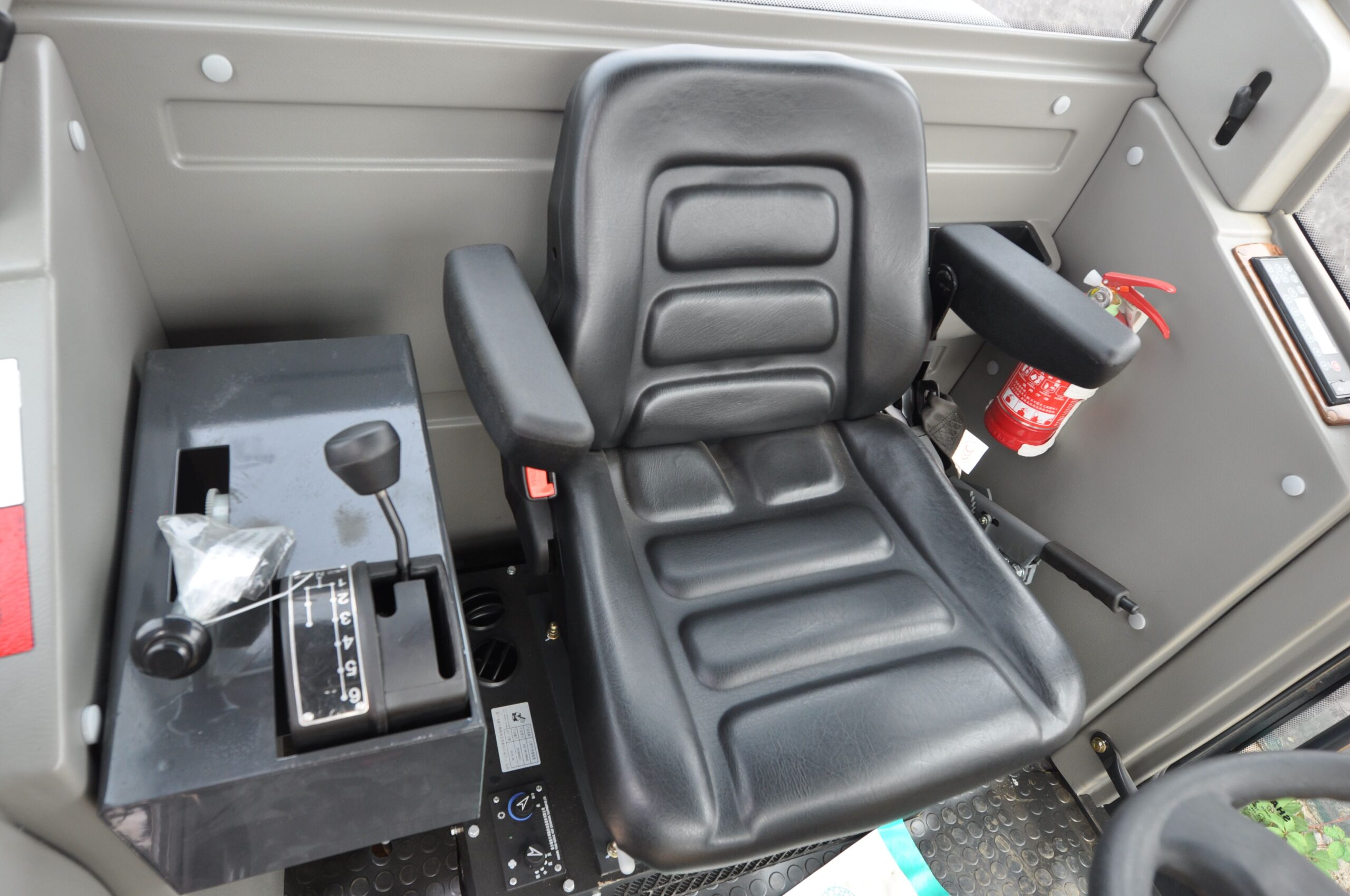

● The high-grade full-sealed luxury cab with full visual field and the high-efficiency shock-absorbing seat maximize the operating comfort.
● The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
● With 6 forward gears and 3 reverse gears, the electro-hydraulically controlled power shift transmission can select the optimal gear based on the working road condition to realize the best match between traveling and operation.

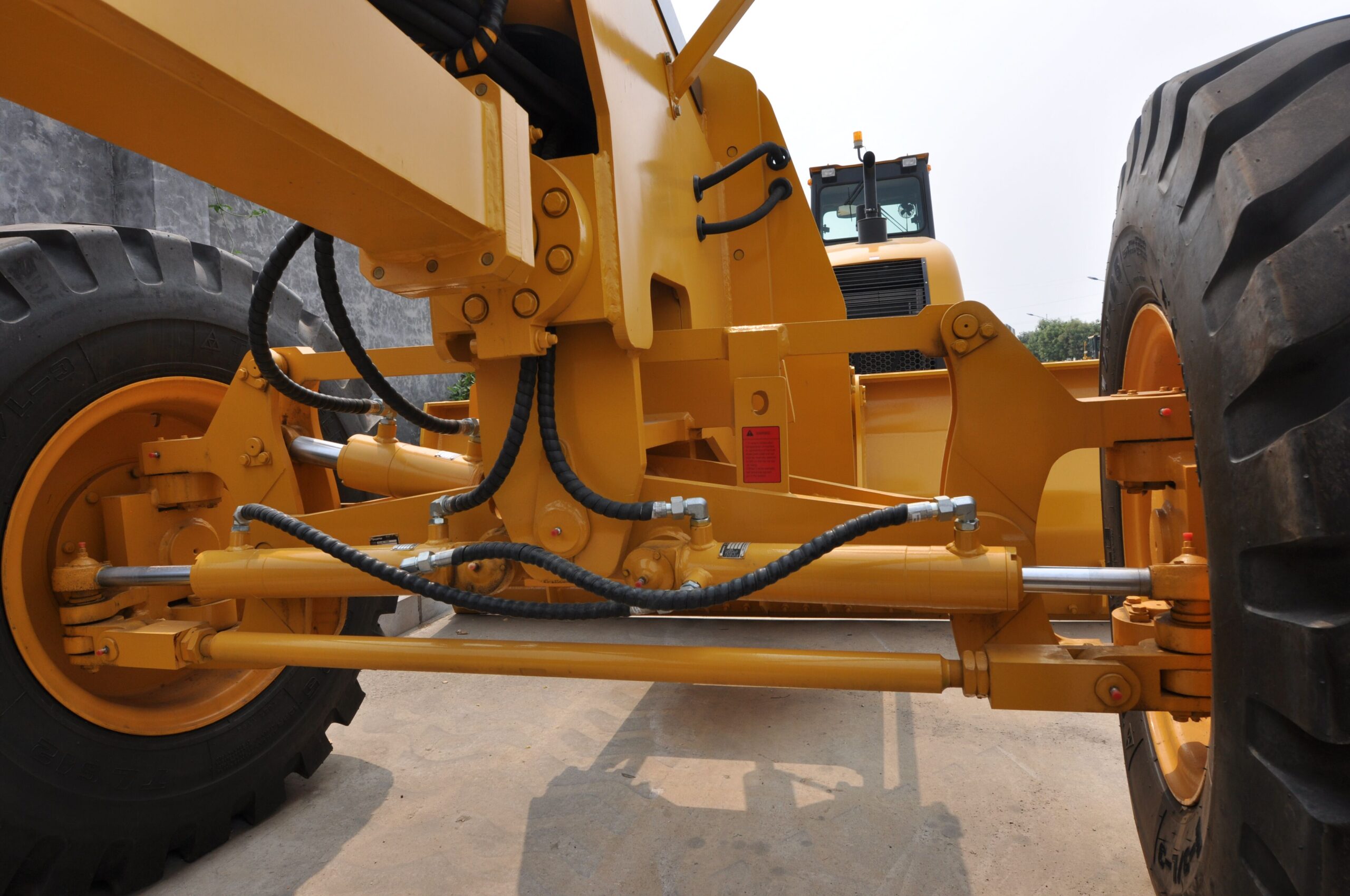

● The integral three-segment drive axle is built internally with imported no-spin automatic limited slip differential to guarantee stable and reliable drive.
● The balance box is capable of 15° angular swing in vertical direction and the heavy-duty roller chain drive guarantees better terrain adaptability of the machine. It can meet the normal operations under special road conditions, featuring stable power output and strong drive force.
● It features the highest traction force among the domestic motor graders of like type and the highest operating efficiency among the domestic products of like type.
● The external gear working device of proprietary technology features high drive torque and strong resistance against external force impact.
● The blade of larger angular adjustment range (37°-83°) improves the material control capability and remarkably promotes the operating efficiency of motor grader, especially during the handling of dry material and clay.
● With full-load scraping capability in 2nd forward gear, the motor grader can remarkably promote the production efficiency compared with domestic products of like type.
● With high resistance against external force impact, the link type swing frame is applicable for the working conditions with high operating volume and severe operating environment.
● The hydraulic pin puller cylinder can complete the operations of swing frame by merely one operator to eliminate all potential safety hazards and ease user’s operations.
● The structural parts inherit the excellent quality of Shantui mature products.
● The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
● The maintenance-free battery installed on the rear of the machine features high power capacity.
● The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.
Parameter
| Engine | Cummins 6CTAA8.3-C215 |
| Rated power/speed | 160kW/2200rpm |
| Forward velocity | 5.4/9.4/12.2/20.5/25.4/39.7km/h |
| Reverse speed | 5.4/12.2/25.4 km/h |
| Tractive effort | 88.2KN |
| Minimum turning radius | 8.2m |
| Length X chord height | 3660/3965/4270×635mm |
| Overall dimension（standard） | 9315×2600×3400mm |
| Total weight（standard） | 16800kg |
