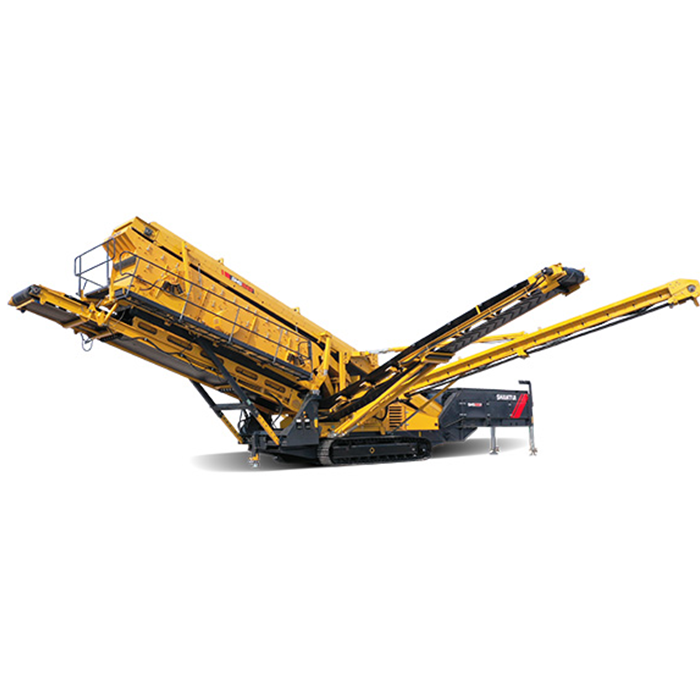

SHANTUI SMS1560-G Mobile Screening Station

Home Product Underground and Mining Crusher

View larger image

Weight：38000kg

Productivity： 500t/h

Engine power：110kw/2500rpm

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SMS1560-G Mobile Screening Station

SMS1560-G mobile screening station can be used in various scenarios of screening finished products after crushing sand and gravel. The three-layer screen configuration can screen out four kinds of finished materials; hydraulically driven, the operation is stable and reliable; the screening angle can be adjusted to adapt to various types of material screening; the whole machine can be folded to the transportation size and can be moved by wireless remote control , the transition is more calm.

Parameter

Weight	38000kg
Engine power	110/2500kW/rpm
Maximum processing capacity	500t/h
Maximum feed particle size	150mm
Screen box size/area/number of layers	6000×1550/9.3/3mm/㎡/-
Discharge particle size/hopper volume	0-80 / 6mm/m³
Screen box inclination angle/speed	18-30°/1000°/rpm
Transport state size	19300×3000×3500mm
Working state size	19500×17800×7100mm
Fine material bandwidth and discharge height	1200/5.2mm/m
Medium material bandwidth and discharge height	800 /4.7mm/m
Large material bandwidth and discharge height	800 /4.7mm/m
Extra large material bandwidth and discharge height	500/4.4mm/m
