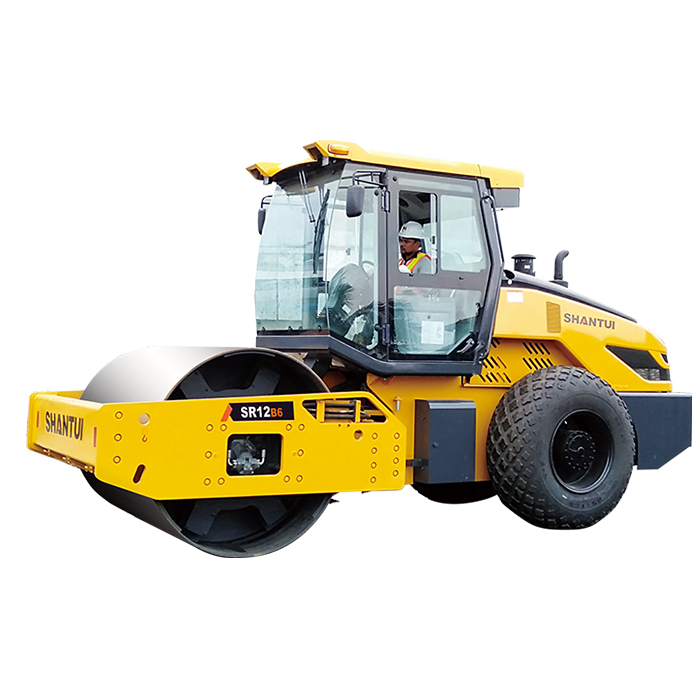

SHANTUI SR12-B6 Single Drum Rollers & Soil Compactors

Features

Engine Model：Weichai WP6G140E22

Operating Weight: 12000Kg

Axle Load Front: 7000Kg

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SR12-B6 Single Drum Rollers & Soil Compactors

Configuration Selling Point

The Weichai WP4 engine for the roller developed by the Group matches well with dual-drive traveling and vibration hydraulic systems for high efficiency, strong climbing ability and high excitation force; the steel drum is of three-in-one design for good compaction effect;

Ease Of Maintenance And Operation Comfort

The split-type large space enclosed cab of new appearance without A-pillar guarantees comfortable operation and wide vision; the rotational molded large fuel tank extends the work duration; the fuel filter element, hydraulic filter element, oil drain port and water outlet are led outward, the filter elements are centrally arranged, and the hood has an opening height for easy maintenance;

Adaptability To Diverse Working Conditions

It is suitable for the compaction of the base course, sub-base course and filling of various materials; it can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions

Parameter

Operating weight	12000Kg
Axle load, front	7000Kg
Axle load, rear	5000Kg
Static linear load	/
Engine manufacturer	Weichai
Engine Model	WP6G140E22
Rated Power	97.5Kw/2200rpm
Speed range(Forward)Speed (1)(2)(3)(4)	0-5.3/0-9.9km/h
Speed range(Backward)Speed (1)(2)(3)	0-5.3/0-9.9km/h
Vibration frequency	30/36Hz
Vibration amplitude	1.9/0.9mm
Centrifugal force	290/200kN
Working width	2140mm
Max. gradeability	45%
Track radius, out	6400mm
Overall dimensions	5890x2305x3160mm
