Feature

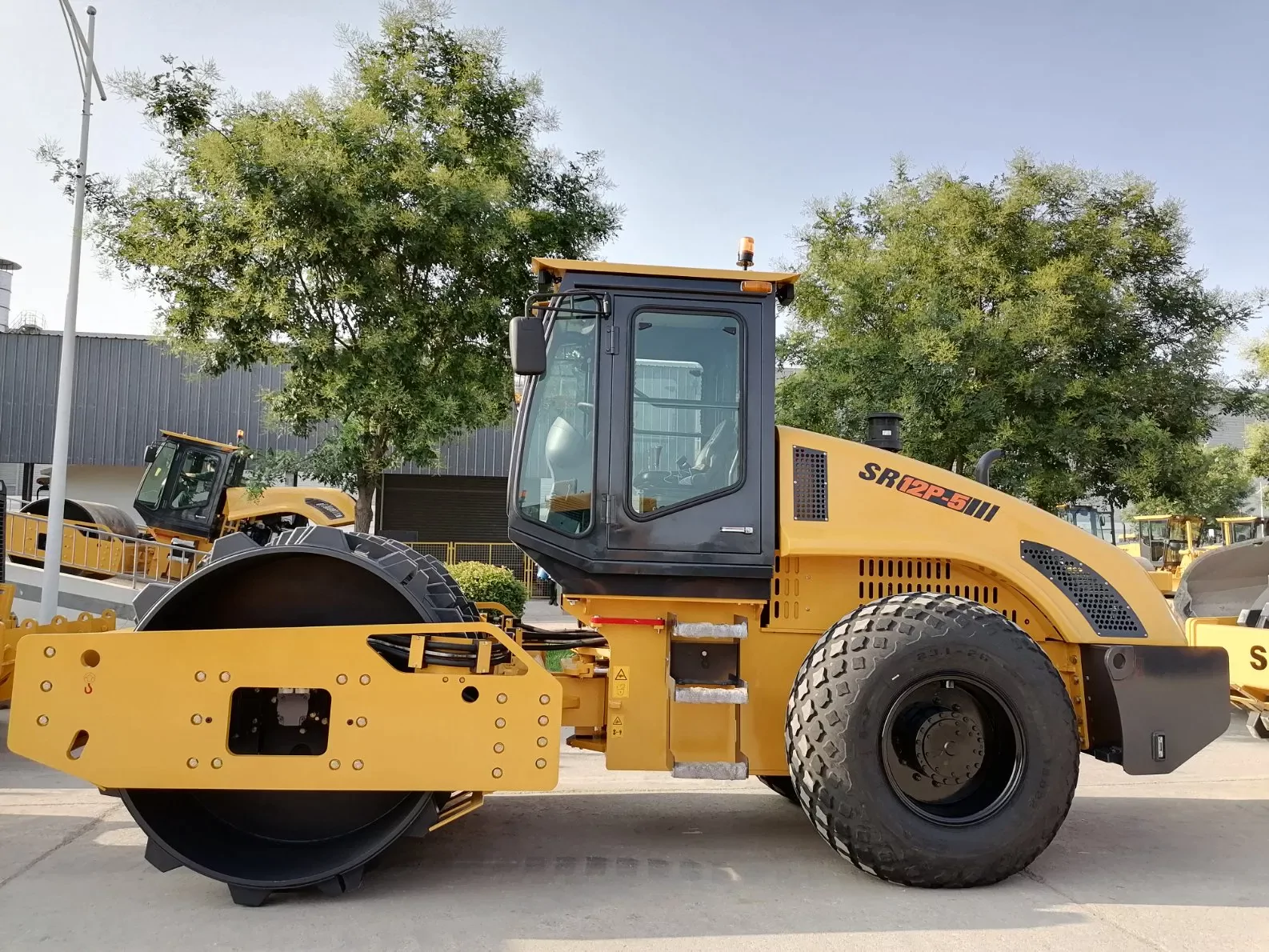

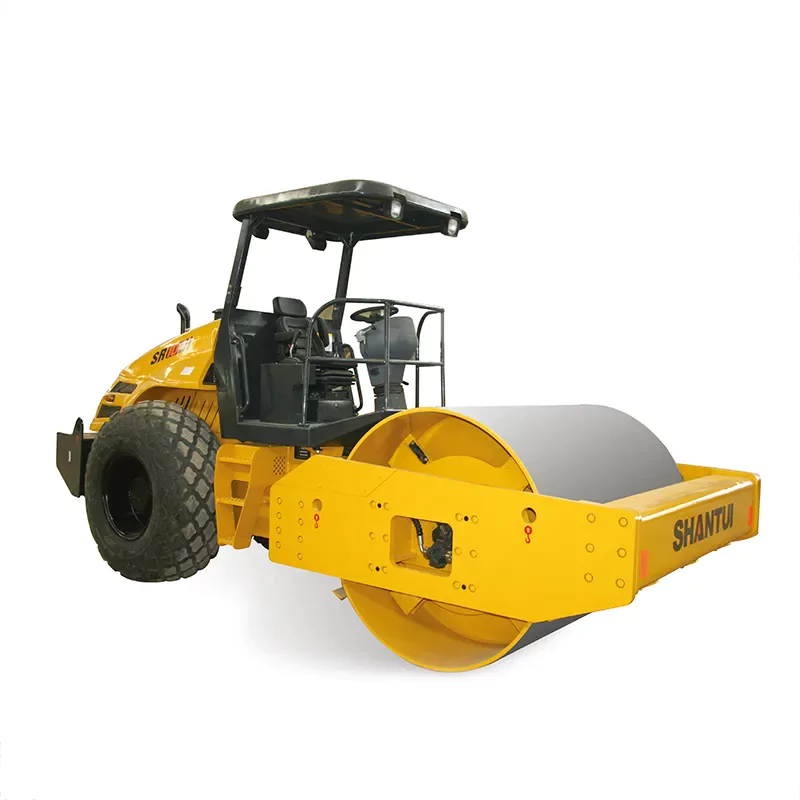

SHANTUI SR12P Single Drum Rollers & Soil Compactors- Featuring prominent performances, high reliability, good fuel economy, and strong power, Weichai WP6G140E22 engine maintains the machine under best compacting status to guarantee the construction quality.
- Shantui’s patented new vibratory drum features more excellent structure and stability performances. The super-high lubricating oil capacity guarantees the good lubrication and cooling for the vibra
- The vibratory pumps and vibratory motors adopt international renowned brand products to guarantee the reliability and compacting performance of the vibration system.
- The single gearshift joystick can effectively improve the working efficiency of the operator and relieve the fatigue.
- The imported comfortable and firm seat is equipped with the retractable seat belt and rubber shock-absorbing design to remarkably reduce the working strength.
- The cab is equipped with air conditioning system and the rubber damper design to isolate the operator from the vibration source to remarkably relieve the working strength.
- The double traveling drive system provides power to the front drum and rear axle to achieve outstanding control performance and traction force for the whole machine.
- Two speeds are at your choice, of which the low speed is suitable for vibratory compacting operation and climbing and the high speed can realize rapid transfer and large-range movement of the machine.
- Standard double-amplitude function expands the application scope of the equipment.
- The high span between high and low centrifugal forces helps the establishment of compacting power system schemes for different density specifications.

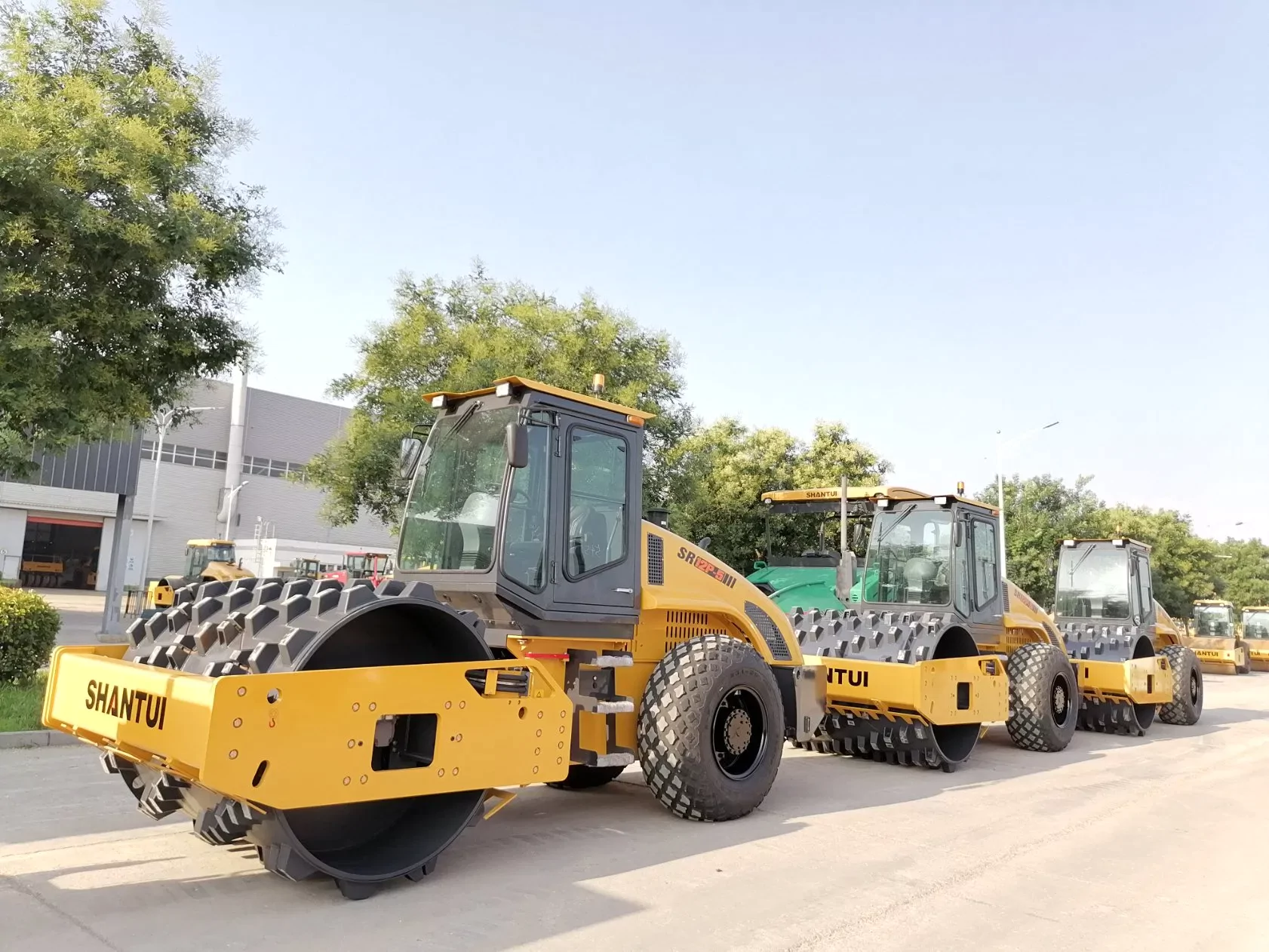

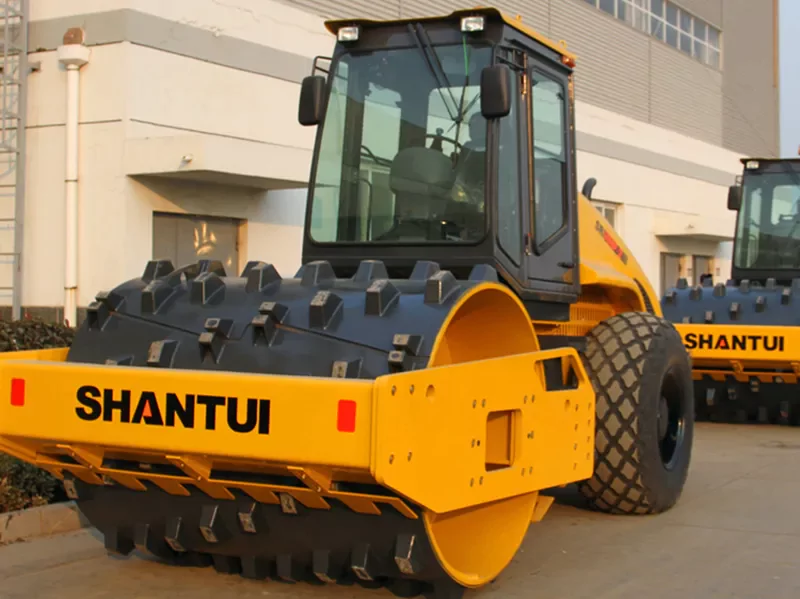

- The design of the drum vibration parameters conforms to the requirements of working site and the padfoot drum can be assembled to expand the application scope.
- Large angle openable hood, 8-point central pressure measuring system, maintenance-free battery, real-time monitoring of pressures and temperatures, and reasonable arrangement of diesel and working oil tanks enable Shantui roller to realize excellent maintenance performance, shorten the shutdown time, and improve the utilization rate of whole machine.
Parameter
| Operating weight | 12300/13450Kg |
| Axle load, front | 7100kg |
| Axle load, rear | 8250kg |
| Static linear load | 325/378N/cm |
| Engine manufacturer | Weichai |
| Engine Model | WP6G140E22 |
| Rated Power | 105Kw/2000rpm |
| Speed range(Forward)Speed (1)(2)(3)(4) | / |
| Speed range(Backward)Speed (1)(2)(3) | / |
| Vibration frequency | 33/30Hz |
| Vibration amplitude | 1.8/1.4 |
| Centrifugal force | 270/180kN |
| Working width | 2140mm |
| Max. gradeability | 48% |
| Track radius, out | / |
| Overall dimensions | 6021×2402×3127mm |
