SHANTUI SR14 Single Drum Rollers & Soil Compactors

Home Product Single Drum Roller Roller/Compactor

View larger image

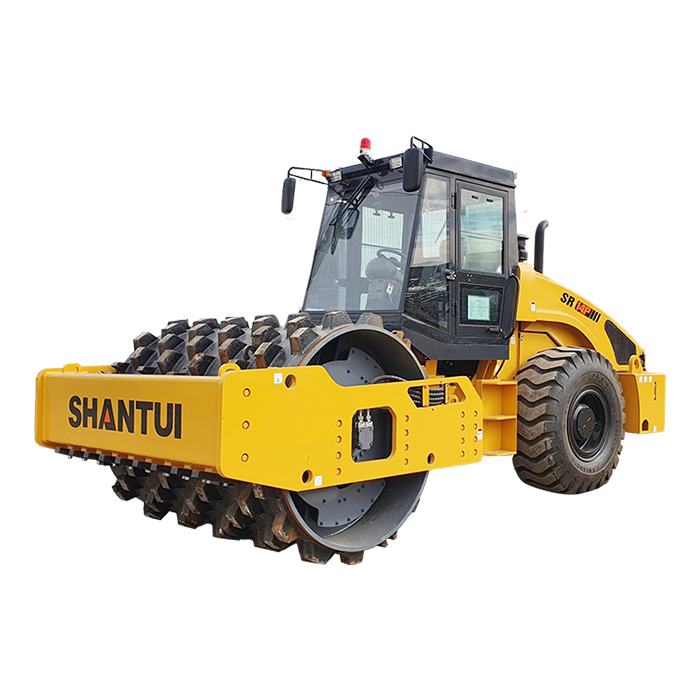

SHANTUI SR14 Single Drum Rollers & Soil Compactors

Features

Engine Model：Weichai WP6

Operating Weight: 14000Kg

Axle Load Front: /

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SR14 Single Drum Rollers & Soil Compactors

Configuration Selling Point

The Weichai WP6 engine for the roller developed by the Group matches well with Linde dual-drive traveling and vibration hydraulic systems for high efficiency, strong climbing ability and high excitation force; with the hydraulic steering and articulated frame, it is light and flexible in steering, and is easy for operation;

Ease Of Maintenance And Operation Comfort

The rear hood can be opened at a large angle for easy maintenance; the standard cab can be fitted with optional dual-purpose air conditioner for comfortable operation

Adaptability To Diverse Working Conditions

It is suitable for the compaction of the base course and sub-base course of large-scale projects such as highways, railways and airports, and can compact the non-adhesive materials and semi-adhesive materials such as sand, gravel, crushed stone, rock fill, etc. It can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions

Parameter

Operating weight	14000Kg
Axle load, front	/
Axle load, rear	/
Static linear load	/
Engine manufacturer	Weichai
Engine Model	WP6
Rated Power	105/2200kW/rpm
Speed range(Forward)Speed (1)(2)(3)(4)	0-5.5/0-10km/h
Speed range(Backward)Speed (1)(2)(3)	0-5.5/0-10km/h
Vibration frequency	30/35Hz
Vibration amplitude	/
Centrifugal force	310/200kN
Working width	/
Max. gradeability	45%
Track radius, out	6400mm
Overall dimensions	6140×2280×3080mm
