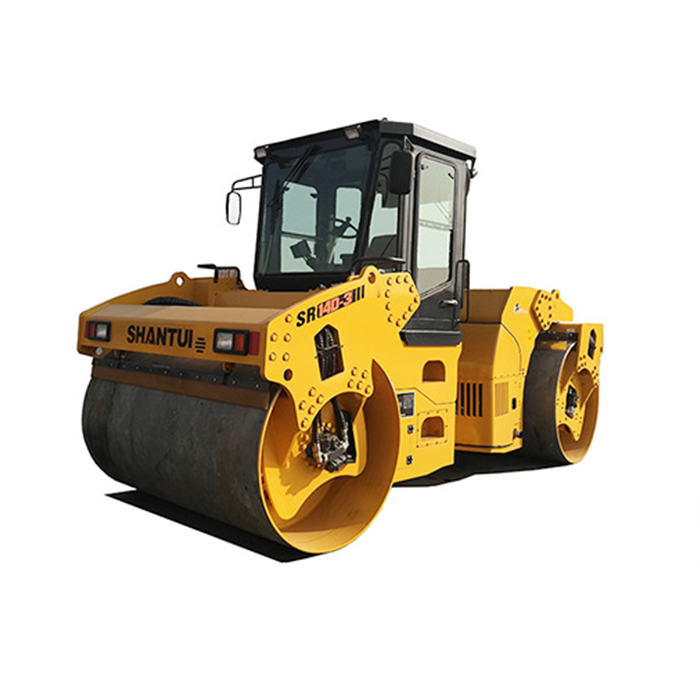

SHANTUI SR14D-3 Double Drum Rroller
VS

Features


Engine Model:Cummins QSB4.5
Operating Weight: 14000Kg
Axle Load Front:/

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

SHANTUI SR14D-3 Double Drum Rroller


Maintenance convenience
● Adopting a bird-wing engine cover design, open the wing covers on both sides, and the engine hydraulic pump is fully exposed within the operable range;
● Maintenance points and maintenance points can be carried out on the ground;
● The hydraulic oil tank is only 40L, which can save maintenance costs for users.

work efficiency
● High vibration frequency, using high frequency 67Hz, is the machine with the highest compaction efficiency;
● Electro-hydraulic control technology, using international supporting components, advanced matching design, and cutting-edge control technology, ensures reasonable starting and stopping times and uniform compaction.

driving environment
● The control panel and driver’s seat adopt an integral swivel structure and can rotate 90° left and right to improve the working field of view;
● The application of advanced CAN bus technology enables the monitoring system of the whole machine to read fault information more accurately and clearly, shortening the fault judgment time and providing guarantee for the progress of the project;
● The whole machine adopts three-level shock absorption, unique sealing, small vibration and low noise;
● Fully hydraulic drive, three-speed stepless transmission, easy to operate.

Parameter

Operating weight14000Kg
Axle load, front/
Axle load, rear/
Static linear load/
Engine manufacturerCummins
Engine ModelQSB4.5
Rated Power119/2200Kw/rpm
Speed range (1)(2)(3)0-6/0-8/0-12km/h
Vibration frequency51/67Hz
Vibration amplitude/
Centrifugal force170/112kN
Working width2130mm
Max. gradeability30%
Track radius, out/
Overall dimensions5208×2297×3060mm
