SHANTUI SR14MA Single Drum Rollers & Soil Compactors

Home Product Single Drum Roller Roller/Compactor

View larger image

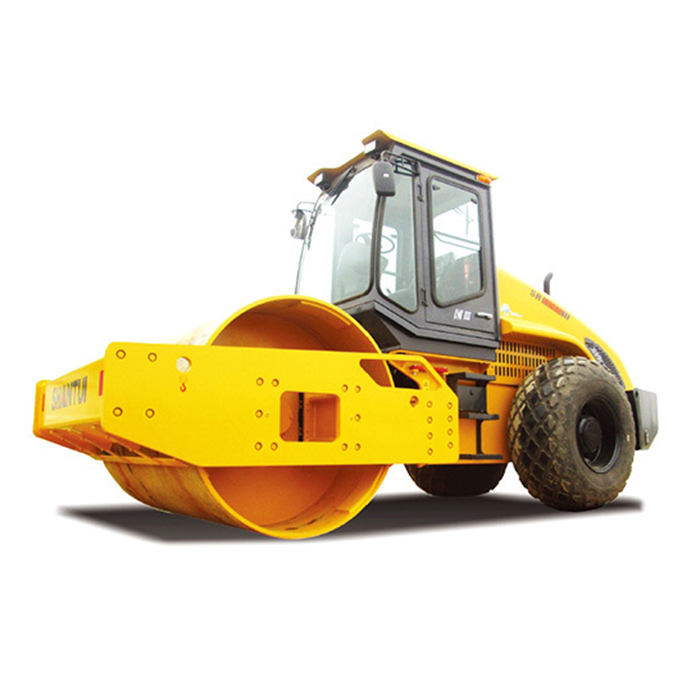

SHANTUI SR14MA Single Drum Rollers & Soil Compactors

Features

Engine Model：SDEC SC4H

Operating Weight: 14000Kg

Axle Load Front: /

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SR14MA Single Drum Rollers & Soil Compactors

SR14MA roller is a mechanically driven roller developed by Shantui, and its technology has reached the domestic advanced level. This product inherits Shantui’s more than 20 years of experience in the production of road rollers. It has excellent quality, stable and reliable performance, strong operating comfort, and convenient maintenance. It has a heavy weight, large excitation force, and high compaction efficiency. It can be applied to the foundation layer and subgrade of roadbeds. It is used to compact non-cohesive materials such as gravel, gravel, sand and gravel mixture, sandy soil and rock fill in base layer and filling projects. It can be widely used in the construction of high-grade highways, railways, airports, ports, embankments, etc. Under construction.

Parameter

Operating weight	14000Kg
Axle load, front	/
Axle load, rear	/
Static linear load	/
Engine manufacturer	SDEC
Engine Model	SC4H
Rated Power	95/2000kW/rpm
Speed range(Forward)Speed (1)(2)(3)(4)	0-2.7/0-4.7/0-10.4km/h
Speed range(Backward)Speed (1)(2)(3)	0-2.7/0-4.7km/h
Vibration frequency	30Hz
Vibration amplitude	/
Centrifugal force	290/145kN
Working width	2130mm
Max. gradeability	/
Track radius, out	/
Overall dimensions	5957×2305×3191mm
