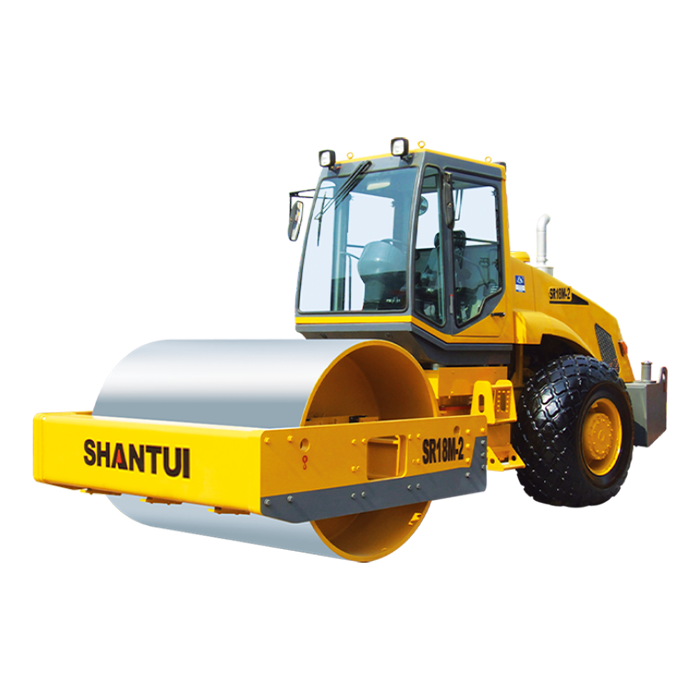

SHANTUI SR18M-2 Single Drum Rollers & Soil Compactors

Features

Engine Model：Cummins 6BTA5.9-C112

Operating Weight: 18000Kg

Axle Load Front: 9000Kg

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SR18M-2 Single Drum Rollers & Soil Compactors

Configuration Selling Point

The vibration pump and vibration motor from world famous brands are adopted to guarantee high efficiency and stable performance; the vibrating drum is designed with uniform amplitude to improve the compaction performance; the integrated gearbox with synchronous shifting feature is adopted for convenient operation.

Ease Of Maintenance And Operation Comfort

The new hexahedral cab of Shantui is adopted to offer a large driving space, good vision and comfortable operation; the hood can be opened at a large angle, and the maintenance points are arranged reasonably for easy maintenance

Adaptability To Diverse Working Conditions

It is suitable for the compaction of the base course and sub-base course of large-scale projects such as highways, railways and airports, and can compact the non-adhesive materials and semi-adhesive materials such as sand, gravel, crushed stone, rock fill, etc. It can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions

Parameter

Operating weight	18000Kg
Axle load, front	9000Kg
Axle load, rear	9000Kg
Static linear load	/
Engine manufacturer	Cummins
Engine Model	6BTA5.9-C112
Rated Power	114Kw/2000rpm
Speed range(Forward)Speed (1)(2)(3)(4)	0-2.1/0-4.1/0-8.8km/h
Speed range(Backward)Speed (1)(2)(3)	0-2.1/0-4.1km/h
Vibration frequency	28/32Hz
Vibration amplitude	2.0/1.0mm
Centrifugal force	330/240kN
Working width	2140mm
Max. gradeability	30%
Track radius, out	6100mm
Overall dimensions	5990x2315x3215mm
