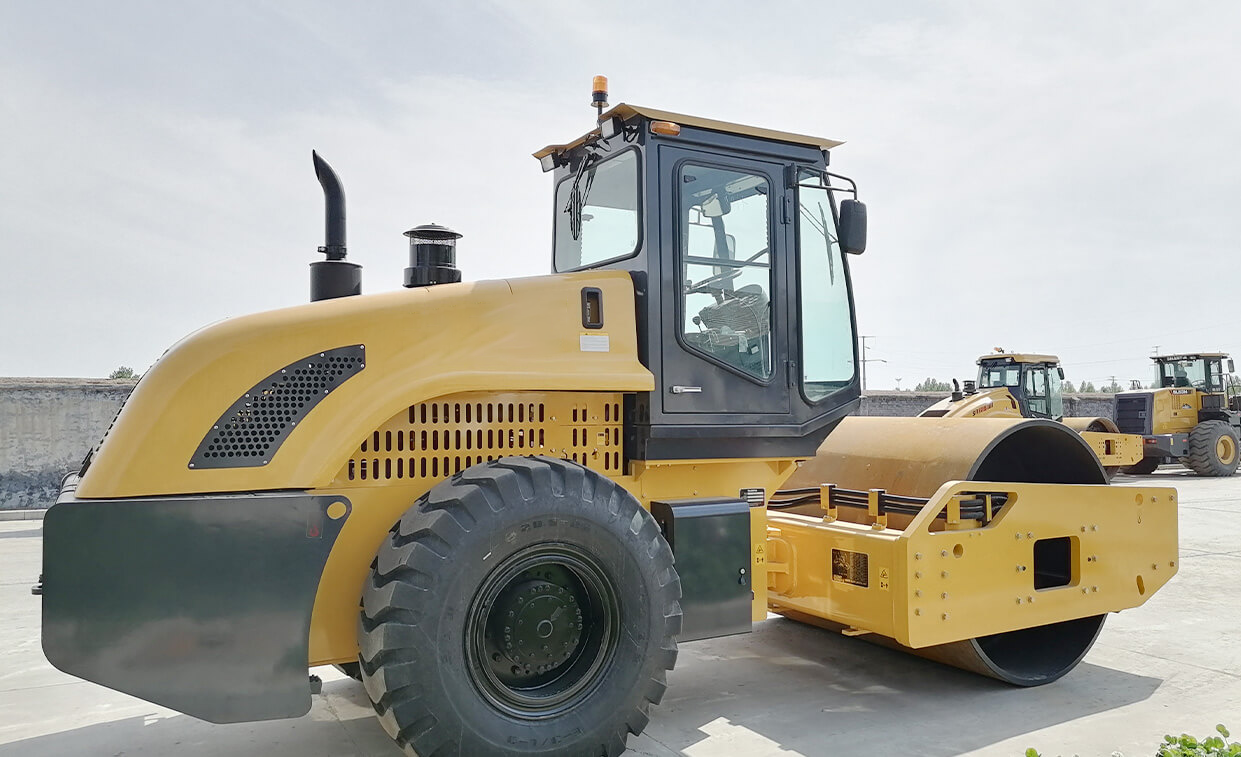

Shantui SR22MA Road Roller in Highway Construction

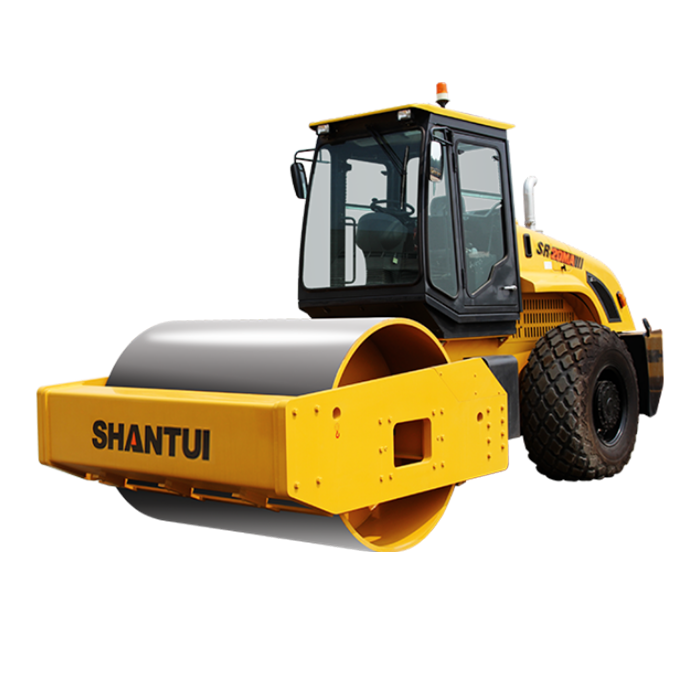

SHANTUI SR20MA Single Drum Rollers & Soil Compactors

Features

Engine Model：Weichai WP6

Operating Weight: 20000Kg

Axle Load Front: 10000Kg

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SR20MA Single Drum Rollers & Soil Compactors

Configuration Selling Point

The vibration pump and vibration motor from world famous brands are adopted to guarantee high efficiency and stable performance; the vibrating drum is designed with uniform amplitude to improve the compaction performance of the product

Ease Of Maintenance And Operation Comfort

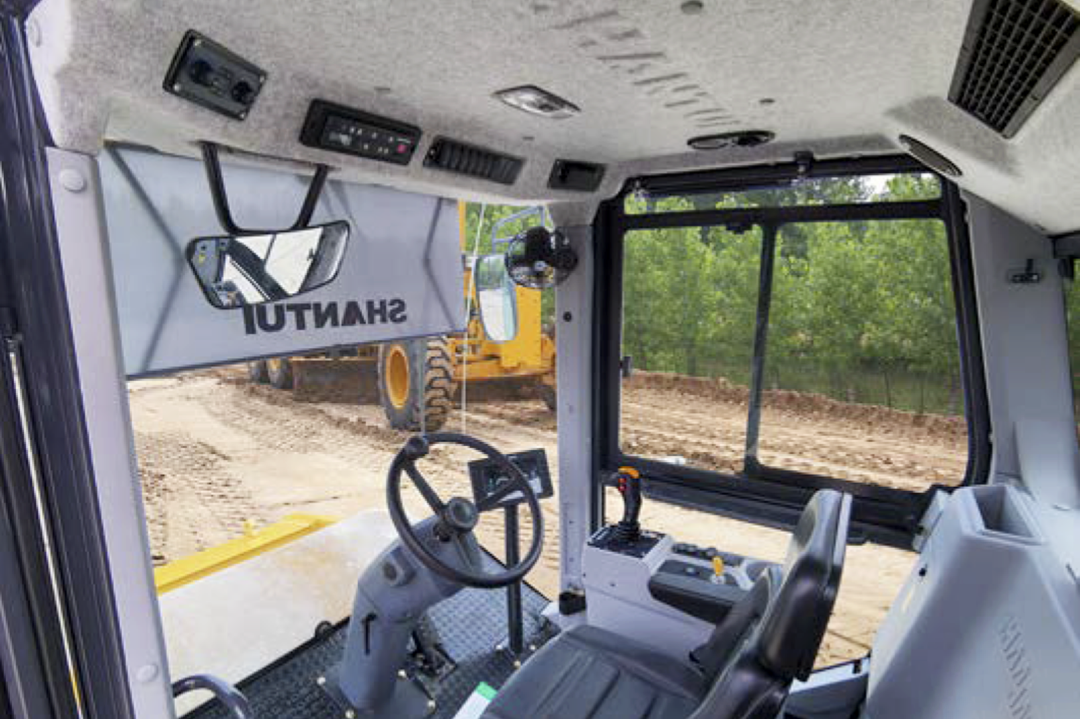

The new hexahedral cab of Shantui is adopted to offer a large driving space, good vision and comfortable operation; the filling structure for the gearbox is optimized for easy maintenance, and the hood has a large opening angle for easy maintenance

Adaptability To Diverse Working Conditions

It is suitable for the compaction of the base course and sub-base course of large-scale projects such as highways, railways and airports, and can compact the non-adhesive materials and semi-adhesive materials such as sand, gravel, crushed stone, rock fill, etc. It can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions

Parameter

Operating weight	20000Kg
Axle load, front	10000Kg
Axle load, rear	10000Kg
Static linear load	/
Engine manufacturer	Weichai
Engine Model	WP6
Rated Power	128Kw/1800rpm
Speed range(Forward)Speed (1)(2)(3)(4)	0-2.8/0-5.6/0-9.1km/h
Speed range(Backward)Speed (1)(2)(3)	0-2.8/0-5.6/0-9.1km/h
Vibration frequency	29/35Hz
Vibration amplitude	2.0/1.0mm
Centrifugal force	380/280kN
Working width	2140mm
Max. gradeability	30%
Track radius, out	6100mm
Overall dimensions	6229x2315x3180mm
