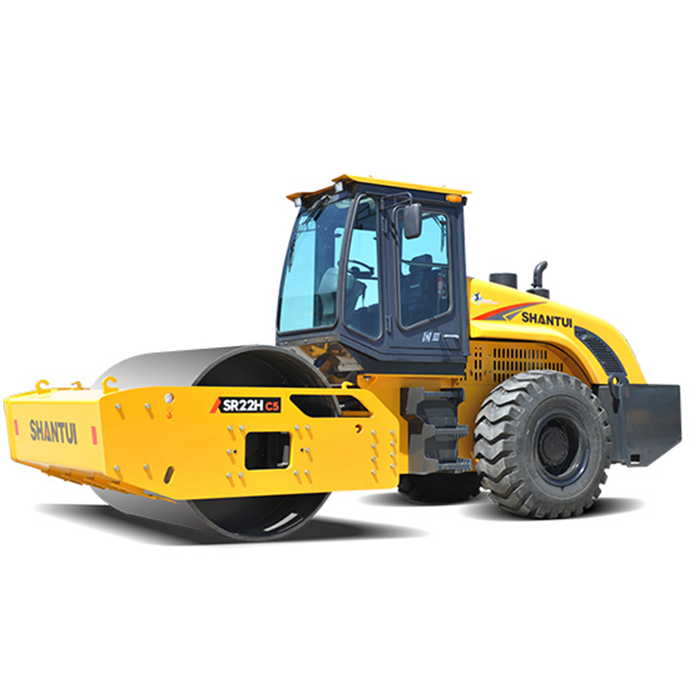

SHANTUI SR22H-C5 Single Drum Rollers & Soil Compactors

Features

Engine Model：Weichai WP6

Operating Weight: 22000Kg

Axle Load Front: /

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SR22H-C5 Single Drum Rollers & Soil Compactors

High safety and comfort

The whole machine adopts three-level shock absorption, special sealing, low vibration and low noise;
The cab dashboard, seat and control box are arranged in combination with ergonomics for comfortable operation;
Real time speed display to meet the speed regulation under different working conditions;

High flexibility and usability

The maintenance filter elements are arranged in a centralized way, and the filter elements can be replaced by opening the hood;
The engine and gearbox are inverted for easy maintenance;
The front end of the water tank is equipped with a dust-proof protective screen, which is more convenient for cleaning;
Drain oil from the engine and drain water from the water tank, which takes less time for maintenance.

Working performance

Weichai WP12 engine has good fuel economy, strong parts versatility and low maintenance cost;
Suction-type large-area radiator, effectively extending the service life of the engine and hydraulic components;
Shantui’s proprietary technology steel wheels, bearing independent lubrication, long life.

Operating cost

Exclusive matching technology can achieve high work efficiency and reasonable fuel economy, and comprehensive fuel consumption can be reduced by 8%~10%;
Imported core electric hydraulic components, high quality and reliability, reducing downtime.

Parameter

Operating weight	22000Kg
Axle load, front	/
Axle load, rear	/
Static linear load	/
Engine manufacturer	Weichai
Engine Model	WP6
Rated Power	140Kw/2200rpm
Speed range(Forward)Speed (1)(2)(3)(4)	0-5.6/0-8.8km/h
Speed range(Backward)Speed (1)(2)(3)	0-5.6/0-8.9km/h
Vibration frequency	35/29Hz
Vibration amplitude	2.0/1.0mm
Centrifugal force	410/300kN
Working width	2140mm
Max. gradeability	30%
Track radius, out	/
Overall dimensions	6388x2362x3180mm
