Feature

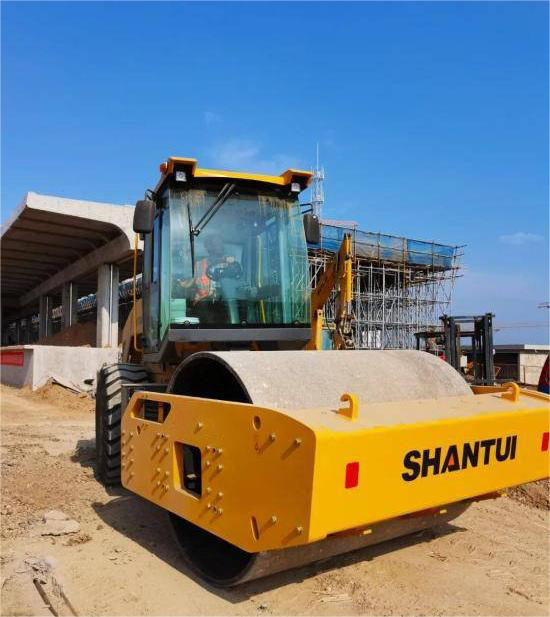

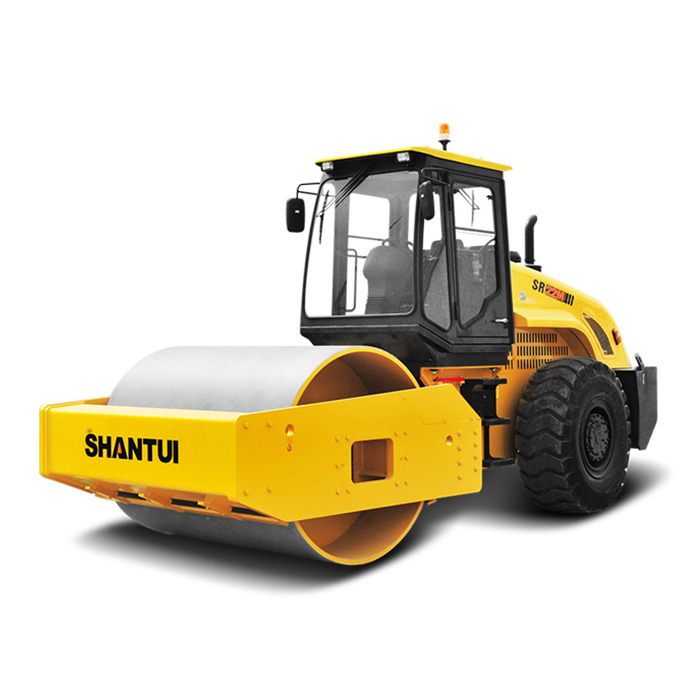

SHANTUI SR22MP Single Drum Rollers & Soil Compactors- Shantui’s patented new vibratory drum features more excellent structure and stability performances. The super-high lubricating oil capacity guarantees the good lubrication and cooling for the vibratory parts and prolong their service lives.
- The vibratory pumps and vibratory motors adopt international renowned brand products to guarantee the reliability and compacting performance of the vibration system.

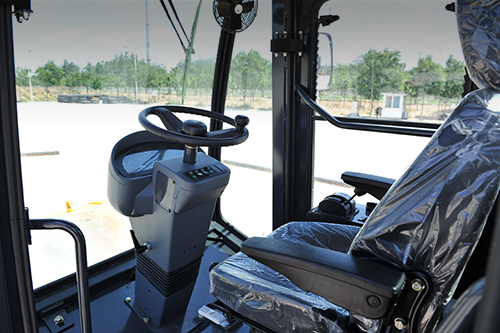

- It’s equipped with the single gearshift joystick, the imported longitudinally adjustable seat, the left and right foldable armrests, and the retractable seat belt.

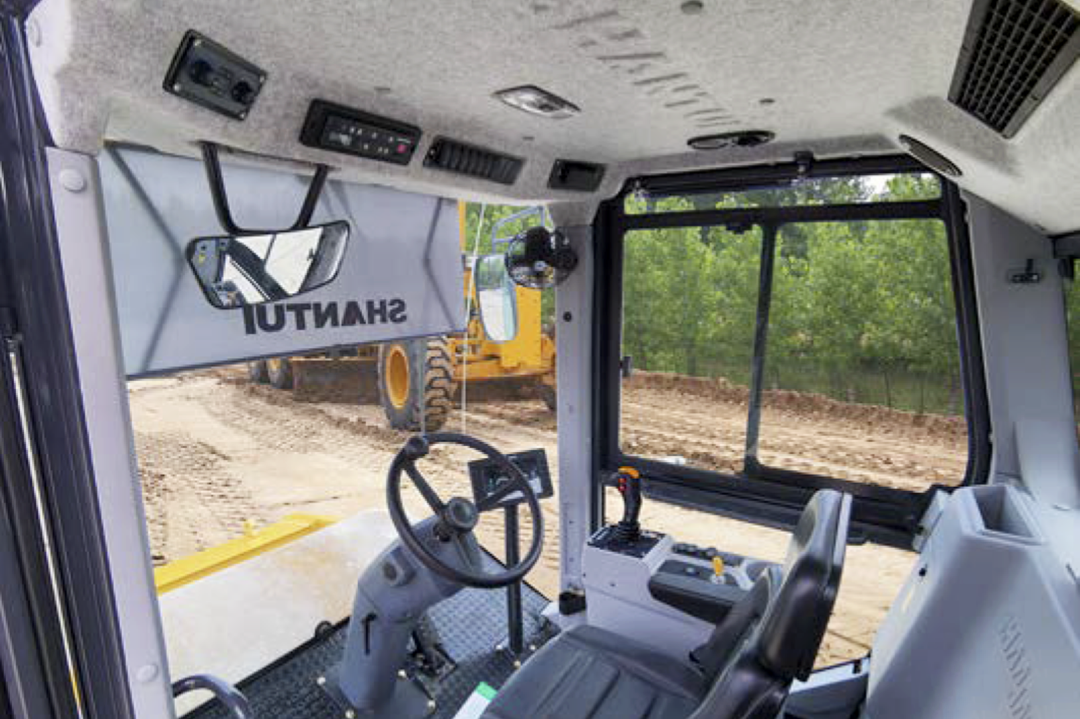

- The cab is equipped with air conditioning system to provide a comfortable working environment and the rubber damper design isolates the operator from the vibration source to remarkably relieve the working strength.
- Two independent brake systems (service brake and parking brake) feature stable braking, high safety and reliability, simple structure, and easy maintenances.
- Standard double-amplitude function expands the application scope of the equipment.
- The high span between high and low centrifugal forces helps the establishment of compacting schemes for different density specifications.
- The design of the drum vibration parameters conforms to the requirements of working site and the padfoot drum can be assembled to expand the application scope.

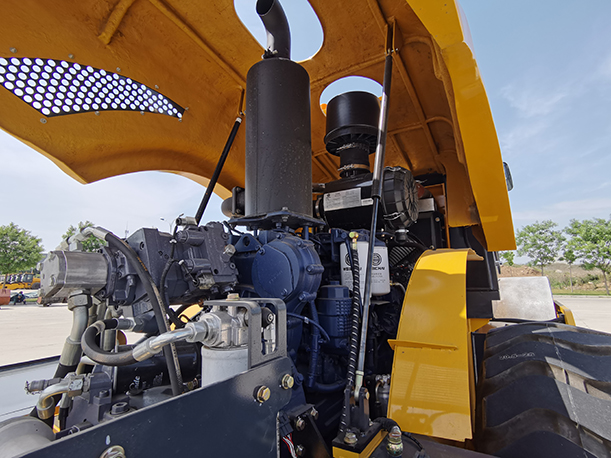

- The standard floatation tires and the optional drive tires expand the working condition adaptability of the machine. Large angle openable hood, maintenance-free battery, real-time monitoring of pressures and temperatures, and reasonable arrangement of diesel and working oil tanks enable Shantui road roller to realize excellent maintenance performance, shorten the shutdown time, and improve the utilization rate of whole machine.
Parameter
| Operating weight | 22000Kg |
| Axle load, front | 10700kg |
| Axle load, rear | 11500kg |
| Static linear load | 490/527N/cm |
| Engine manufacturer | Shangchai |
| Engine Model | SC8D185G2B1 |
| Rated Power | 136Kw/2000rpm |
| Speed range(Forward)Speed (1)(2)(3)(4) | / |
| Speed range(Backward)Speed (1)(2)(3) | / |
| Vibration frequency | 28/32Hz |
| Vibration amplitude | 0.9/0.75 |
| Centrifugal force | 395/230kN |
| Working width | 2140mm |
| Max. gradeability | 30% |
| Track radius, out | / |
| Overall dimensions | 6229×2345×3180mm |
