SHANTUI SR26H-C5 Single Drum Rollers & Soil Compactors

Features

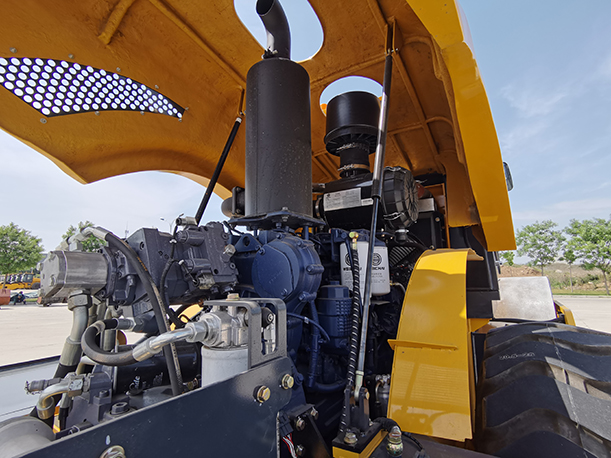

Engine Model：Weichai WP6

Operating Weight: 26000Kg

Axle Load Front: /

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

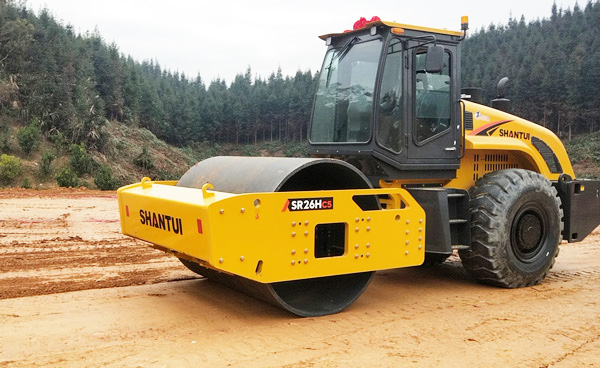

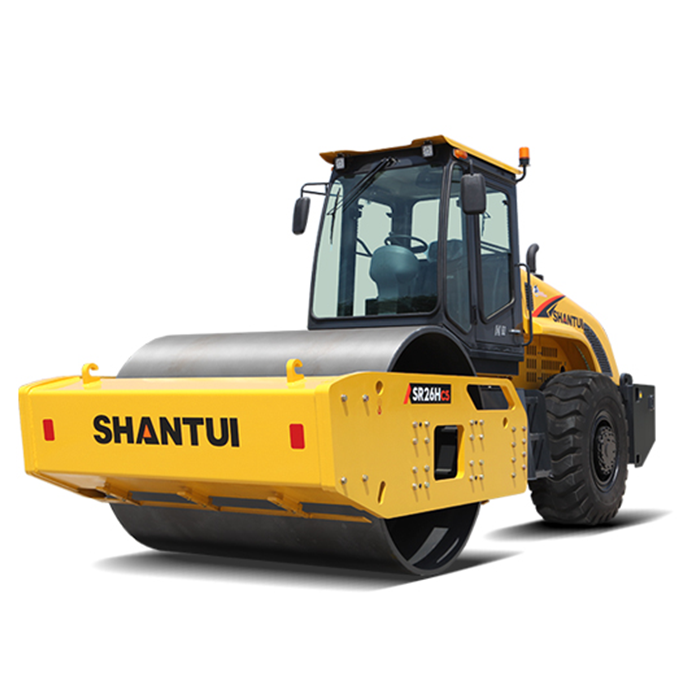

SHANTUI SR26H-C5 Single Drum Rollers & Soil Compactors

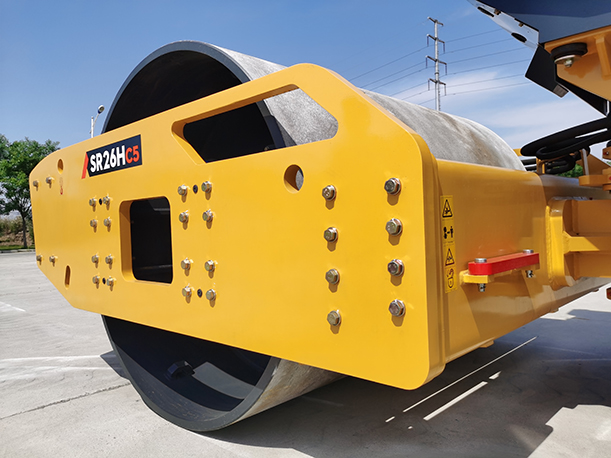

The SR26H-C5 hydraulically driven single drum vibratory roller has a hydraulically driven traveling system, high-span excitation force, and even-width designed vibrating wheels with higher operating compaction efficiency. It is suitable for base layers, sub-base layers and other materials of various materials. Compaction of fill mixtures and non-sticky materials.

Parameter

Operating weight	26000Kg
Axle load, front	/
Axle load, rear	/
Static linear load	/
Engine manufacturer	Weichai
Engine Model	WP6
Rated Power	147Kw/2000rpm
Speed range(Forward)Speed (1)(2)(3)(4)	0-4.8/0-9.5km/h
Speed range(Backward)Speed (1)(2)(3)	0-4.8/0-9.5km/h
Vibration frequency	29/35Hz
Vibration amplitude	2.0/1.0mm
Centrifugal force	435/315kN
Working width	2170mm
Max. gradeability	30%
Track radius, out	/
Overall dimensions	6567x2412x3180mm
