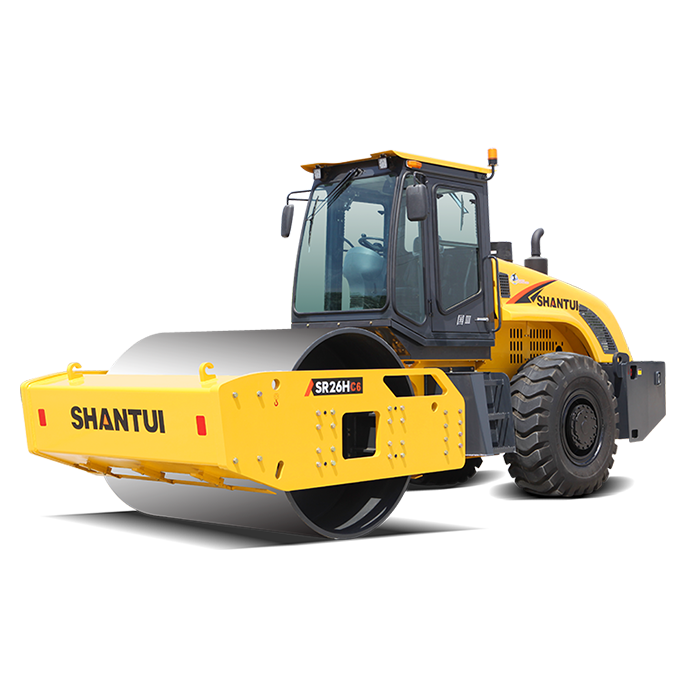

SHANTUI SR26H-C6 Single Drum Rollers & Soil Compactors

Features

Engine Model：Weichai

Operating Weight: 26000Kg

Axle Load Front: 13000Kg

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SR26H-C6 Single Drum Rollers & Soil Compactors

Configuration Selling Point

The power curve of Weichai WP6 engine for the roller with developed by the Group matches well with that of the Linde hydraulic system for fuel saving and high efficiency, so that the roller has high traveling speed and quick vibration response; the non-impact vibrating drum effectively improves the reliability of the vibration system, and the high and low vibration amplitudes can be switched easily with no need to stop the vibration, and the excitation force is large

Ease Of Maintenance And Operation Comfort

The brand new large cab is well enclosed to reduce the noise to be less than 80db; the excellent three-stage shock absorption system effectively mitigates the fatigue of the operator; the maintenance points are centrally arranged, the filter elements of each system can be replaced easily, the hood can be opened at a large angle, it is convenient to observe the oil level and water level of oil tank and water tank with help of the oil dipstick and the water level indicator, and the oil drain port and water outlet are led outward for easier maintenance

Adaptability To Diverse Working Conditions

It is suitable for the compaction of the base course and sub-base course of large-scale projects such as highways, railways and airports, and can compact the non-adhesive materials and semi-adhesive materials such as sand, gravel, crushed stone, rock fill, etc. It can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions

Parameter

Operating weight	26000Kg
Axle load, front	13000Kg
Axle load, rear	13000Kg
Static linear load	/
Engine manufacturer	Weichai
Engine Model	/
Rated Power	147Kw/2000rpm
Speed range(Forward)Speed (1)(2)(3)(4)	0-5/0-9.5km/h
Speed range(Backward)Speed (1)(2)(3)	0-5/0-9.5km/h
Vibration frequency	28/32Hz
Vibration amplitude	2.0/1.0mm
Centrifugal force	435/315kN
Working width	2170mm
Max. gradeability	30%
Track radius, out	7000mm
Overall dimensions	6848x2472x3370mm
