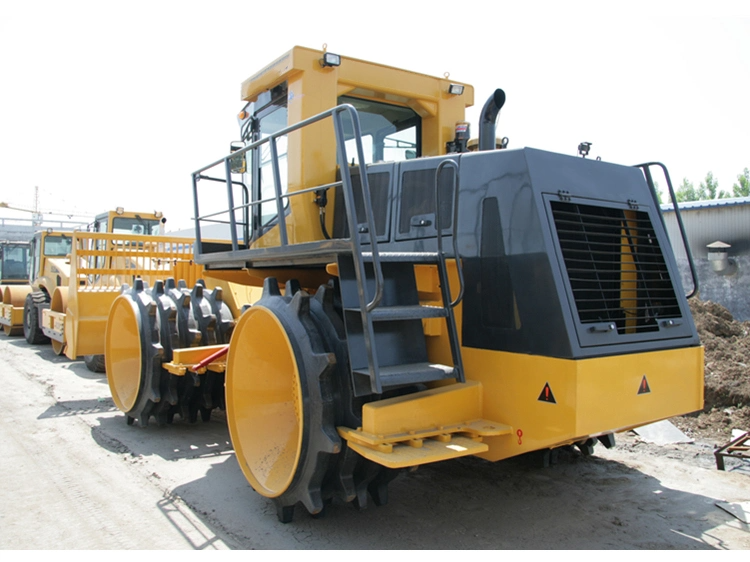

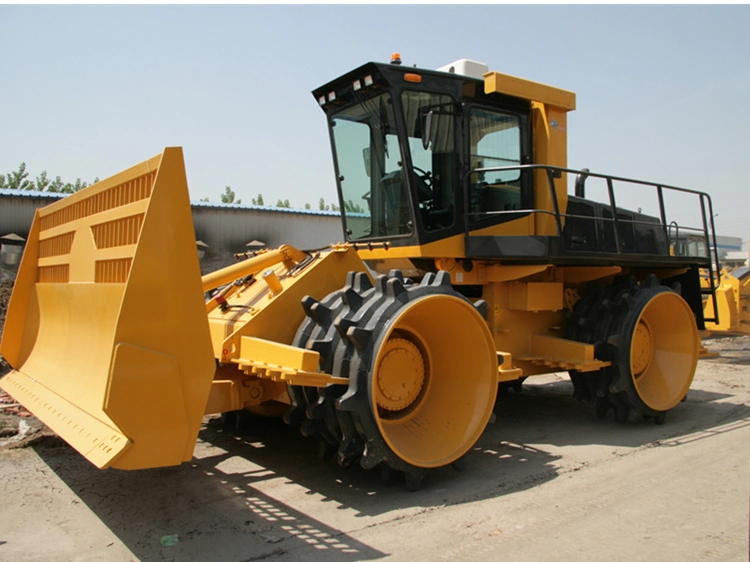

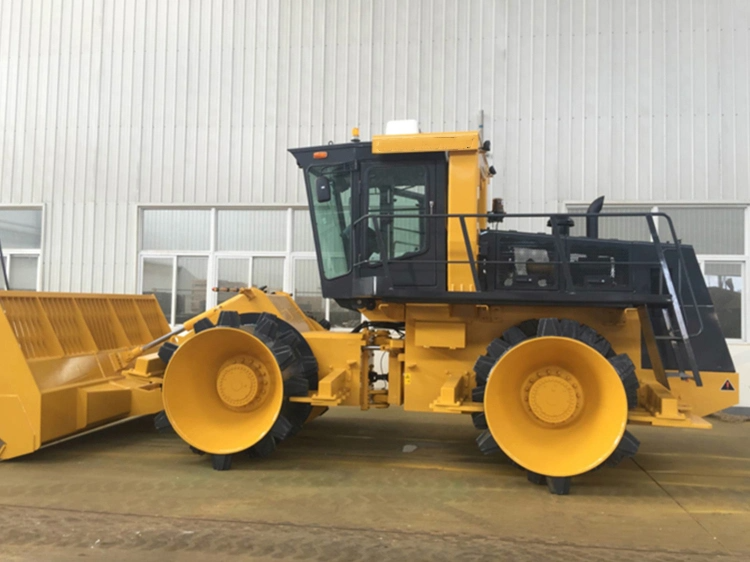

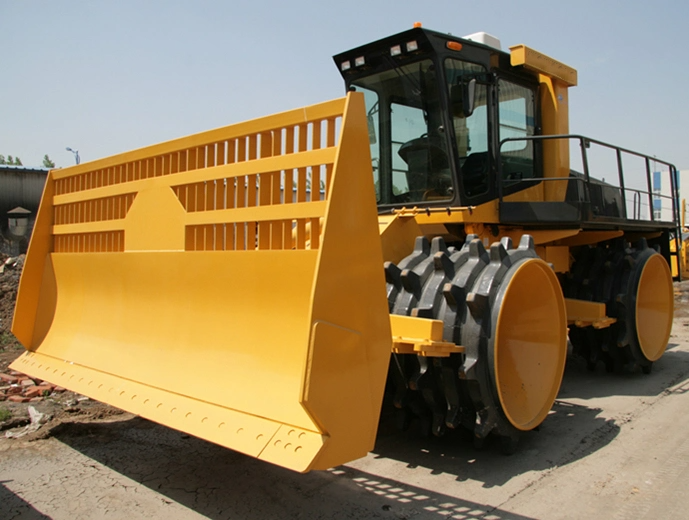

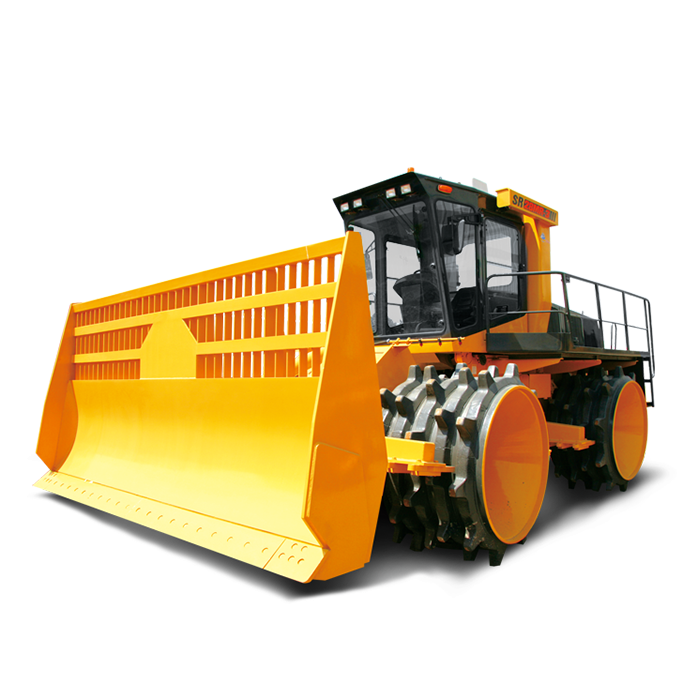

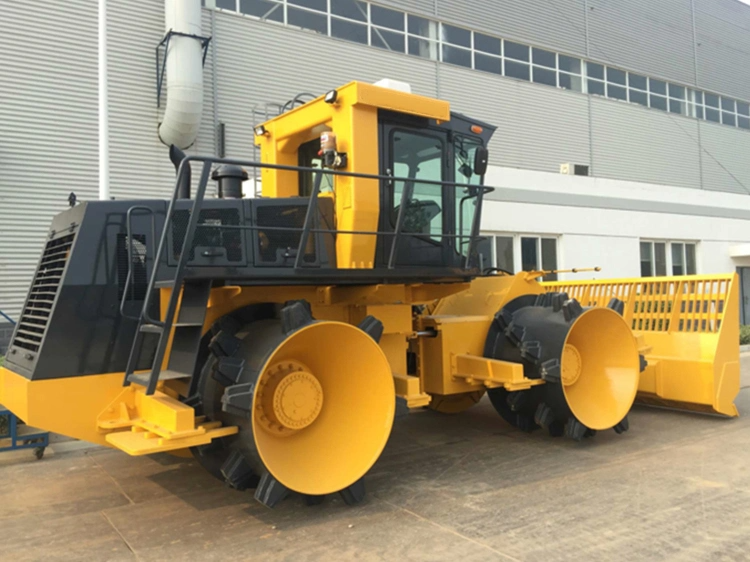

SHANTUI SR28MR-3 Landfill Compactor
VS


Engine Model:Weichai WP10G240
Operating Weight: 28000kg
Axle Load Front:14000kg

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

SHANTUI SR28MR-3 Fefuse Compactor


High operating comfort

● The proprietary match technology and the optimal power curve can achieve high operating efficiency and reasonable fuel economy and reduce the composite fuel consumption by 5%~8%.

● The core electric and hydraulic parts of imported brands guarantee high reliability and reduce the malfunction downtime.

● High value maintenance.

High maintenance convenience

● The design of automatic centralized lubrication eases the user’s maintenances and the rear hood adopts combination openable structure and the cab can be tilted for 50° to promote the repair and maintenance convenience.

● The connection between blade and front frame adopts unique seat bolted cover and ball joint to ease the assembling, which can be easily replaced if worn.

Working performance

● The installed Weichai China-III electronic control engine can maintain the machine under best working status with strong power to ensure the compacting quality and high efficiency and energy-saving.

● The hydro-mechanically driven power drive system is professionally designed and precisely manufactured specially for severe waste treatment environment and provide higher productivity.

● The high capacity blade can bulldoze the waste during the compacting to improve the operating efficiency.

● The professionally designed compacting drum guarantees the effective compacting and crushing of the waste. The compacting teeth are made of corrosion-resistant and wear-resistant material to prolong the life of compacting drum.

Operating cost

● The proprietary match technology and the optimal power curve can achieve high operating efficiency and reasonable fuel economy and reduce the composite fuel consumption.

● The core electric and hydraulic parts of imported brands guarantee high reliability and reduce the malfunction downtime.

● High value maintenance.

Parameter

Operating weight28000 kg
Axle load, front14000kg
Axle load, rear14000kg
Static linear load/
Engine manufacturerWeichai
Engine ModelWP10G240
Rated Power178/2200kW/rpm
Speed range(Forward)Speed (1)(2)(3)(4)0-4.4/0-6.8/0-10km/h
Speed range(Backward)Speed (1)(2)(3)0-4.4/0-6.8km/h
Vibration frequency/
Vibration amplitude/
Centrifugal force/
Working width3520mm
Max. gradeability100%
Track radius, out7250mm
Overall dimensions7930×3660×3960mm
