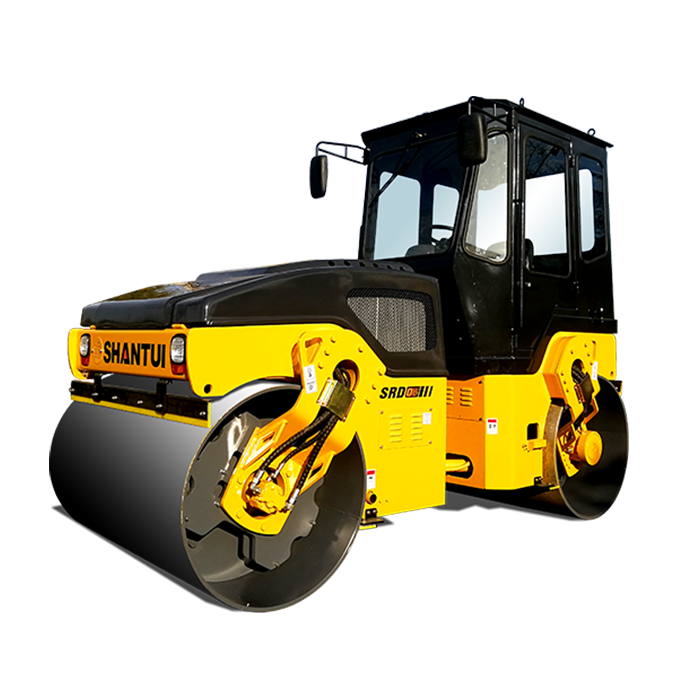

SHANTUI SRD06 Tandem Compactor

Home Product Roller/Compactor Compactors

View larger image

SHANTUI SRD06 Tandem Compactor

Features

Engine Model：Quanchai

Operating Weight： 6000Kg
Axle Load Front：/

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SRD06 Tandem Compactor

Configuration Selling Point

The hydraulic two-wheel drive is adopted for good driving performance and excellent compaction performance; with the two-wheel vibration, single frequency & single amplitude, and electronically-controlled vibration excitation; with the hydraulic steering and articulated frame, it is light and flexible in steering;

Ease Of Maintenance And Operation Comfort

The anti-corrosion water tank and electronically-controlled water sprinkler system are coupled to ensure the safe and reliable operation, and the front hood can be opened at a large angle for easy maintenance;

Adaptability To Diverse Working Conditions

It is suitable for the compaction and repair of asphalt surface courses of pavements, such as graded roads, airports, urban roads, intercity roads, county/township roads, stadiums and other industrial sites.

Parameter

Operating weight	6000Kg
Axle load, front	/
Axle load, rear	/
Static linear load	197N/cm
Engine manufacturer	Quanchai
Engine Model	/
Rated Power	59kw/2400rpm
Speed range (1)(2)(3)	0-5.5/0-11km/h
Vibration frequency	48Hz
Vibration amplitude	0.6mm
Centrifugal force	60KN
Working width	/
Max. gradeability	30%
Track radius, out	5300mm
Overall dimensions	3370×1670×2580mm
