SHANTUI SRD12 Tandem Compactor

Home Product Roller/Compactor Compactors

View larger image

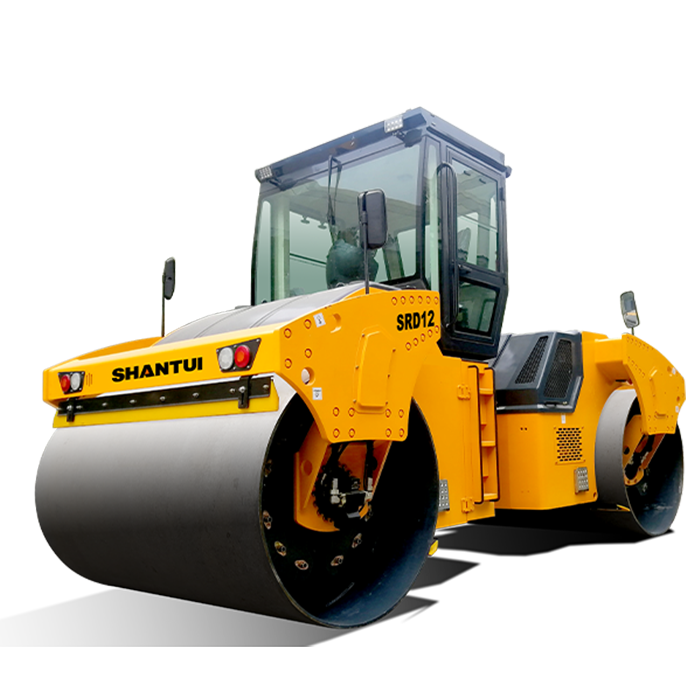

SHANTUI SRD12 Tandem Compactor

Features

Engine Model：Cummins

Operating Weight： 12000Kg
Axle Load Front：/

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SRD12 Tandem Compactor

Configuration Selling Point

The special engine matches well with the hydraulic system for high efficiency, and the hydraulic dual drive ensures uniform compaction; with dual amplitude & dual vibration, the electronically-controlled vibration start can be switched freely; with the hydraulic steering and articulated frame, it is light and flexible in steering;

Ease Of Maintenance And Operation Comfort

The anti-corrosion water tank with large capacity is connected to supply water for intermittent sprinkling; the rear hood on both sides can be opened at a large angle for easy maintenance; the console and seat can be rotated to left and right by 90° for easy observation of edge compaction;

Adaptability To Diverse Working Conditions

It is suitable for the compaction and repair of asphalt surface courses of pavements, such as graded roads, airports, urban roads, intercity roads, county/township roads, stadiums and other industrial sites.

Parameter

Operating weight	12000Kg
Axle load, front	/
Axle load, rear	/
Static linear load	276N/cm
Engine manufacturer	Cummins
Engine Model	/
Rated Power	93kw/2200rpm
Speed range (1)(2)(3)	0-5.5/0-11km/h
Vibration frequency	42/52Hz
Vibration amplitude	0.75/0.35mm
Centrifugal force	130/85KN
Working width	/
Max. gradeability	35%
Track radius, out	6800mm
Overall dimensions	5150×2300×3100mm
