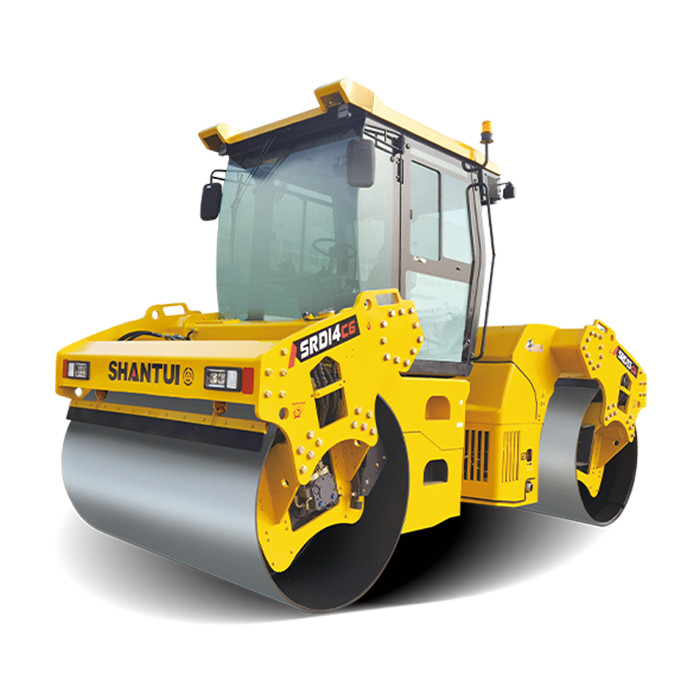

SHANTUI SRD14-C6 Tandem Compactor

Home Product Roller/Compactor Compactors

View larger image

SHANTUI SRD14-C6 Tandem Compactor

Engine Model：Cummins QSB4.5

Operating Weight： 14000 kg

Axle Load Front：/

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SRD14-C6 Tandem Compactor

Configuration Selling Point

The special high-power engine matches well with Linde hydraulic system, which realizes high vibration efficiency, and fast vibration start; the non-impact vibrating drum is adopted for flat and uniform compaction; with “soft”, “relative soft” and “hard” modes of programmed flexible start/stop, it starts and stops smoothly;

Ease Of Maintenance And Operation Comfort

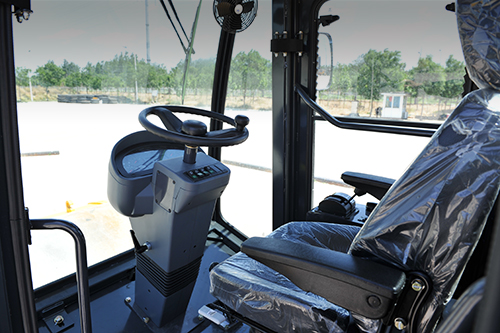

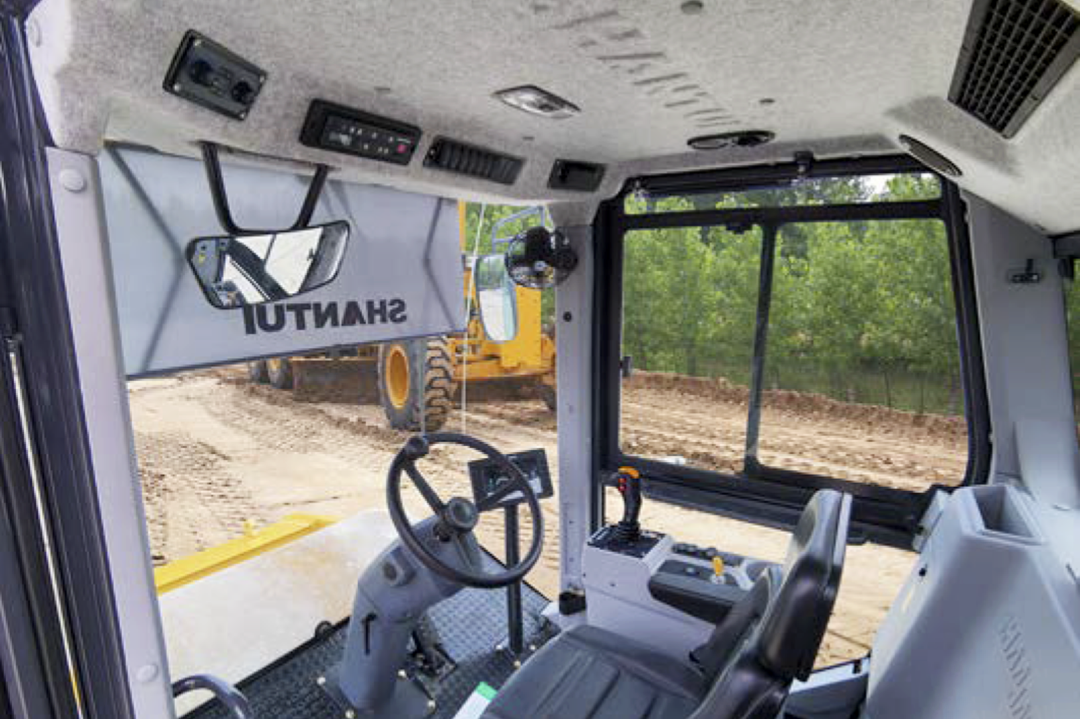

The driving platform can rotate by 180°, which is convenient and comfortable control and driving; all joints are of lubrication-free design, the engine and hydraulic filter elements, and oil drain ports are led outward, and the water outlet of water tank is low, so that people can maintain it while standing on the ground;

Adaptability To Diverse Working Conditions

It is suitable for the compaction and repair of asphalt surface courses of pavements, such as graded roads, airports, urban roads, intercity roads, county/township roads, stadiums and other industrial sites.

Parameter

Operating weight	14000 kg
Axle load, front	/
Axle load, rear	/
Static linear load	322N/cm
Engine manufacturer	Cummins
Engine Model	QSB4.5
Rated Power	119/2200kW/rpm
Speed range(Forward)Speed (1)(2)(3)(4)	0-6/0-11km/h
Speed range(Backward)Speed (1)(2)(3)	0-6/0-11km/h
Vibration frequency	40/50 Hz
Vibration amplitude	0.8/0.35mm
Centrifugal force	140/90KN
Working width	2130mm
Max. gradeability	35%
Track radius, out	6700mm
Overall dimensions	5100×2280×3260mm
