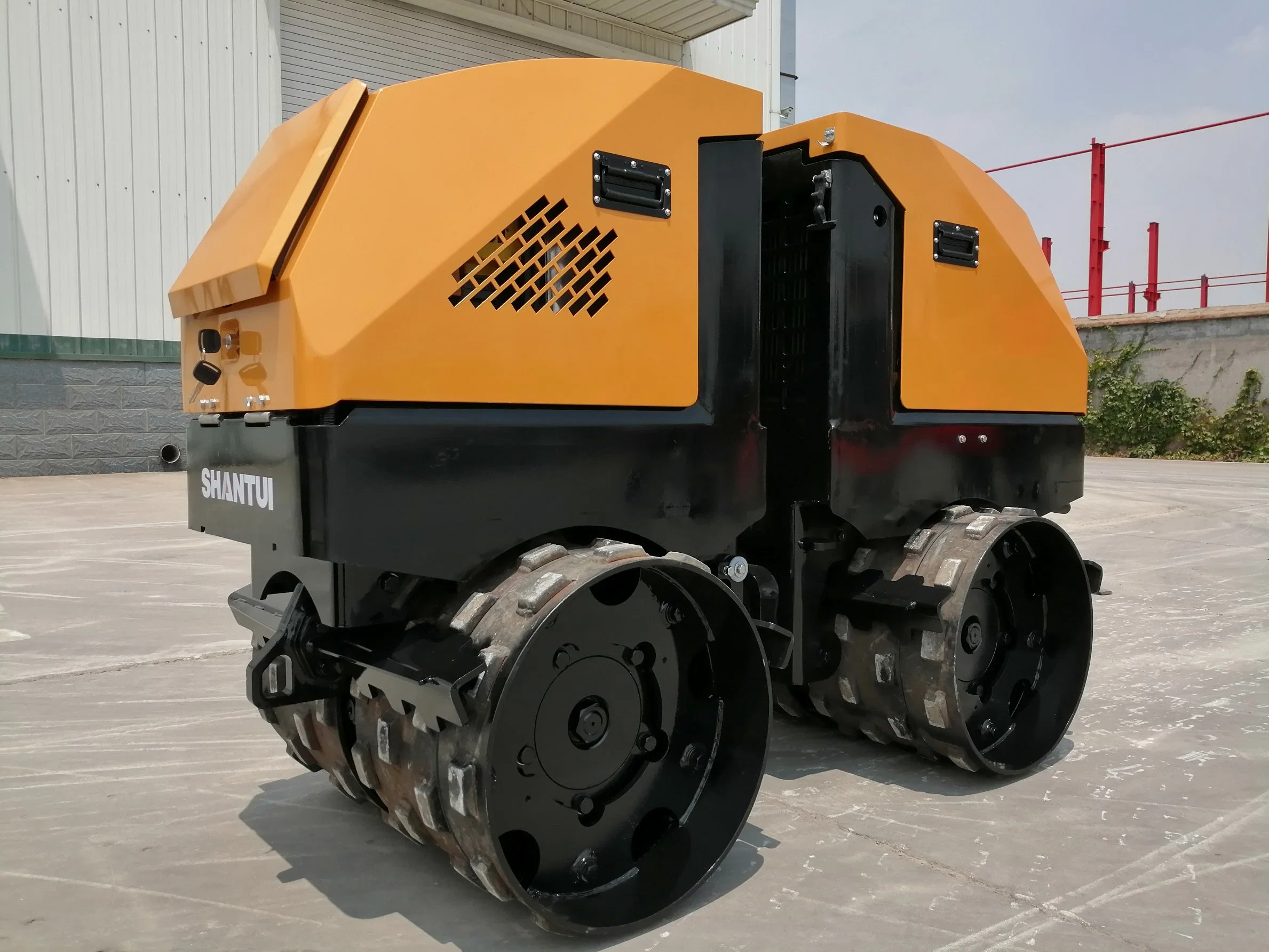

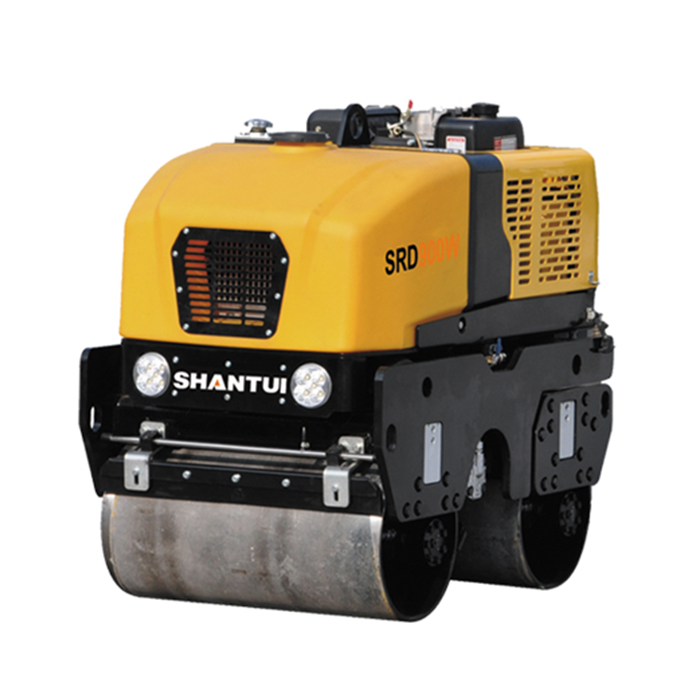

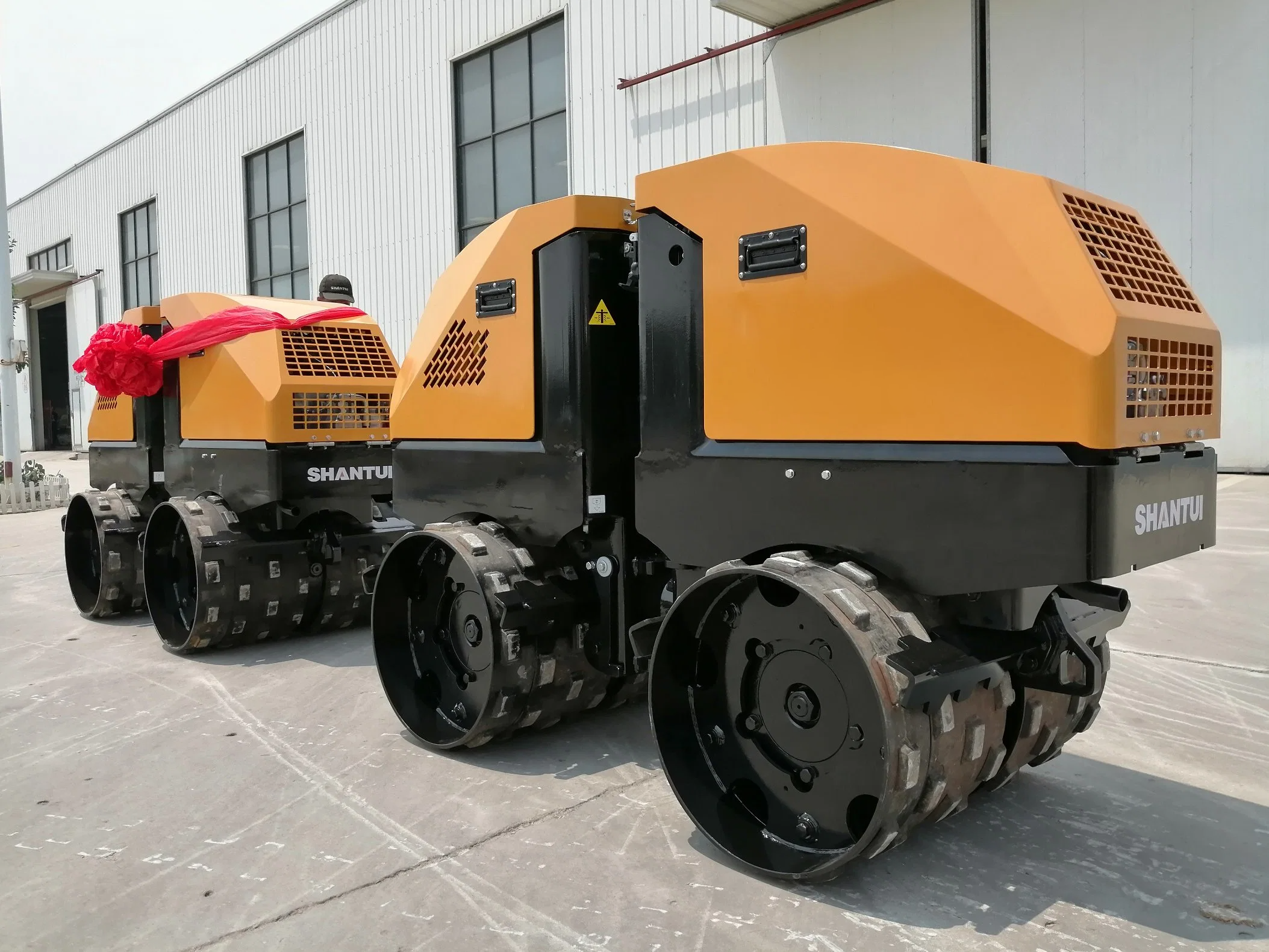

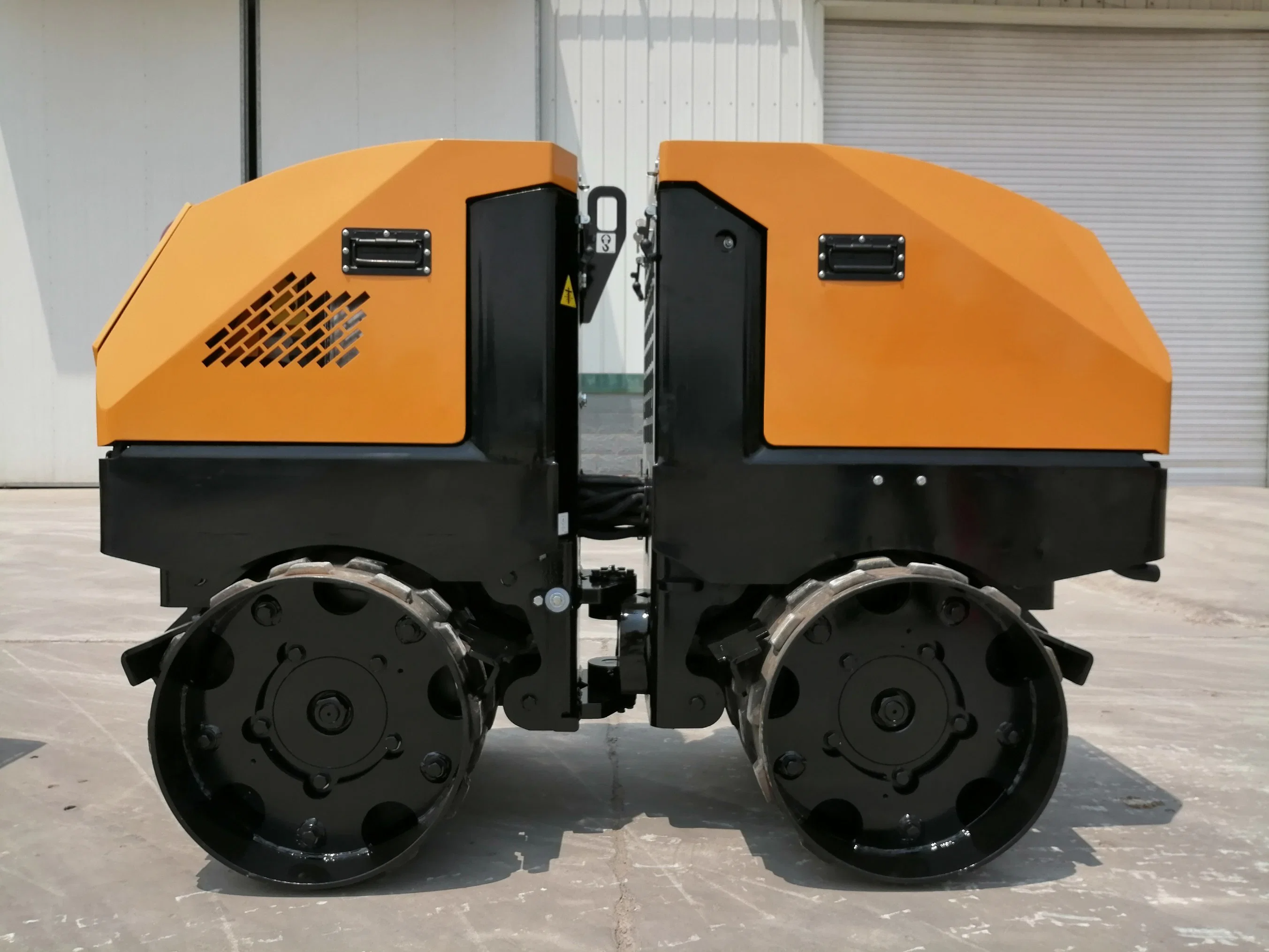

SHANTUI SRD900W Mini Compactor
VS


Engine Model:Changchai 186F/B&S 25T2
Operating Weight: 870kg
Axle Load Front:/

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

SHANTUI SRD900W Mini Compactor


1. Remote control

● Reliable radio remote control eliminates problems caused by intense light or the simultaneous use of other machines

2. High flexibility and usability

●Multi-purpose compactor achieves outstanding compaction result at various site condition , compaction in trenches,sewers or pipeline construction
●The working width can be easily changed between 600 and 850mm with the drum extention

3. Hydraulic system

● World leading hydrostatic driving system guarantees stepless speed control to achieve outstanding compaction result
●The hydraulic articulated steering system features flexible motions and effectively adapts to diversified working conditions.

4. Engine

●Equipped with changchai engine, stronger power with less fuel consumption
●B&S 25T2 engine is optional

Parameter

Operating weight870kg
Axle load, front/
Axle load, rear/
Static linear load/
Engine manufacturerChangchai
Engine Model186F/B&S 25T2
Rated Power8/3600 or 13.5/3600Kw/rpm
Speed range(Forward)Speed (1)(2)(3)(4)0-3.6km/h
Speed range(Backward)Speed (1)(2)(3)0-3.6km/h
Vibration frequency60Hz
Vibration amplitude0.5mm
Centrifugal force20KN
Working width680mm
Max. gradeability30%
Track radius, out/
Overall dimensions1120×680×1110mm
