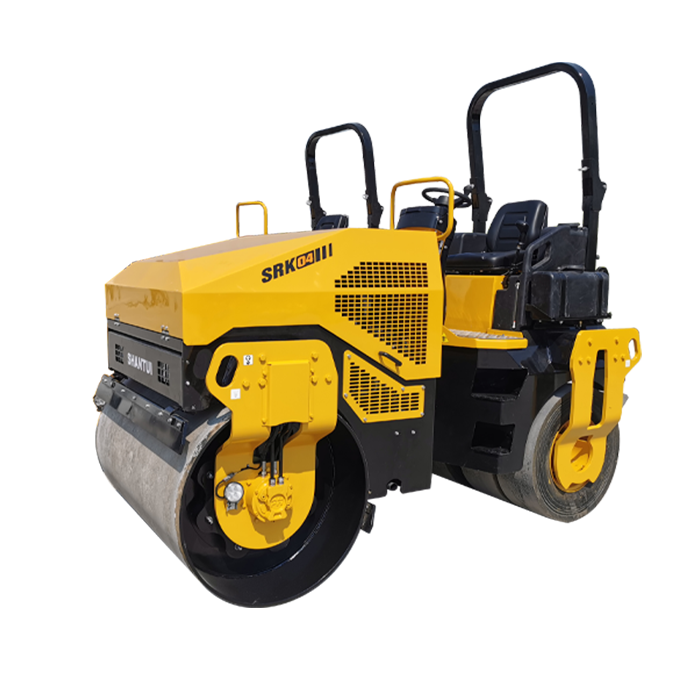

SHANTUI SRK04 Mini Compactor

Home Product Roller/Compactor Compactors

View larger image

SHANTUI SRK04 Mini Compactor

Features

Engine Model：Yanmar

Operating Weight： 4000Kg

Axle Load Front：/

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SRK04 Mini Compactor

Configuration Selling Point

The special engine matches well with the hydraulic system for high efficiency; with dual-drive traveling and stepless speed change, it has reliable performance; the wide-base smooth tread tires guarantee the excellent compaction effect

Ease Of Maintenance And Operation Comfort

The large water tank extends the work duration; the electronically-controlled sprinkler and vibration buttons are integrated into the handle for comfortable operation; the maintenance points of the engine and hydraulic filter elements are arranged reasonably, and the hood can be opened for easy maintenance.

Adaptability To Diverse Working Conditions

It is suitable for compaction and repair of base course and asphalt surface course of general pavements such as urban roads, intercity roads, rural roads, water conservancy projects, stadiums and other industrial sites

Parameter

Operating weight	4000Kg
Axle load, front	/
Axle load, rear	/
Static linear load	150N/cm
Engine manufacturer	Yanmar
Engine Model	/
Rated Power	35/3000Kw/rpm
Speed range (1)(2)(3)	0-12km/h
Vibration frequency	60Hz
Vibration amplitude	0.5mm
Centrifugal force	40kN
Working width	/
Max. gradeability	40%
Track radius, out	/
Overall dimensions	2850×1520×2200mm
