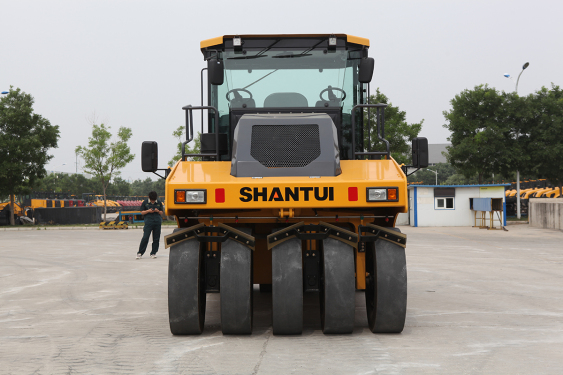

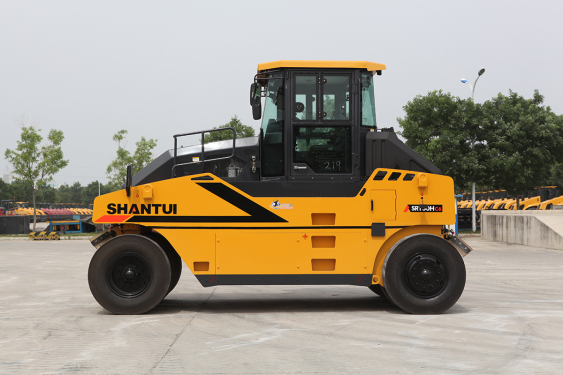

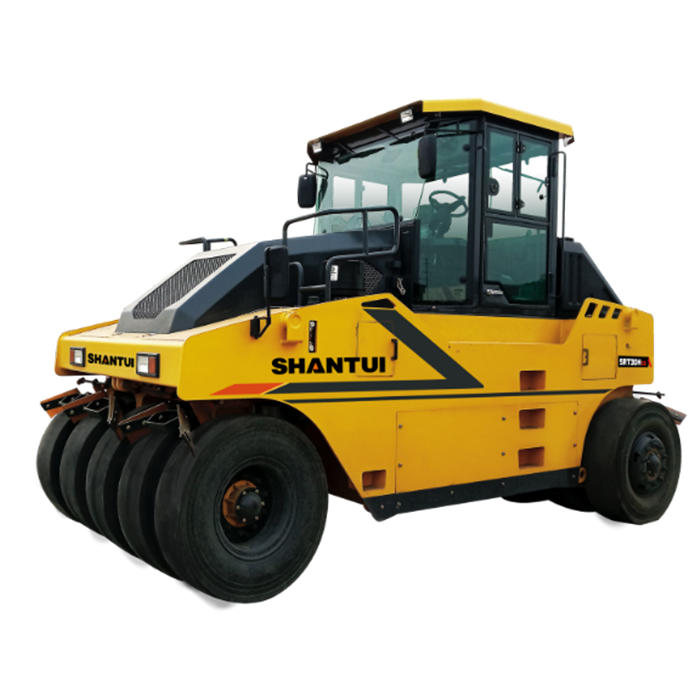

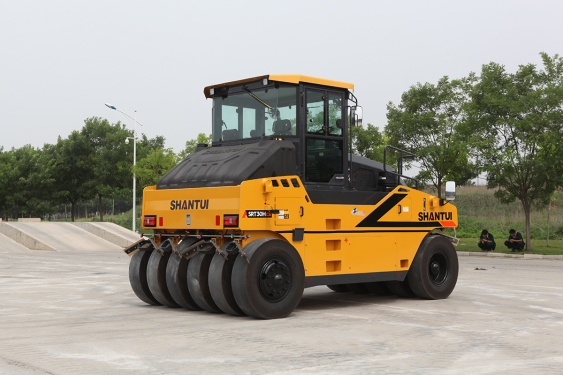

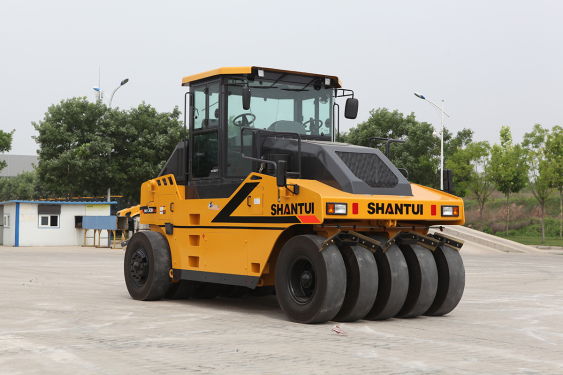

SHANTUI SRT30H-C6 Tyre Compactor

Home Product Roller/Compactor Compactors

View larger image

SHANTUI SRT30H-C6 Tyre Compactor

Engine Model：Weichai

Operating Weight： 30000 kg

Axle Load Front：/

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

SHANTUI SRT30H-C6 Tyre Compactor

Configuration Selling Point

With hydraulic drive, it starts and stops smoothly with small impact, and has high compaction quality; the front wheel with swaying structure guarantees uniform compaction; the four-stage braking system is safe and reliable; the rotational molded water tank has high cleanliness and is not prone to blockage;

Ease Of Maintenance And Operation Comfort

The handle, switch, seat and steering wheel are integrated for easy operation and in accordance with ergonomics; the hydraulic filter elements, water pump, air reservoir, battery, air filter, etc. can be maintained by opening the hood, and the lubrication points are led outward for easy maintenance.

Adaptability To Diverse Working Conditions

It’s suitable for the compacting operations of diversified materials, including lime-ash soil, water stabilizing material, and asphalt, and can meet the demands of diversified construction conditions, including plains and mountainous regions.

Parameter

Operating weight	30000 kg
Axle load, front	/
Axle load, rear	/
Static linear load	/
Engine manufacturer	Weichai
Engine Model	/
Rated Power	147/2000kW/rpm
Speed range(Forward)Speed (1)(2)(3)(4)	0-6/0-13km/h
Speed range(Backward)Speed (1)(2)(3)	0-6/0-13km/h
Vibration frequency	/
Vibration amplitude	/
Centrifugal force	/
Working width	2750mm
Max. gradeability	22%
Track radius, out	8800mm
Overall dimensions	4920×2915×3410mm
