View larger image
Kerb/GVW: 14350/31000Kg
Driving type：8×4
Output Power ：371Hp
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

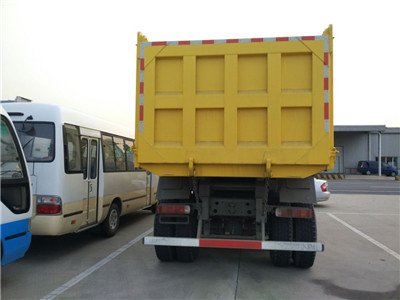

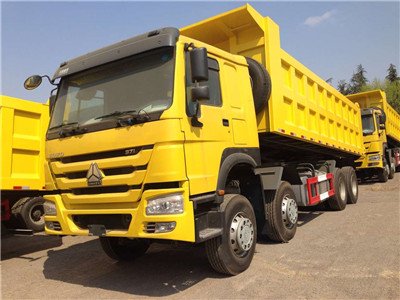

Sinotruk 371hp Howo 8×4 Dump Truck
Drive type: 8×4
Cab: HW70/HW76 standard cab without/WITH sleeper beds, with A/C
Engine: Weichai brand WD615.69
Type: 6-cylinder in-line with water cooling, supercharging & intercooling
Displacement: 9.726L
Engine output: 371hp /2200 rpm
Max. torque: 1350 NM /1300-1600rpm
Transmission (gear box): HW15710, 10 speed transmission
Clutch: D430 Diaphragm type
Steering: ZF8098
Front axle: HF9 drum type, 9tons
Rear axle: HC16 double reduction
Ratio=5.73
Fuel tank: 300L
Tire: 12.00R20, 12
Kerb. mass: 14350kg
Total mass: 31000kg
Rated payload: 16520kg
Max. speed (km/h): 75
Max. gradeability(%): 52
Approach/departure angle: 19/28 degree
Overall dimension(mm): 9077x2496x3453
Wheel base (mm): 1800+2800+1350
Front/rear overhang (mm): 1500/1627
Front /rear wheel track(mm): 2022/1850
Minimum ground clearance(mm): 314

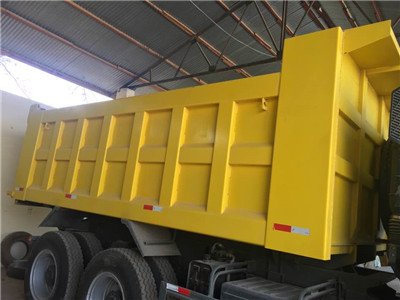

Dump body dimension(mm): 6500x2300x1200
Capacity: 17.9 cbm
Thickness of dump body (mm): floor 8, side & back 6
Lifting type: HYVA front type lifting
Other technical details according to CNHTC factory standard
Parameter
| Drive Type | 8×4 |
| Kerb Mass | 14350Kg |
| GVW | 31000Kg |
| Dimension | 9077x2496x3453mm |
| Wheelbase | 1800+2800+1350mm |
| Cargo size | 6500x2300x1200mm |
| Engine Model | WD615.69 |
| Output Power | 371hp /2200 rpm |
| Transmission Model | HW15710, 10 speed transmission |
| Front Axle Model | HF9 drum type, 9tons |
| Rear Axle Model | HC16 double reduction |
