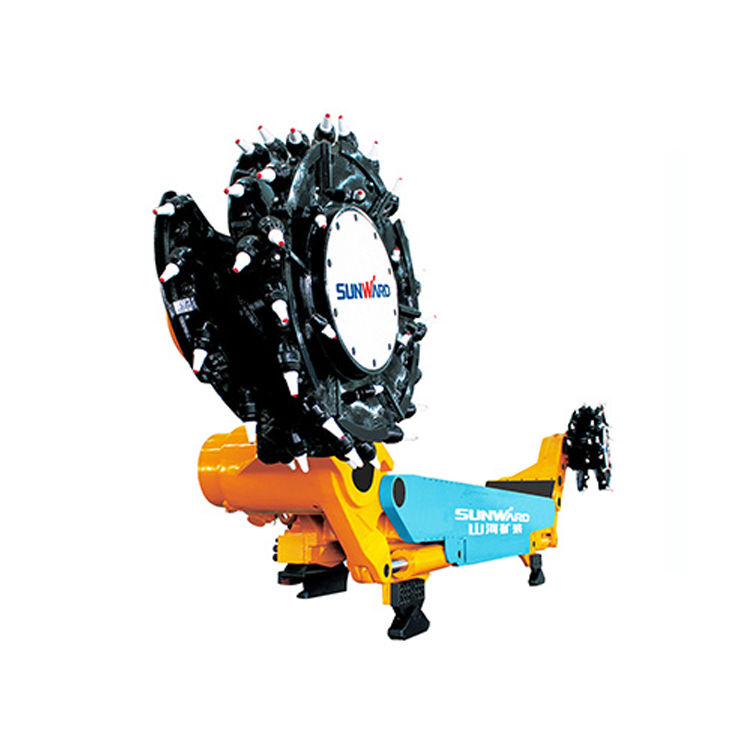

SUNWARD MG450/1050-WD(K) Coal Mining Machine
VS


Weight:60t

Traction Force: 620/450kN

Motor Power:2*450+2*60+30 kw


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

SUNWARD MG450/1050-WD(K) Coal Mining Machine


MG450/1050-WD(K) coal mining machine is driven by multiple motors and arranged horizontally, with simple structure and reliable transmission. The cutting motor is arranged horizontally on the rocker arm, and there is no power transmission between the rocker arm and the machine body. The machine body is divided into three sections, without a bottom bracket, and the three sections are connected by high-strength hydraulic bolt pairs, which is simple, reliable and easy to disassemble. All cutting reaction forces, height adjustment cylinder support reaction forces and travel reaction forces are borne by the travel reduction box body, without the need for bolt connection links, and have high reliability. The hydraulic system is simple and reliable, using mature components.

Parameter

Mining Height2.0-4.0 m
Deep Cut/
Adaptable Inclination Angle≤25°(four quadrants)
Drum Diameter¢1800、¢2000、¢2200 mm
Drum Speed29.4、33.8、38.5r/min
Undercover Volume/
Rocker Arm Length2502 mm
Rocker Arm Swing Center Distance7980 mm
Travel Wheel Center Distance6240 mm
Traction Force620/450 kN
Traction Speed0-10-13.8 m/min
Machine Surface Height1537 mm
Motor Power2*450+2*60+30 kw
Voltage3300 V
Maximum Non-removable Parts Size3088*1330*1239 mm
Weight60 t
Matching ConveyorSGZ800/800
