Feature

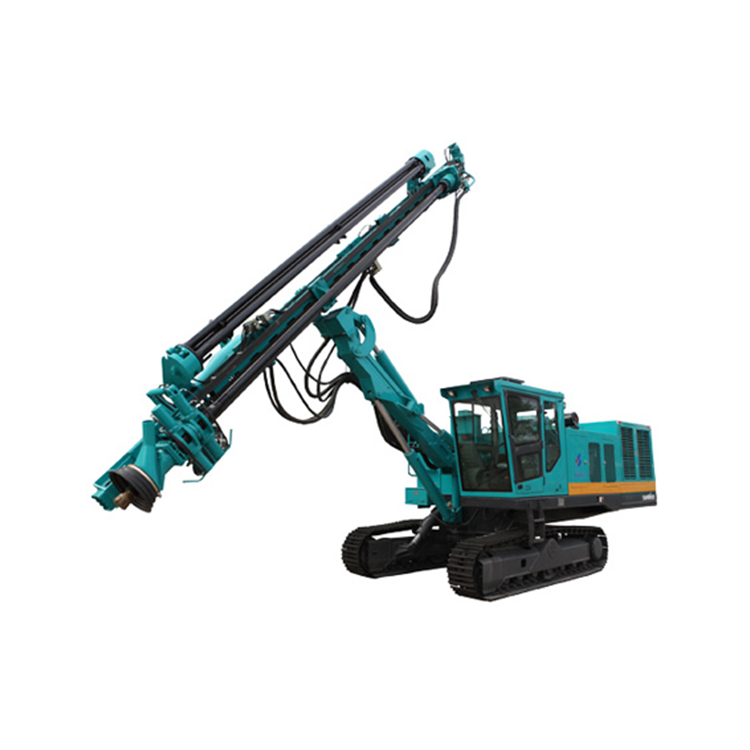

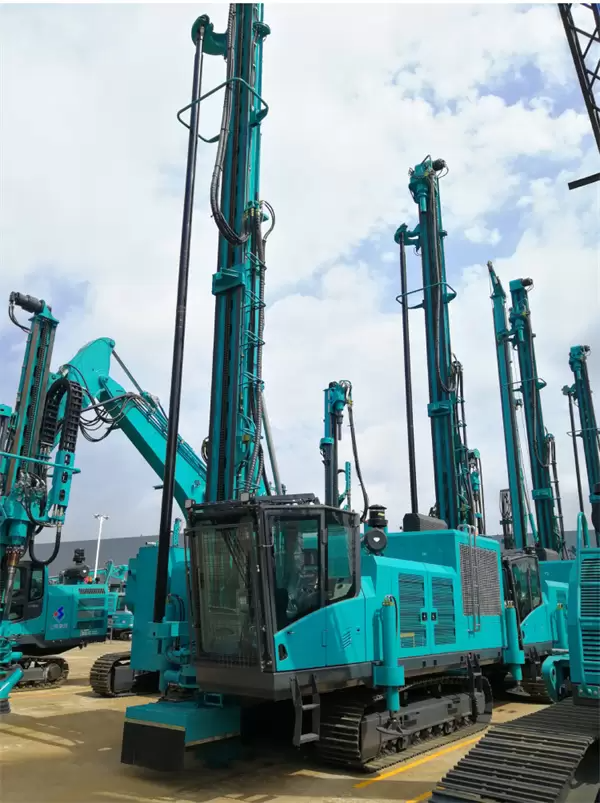

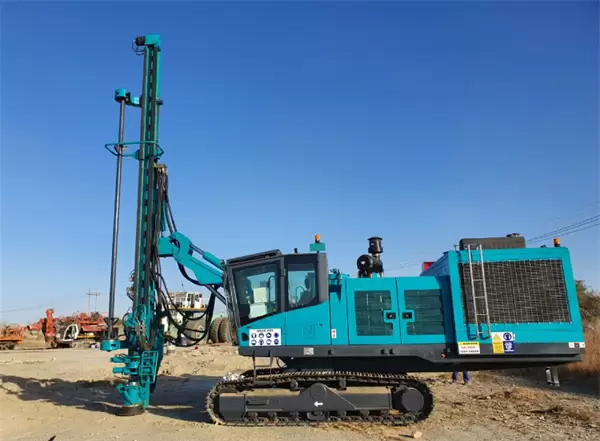

SUNWARD SWDE152B Down Hole Drill
- Brand new shape, highly recognizable
- High-strength, multi-degree-of-freedom drill arm, multi-directional drilling, horizontal holes, vertical holes and other angles, extremely flexible
- The propulsion beam is cold-drawn from double-sided guide rails, with high strength and good guidance accuracy.
- Floating chassis, track frame swings ±10°, large driving force, fast walking speed, strong off-road capability, suitable for rugged working conditions
- Lightweight, family-like design, compact size, convenient transition
- On-site maintenance, maintenance points are within easy reach, and parts are highly versatile
- The driver’s cab is ROPS&FOPS certified, with good visibility, exquisite layout, and safe and comfortable operation.
Parameter
| Drilling Diameter | 138-165mm |
| Max. Drilling depth | 36m |
| Rotation Torque | 4500Nm |
| Drilling Length | 6mX6 |
| Drill Rod Diameter | 102mm |
| Impactor Model | / |
| Rotation Speed | 105rpm |
| Rated Power | 264kW/2100rpm |
| Working Pressure | / |
| Walking Speed | 3.2Km/h |
| Climbing Ability | 25% |
| Working Status | 9.2×2.7×10.45 m |
| Transportation Status | 11.2×2.7×3.6 m |
| Overall Weight | 22.5t |
