Feature

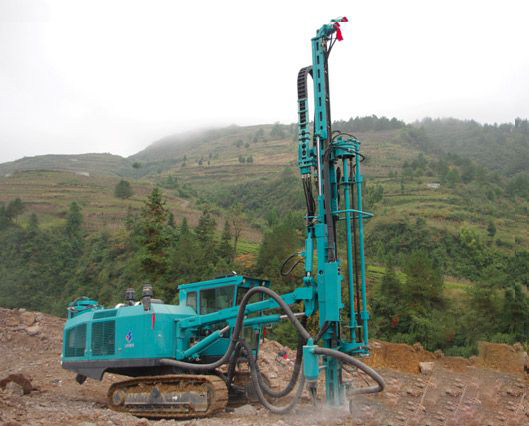

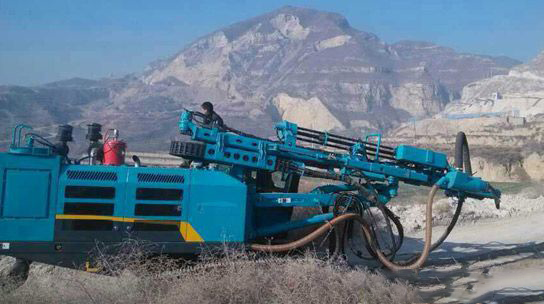

SUNWARD SWDH89R Drill Rig
- High-power hydraulic rock drill, with large impact energy and built-in back-hitting function, effectively reduces the risk of drill jamming and saves drilling tools.
- Adopts folding arm structure, with large coverage area in one positioning
- Adopts double-sided guide rail cold-drawn structural steel push beam, with high strength and good guiding accuracy
- Multi-angle hole drilling, vertical, inclined and horizontal holes can be drilled
- Core components are selected from internationally renowned brands, and the system design is reasonably matched
- Intelligent common bottom control system, precise control of angle and depth
- Path planning, hole sequence planning, graphic guidance, rapid positioning
- Shanhe Xiangyun Internet of Things platform, APP operation data synchronous transmission, construction status control at any time
Parameter
| Drilling Diameter | 64-102mm |
| Max. Drilling depth | 24m |
| Rotation Torque | 700Nm |
| Drilling Length | 3660mm |
| Drill Rod Diameter | 89mm |
| Impactor Model | / |
| Rotation Speed | / |
| Rated Power | 129kw/2200rpm |
| Working Pressure | / |
| Walking Speed | 4.2km/h |
| Climbing Ability | 25% |
| Working Status | 8.6×2.6×8.6m |
| Transportation Status | 12.5×2.6×3.5m |
| Overall Weight | 15kg |
