  • 山河智能 SWDM360H Ⅲ 旋挖钻机
View larger image
山河智能 SWDM360H Ⅲ 旋挖钻机

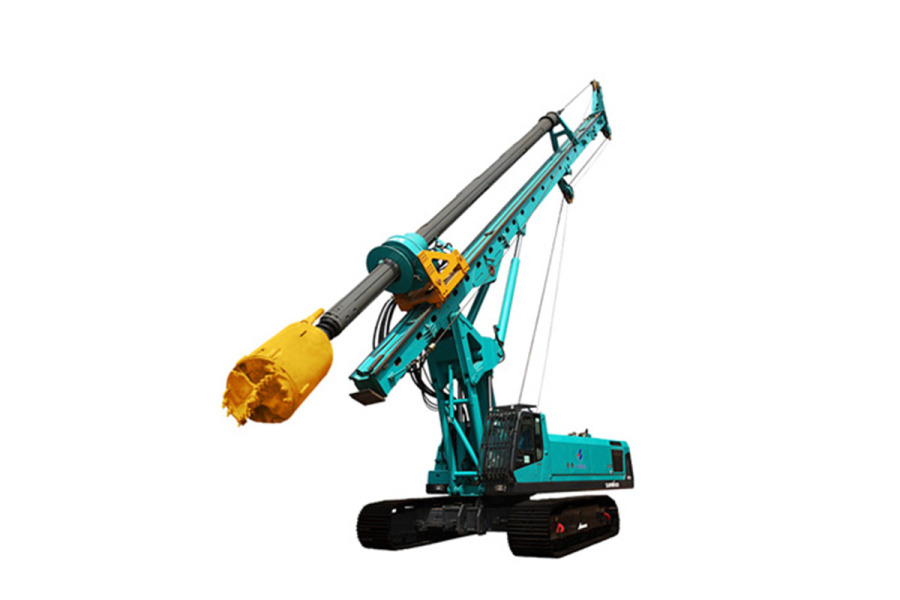

SUNWARD SWDM360H III Rotary Drilling Rig
VS


Operating weight:123t

Rated Power:399kW


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

SUNWARD SWDM360H III Rotary Drilling Rig


Specialised chassis
Special hydraulic telescopic chassis for rotary excavation, main and assistant winches are arranged on the platform with good stability.
Auxiliary outriggers
Lower mast spreading auxiliary outriggers can provide spreading support, lower sheath and rig maintenance.
Convenient transit transport
Parallel quadrilateral luffing mechanism, backward mast is convenient for transporting and transferring.
High configuration
The torque of power head reaches 418kN.m, with strong man rock capacity. Removing the lower mast, the maximum drilling diameter can reach 3000mm.

Parameter

Maximum drilling diameter2500mm(3000mm)
Maximum drilling depth102m/66m
engine brandCummi ns
engine modelQSX15-C535
rated power399kW/2100rpm
Maximum torque418kN.m
Rotating speed6~25rpm
High-speed dumping (optional)/
Maximum lifting force340kN
Maximum lifting speed80m/min
