  • SUNWARD SWSD2512 Intelligent Multi-function Drilling Rig
View larger image

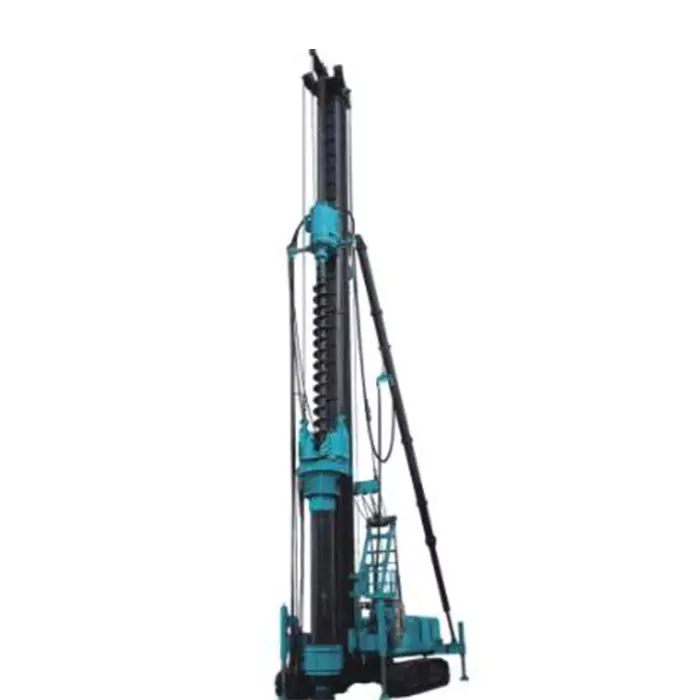

SUNWARD SWSD2512 Intelligent Multi-function Drilling Rig
SUNWARD SWSD2512 Intelligent Multi-function Drilling Rig
VS


Counterweight mass25.5t (8+7.5+5.5)
Maximum drilling diameterΦ1000mm

rated power:194kW/2200rpm


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

SUNWARD SWSD2512 Intelligent Multi-function Drilling Rig


  • High-Efficiency Performance: Featuring an advanced hydraulic system and a self-developed rotary drilling bit, the SWSD2512 excels in construction capacity and drilling speed, enabling quick operations across various geological conditions.
  • Precise Positioning: With an omni-directional rocker control system and high-precision rotary sensors, it accurately monitors the drilling rig’s position and orientation, ensuring precise hole alignment and enhancing construction accuracy.
  • User-Friendly Operation: Designed ergonomically, the drilling rig includes a large-screen interface with graphical controls, making operation intuitive and minimizing the learning curve for operators.
  • Stable Structure: Constructed from high-strength steel, the rig boasts excellent torsional strength and fatigue resistance, allowing it to perform reliably in harsh environments while ensuring stability and safety during operations.
  • Versatile Functionality: Adaptable to various construction needs, it can be fitted with an array of drilling tools and accessories, such as keyed rods and hole cleaners, enhancing its flexibility and adaptability.
  • Easy Maintenance: The modular design facilitates straightforward part replacement and maintenance, reducing downtime and costs, while simplifying overall equipment upkeep.

Parameter

Body massAbout 70t (not including counterweight, power head, column)
Counterweight mass25.5t (8+7.5+5.5)
The maximum allowable walking quality of the whole machineApproximately 150t (when working equipment is installed)
Working status (length×width×height)12.50×6.23×38.85m (excluding auxiliary hook arm)
Transportation status (length×width×height)11.43×3.30×3.53m (excluding columns, etc.)
Ground area9.3912m²
Ground pressure0.159MPa
Maximum drilling diameterΦ1000mm (when working with casing)
Column diameterΦ920mm
Column length21~36m
Main slide specificationsΦ102×600mm
Allowable maximum lifting force784kN (80t)

Request a Quote
