Feature

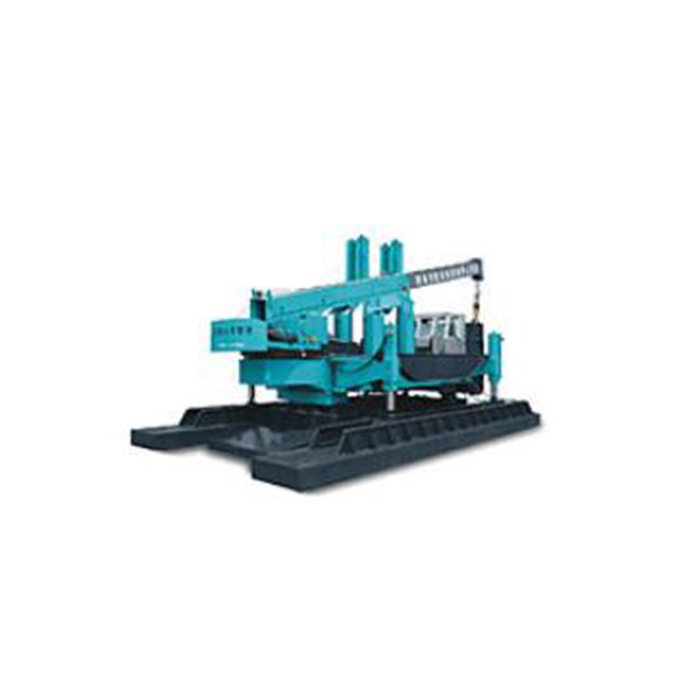

SUNWARD ZYJ1060 Intelligent Pile Driver
High-strength and wide chassis makes the machine work more stable and safe.
The cab is spacious and comfortable, neat and bright; the main movements are controlled by hydraulic handles, which is safe and labour-saving.
The control screen and monitoring screen use large screen display.
●The hoisting and winching use the oil cylinder for braking, which saves energy for operation, and the free lowering action is smooth.
●Innovative diagonal bracing expansion joint method, so that the whole machine transport length within about 16.8 metres, while the height of the column is leading in the same type of model.
●The whole machine is equipped with 4 winch sets, with comprehensive functions.
●The main hydraulic components are selected from well-known brands, with low failure rate.
●Contains Cummins four-stage engine with strong power, reliable performance, safety and convenient after-sales service.
●The tripod strength is upgraded and the material is improved to adapt to the construction of higher columns.
●Continuously improve the details, focus on safety, improve the product information. (Increase the detection sensor of diagonal support pins, non-disassembly ladder, front mud plate, tool box, etc., and make the production crystal catalogue).
Parameter
Overall dimensions | 16000×9160×3260 (mm) |
Total Weight | 1062t |
Maximum pile pressure | 1060tf |
Maximum pile pressing speed | 8m / min |
Piling stroke (one time) | 1.8m |
Walking ability (longitudinal stroke: once) | 3.6m |
Walking ability (transverse stroke: once) | 0.7m |
Walking ability (turning angle: once) | 8° |
Lifting stroke | 1.1m |
Standard crane | QY25C |
