Static Linear Load: 1213N/cm
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

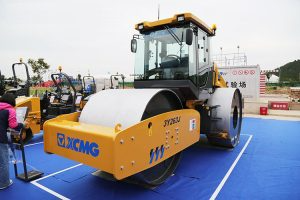

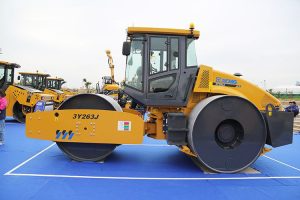

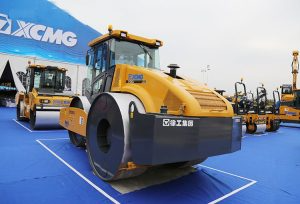

XCMG 3Y263J Three-drum Static Roller
The 3Y263J articulated three-drum static roller has a large unit linear load. It is mainly used for the compaction of pavement and foundation of gravel, crushed stone, asphalt concrete, coal slag, stone and other materials, which is the ideal compaction equipment for railway, highway, airport, port, dam and industrial construction site.
Parameter
| Operating weight | 23000Kg |
| Max. weight with Counter weight | 26000Kg |
| Static linear load | 1213N/cm |
| Static linear load total counter weight | 1370N/cm |
| Working width | 2420mm |
| Front drum diameter | 1600mm |
| Rear drum diameter | 1700mm |
| Overlap of front & rear drum | 100mm |
| Max. gradeability | 20% |
| Engine manufacturer | SDEC |
| Engine Model | SC4H125.2G3 |
| Rated Power | 92Kw/1800rpm |
| Speed range forward (1)(2)(3) | 2.8/5.5/11.6km/h |
| Speed range Backward (1)(2) | 2.8/5.5km/h |
| Track radius, out | 6500mm |
| Overall dimensions | 6285×2420×3348mm |
