Rated working height:100m
Max. travel speed:80km/h
Rated Power:400kw
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

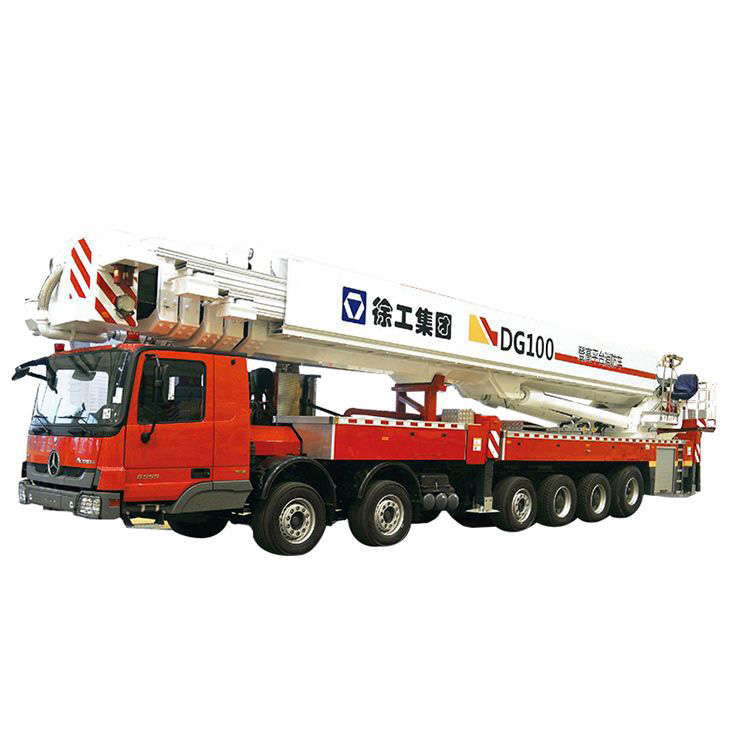

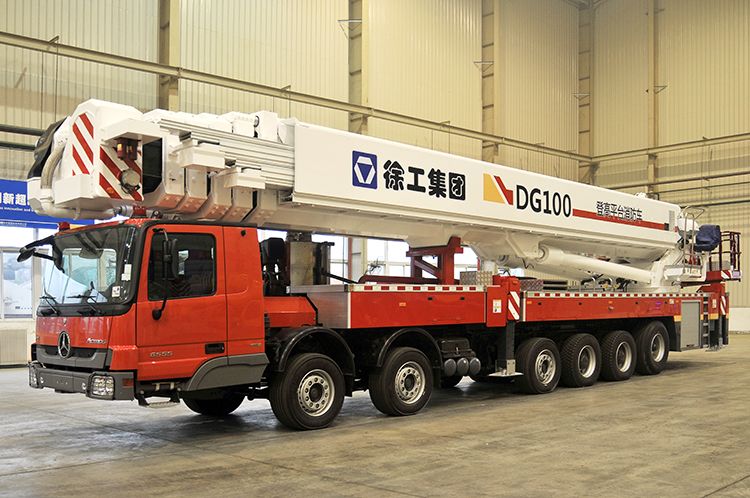

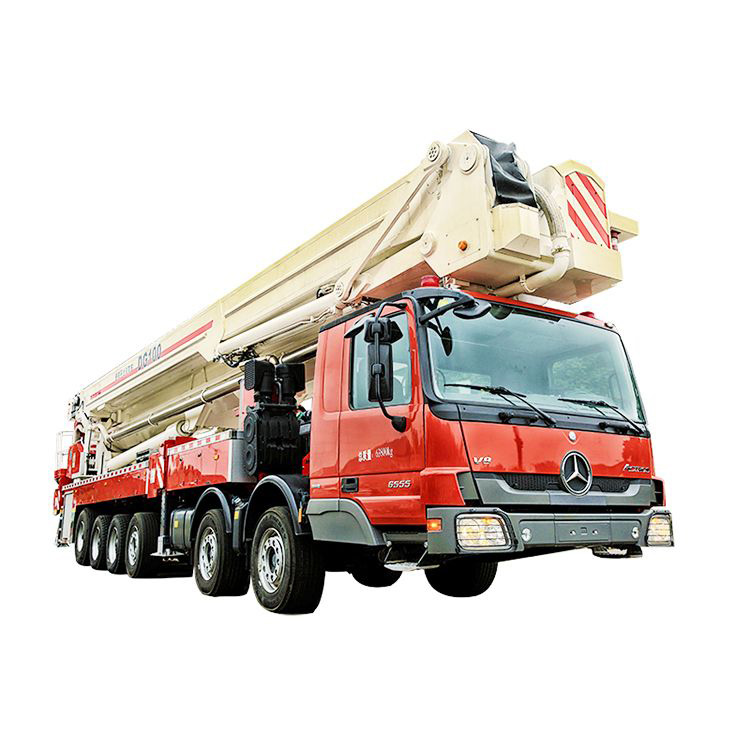

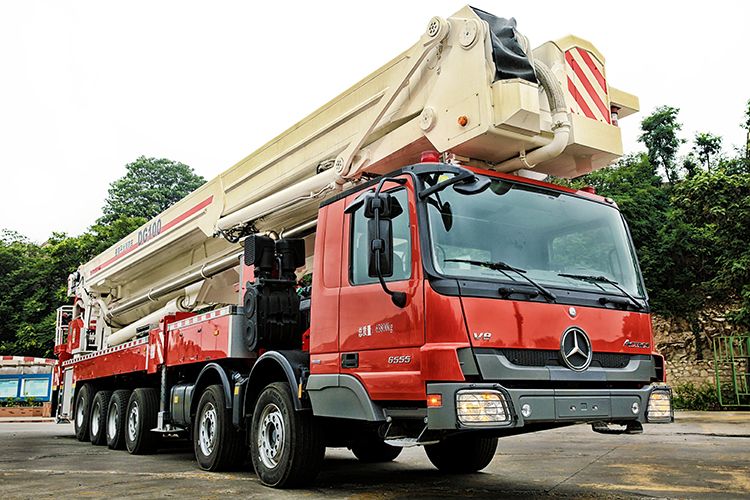

XCMG DG100 Aerial Platform Fire Truck
Electric control and hydraulic drive adopted in each moving mechanism brings the vehicle features of easy operation, flexible movement, safety and reliability and strong practicability. Deceleration and stopping at limit position are controlled by computer automatically, which makes operation quick, labor-saving, convenient and stable, also brings large speed regulating range, flexible fine motion and exact movements. With the effective cooperation of straight telescopic boom plus folding boom, it is with excellent aerial obstacle-crossing capacity, which has the wider operation scope than the straight boom truck.
1. The DG72M1 multi-function aerial platform vehicle is with multi-function of electrically-control hydraulic drive, full slewing and combined booms.
2. Variable displacement piston pump LS load-sensitive control system should be adopted in hydraulic system with good inching performance.
3. The electric control system is adopted by the distributed control technology based on PLC and CAN MHz, which can realize automatic leveling of the substructure vehicle, load weighing of platform, ultrasonic anticollision detection of platform, IoT, dynamic attitude monitoring and presentation of single key operation. It not only dynamically displays the working parameters and limit state of the superstructure vehicle, which realizes all kinds of action control and safety protection of the whole vehicle, but it also ensures the stability and fretting of the boom movement.
Parameter
Max. travel speed | 80km/h |
Max. net power | 400kw |
Rated working height | 100m |
Max. working radius | 27m |
Rated platform load | 400kg |
Time for deploying boom | ≤610S |
