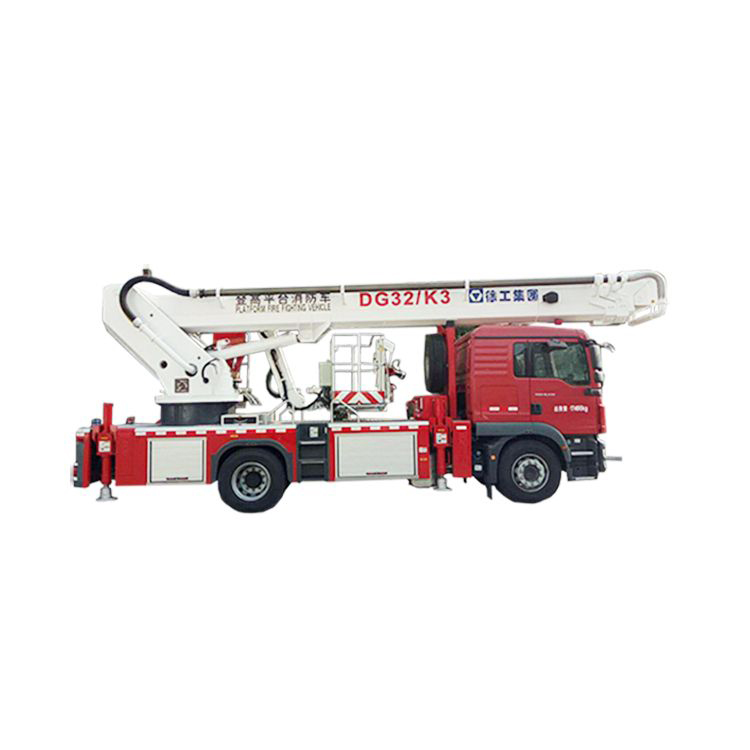

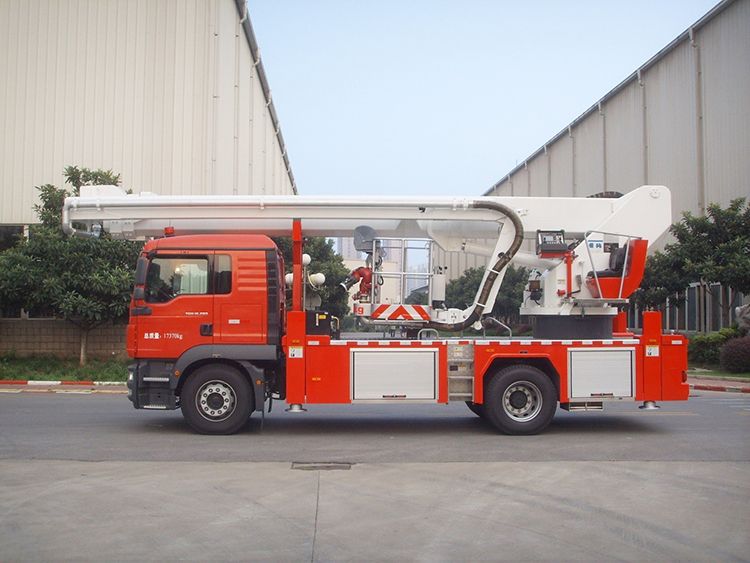

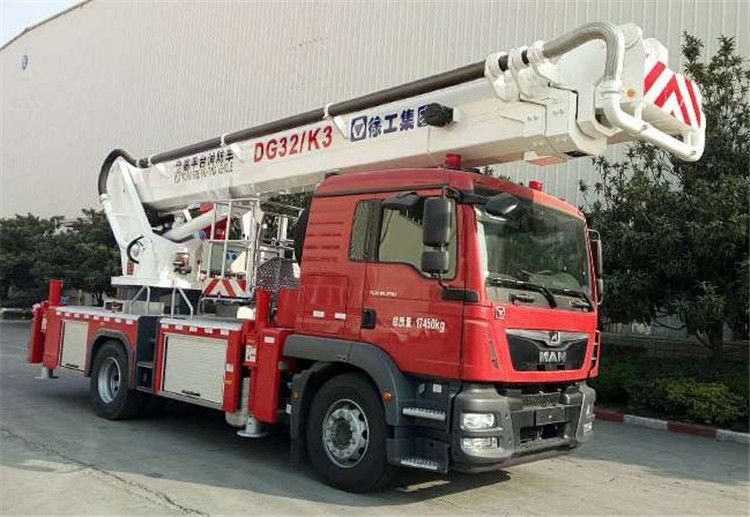

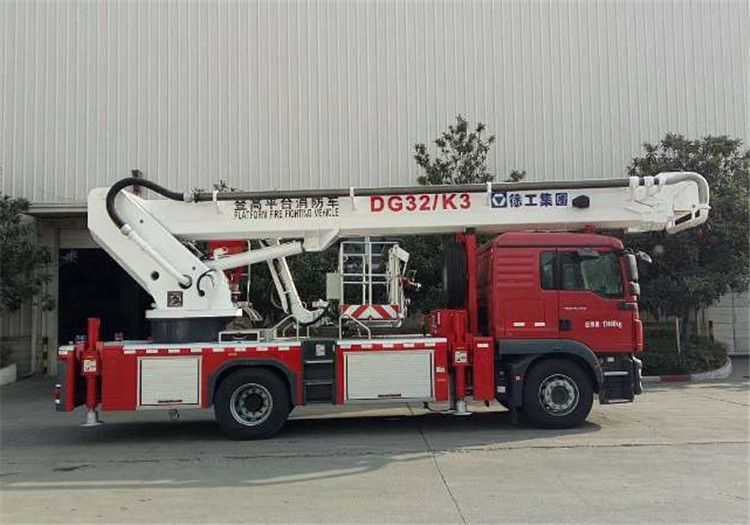

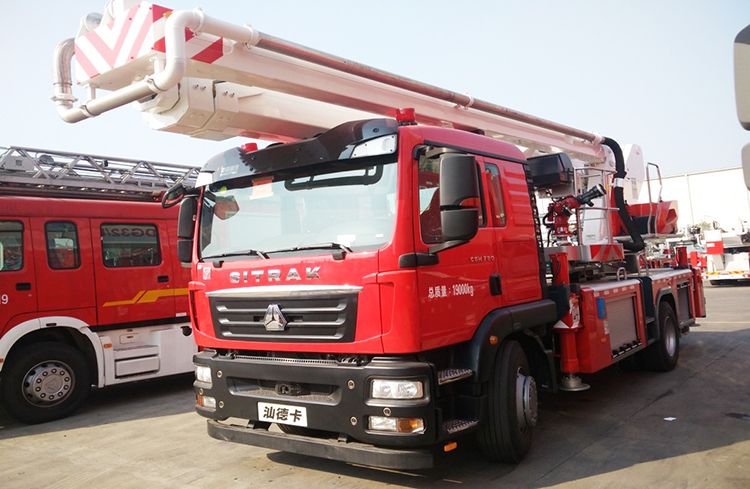

XCMG DG32K3 Aerial Platform Fire Truck
VS


Rated working height:32m

Max. travel speed:90km/h

Rated Power:213kw


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

XCMG DG32K3 Aerial Platform Fire Truck


DG32K3 ladder truck is a kind of compact fire fighting main vehicle which is driven by full hydraulic pressure, full rotation, combination arm (two groups of telescopic arms + one curved arm), and is mainly based on high altitude rescue and has the function of extinguishing fire. The vehicle is widely used in high-altitude fire rescue operations in cities, factories, mines, ports, and other places. It is the first choice for extinguishing high-rise building fires, rescue personnel in distress and rescue of property.

1. The chassis of the vehicle adopts the original Germany 4×2 chassis, with nine forward gears, one reverse gear, and the maximum speed is not less than 96km/h; the engine model is D0836LFLAL, the rated power is 213kW; the emission meets the requirement of the national V emission standard; it has the ABS anti-lock function; it adopts the electronic control module control and hydraulic assisted shift, the operation is stable and reliable.

2. The ladder truck is equipped with an American 3578/5177 electronically controlled fire monitor in front of the working platform to achieve high altitude and ground fire extinguishing operations. The water inlet and control valve are fully equipped and easy to operate.

3. It uses CAN bus PLC control. The upper vehicle operation can be carried out on the turntable as well as on the work platform. The humanized multimedia display system on the control console can display the dynamic working parameters of the whole machine at any time and perform safety control. The electronic amplitude limiter equipped makes the whole operation simple, safe and reliable.

Parameter

Max. travel speed90km/h
Max. net power213kw
Rated working height32m
Max. working radius18-20m
Rated platform load500kg
Time for deploying boom≤100S
