Manufacturer：Cummins
Engine Model：6CTA8.3-C230
Rated power/speed (kW/rpm)：172/2200
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

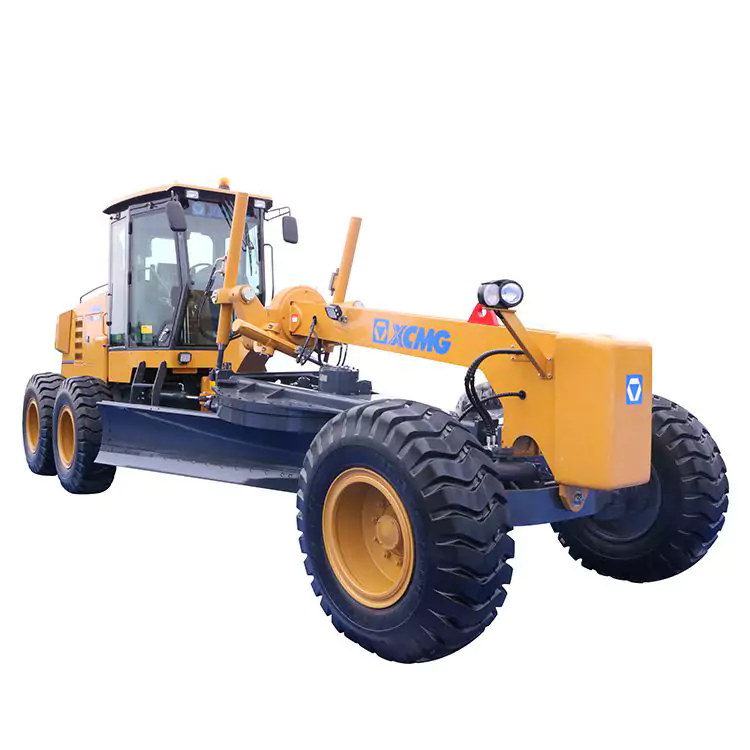

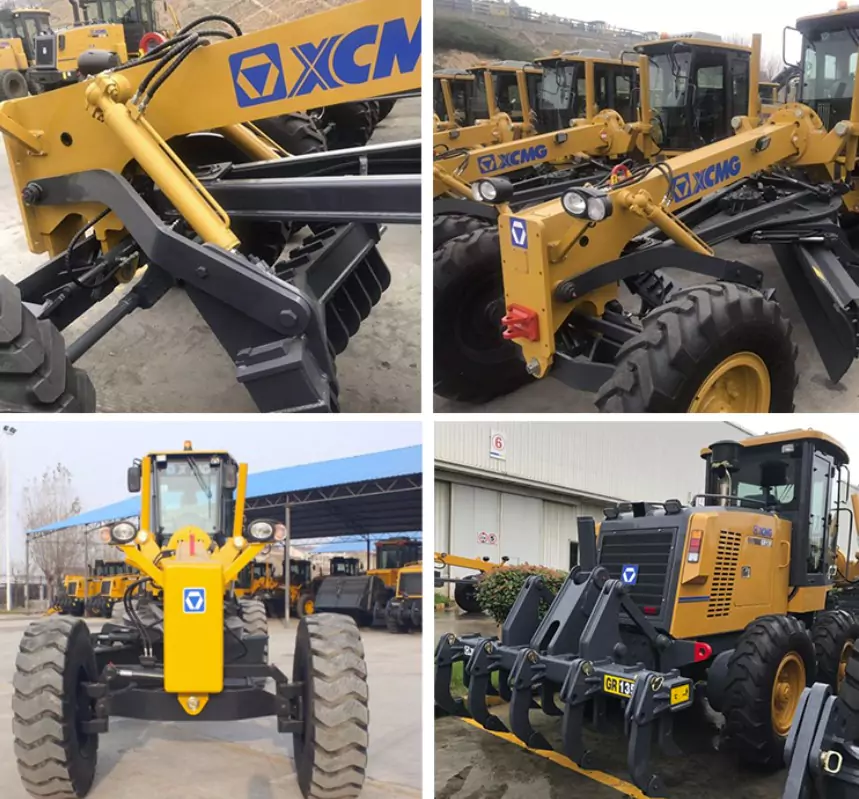

XCMG GR230 Motor Grader

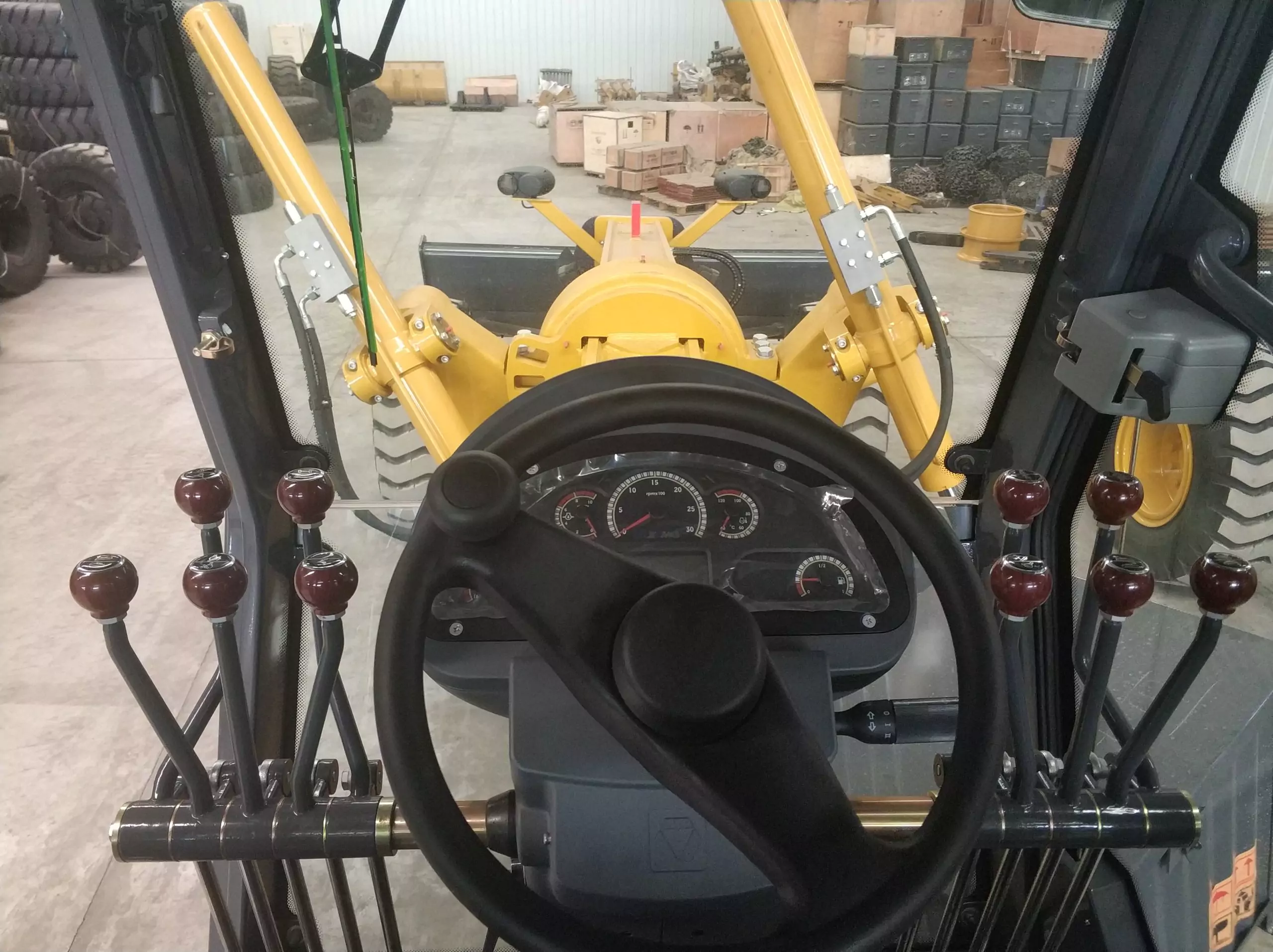

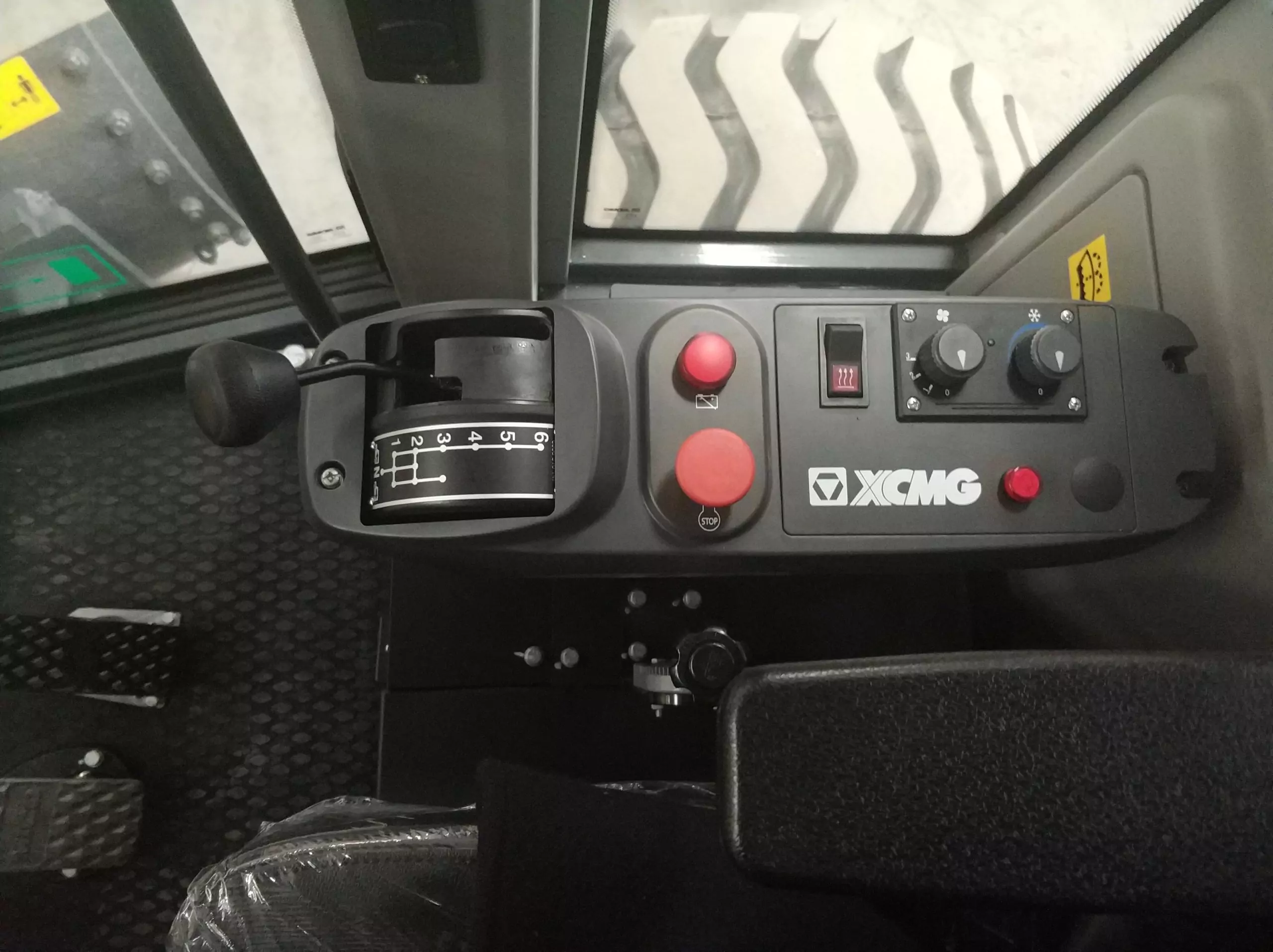

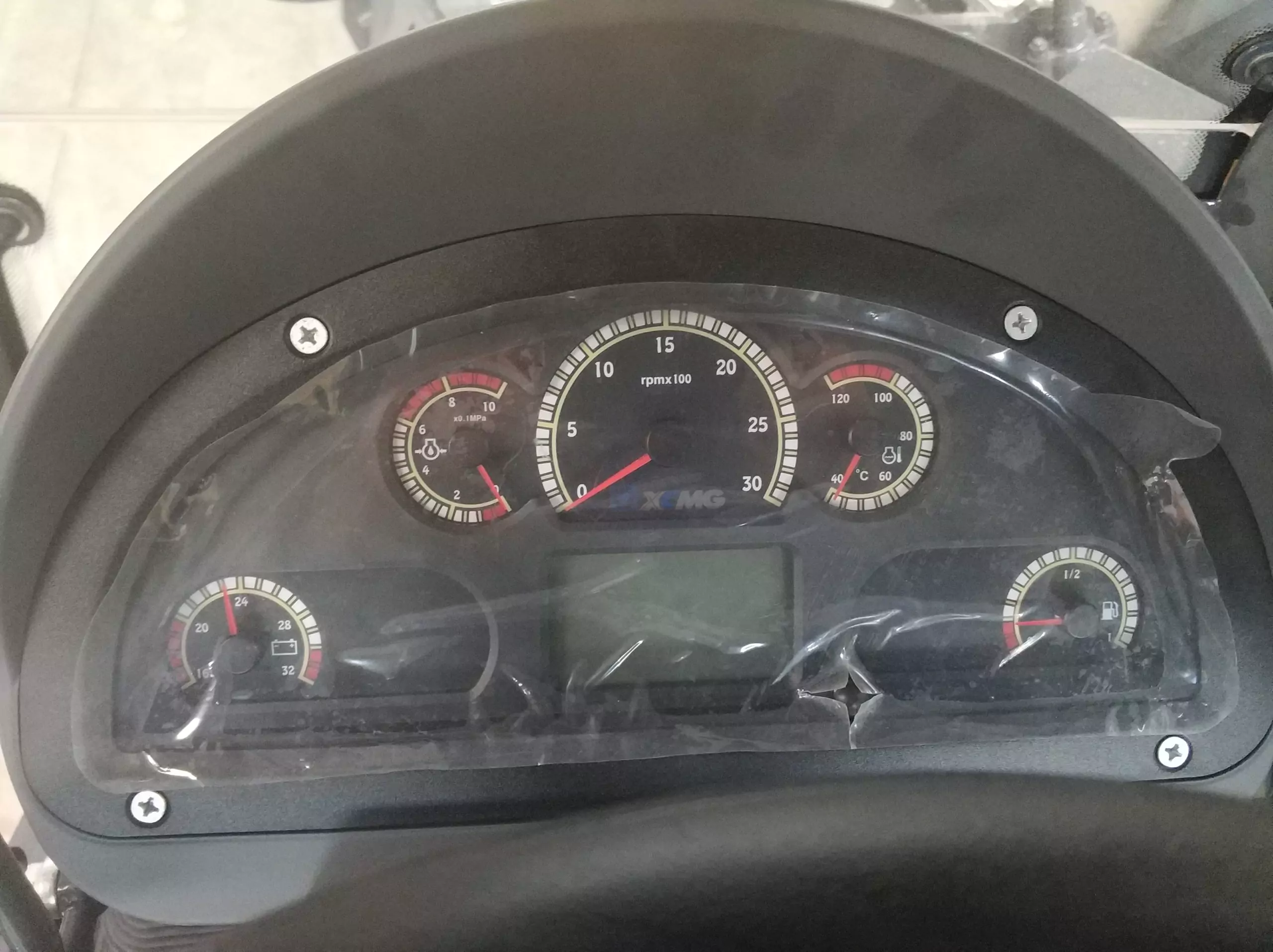

GR230 grader new appearance design. It adopts an articulated frame and cooperates with front wheel steering to have a small turning radius and flexible maneuverability. Electro-hydraulic controlled power shift transmission with 6 forward gears and 3 reverse gears. It adopts international matching hydraulic parts and works reliably. The blade action is fully hydraulically controlled. The rear axle is a three-stage drive axle equipped with a NO-SPIN self-locking differential. The adjustable console, seat, control handle and instruments are reasonably arranged and easy to use, improving driving comfort. The cab is luxurious and beautiful, with wide vision and good sealing.
Parameter
| Engine | Cummins 6CTA8.3-C230 |
| Rated power/speed | 172kW/2200rpm |
| Forward velocity | 5/8/11/19/23/38km/h |
| Reverse speed | 5/11/23km/h |
| Tractive effort | 90 kN |
| Minimum turning radius | 7.3m |
| Length X chord height | 4270*610mm |
| Overall dimension（standard） | 8970*2625*3420mm |
| Total weight（standard） | 16500kg |
