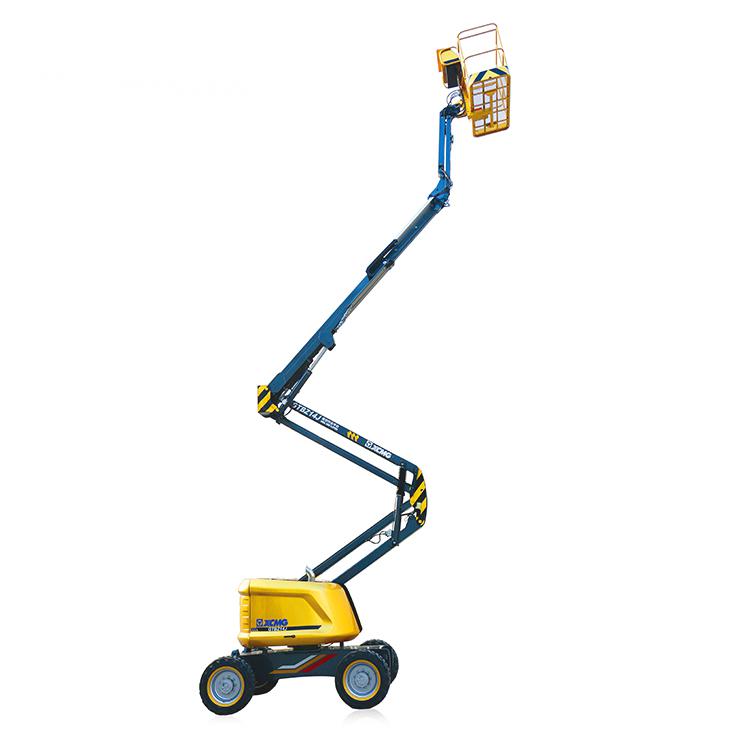

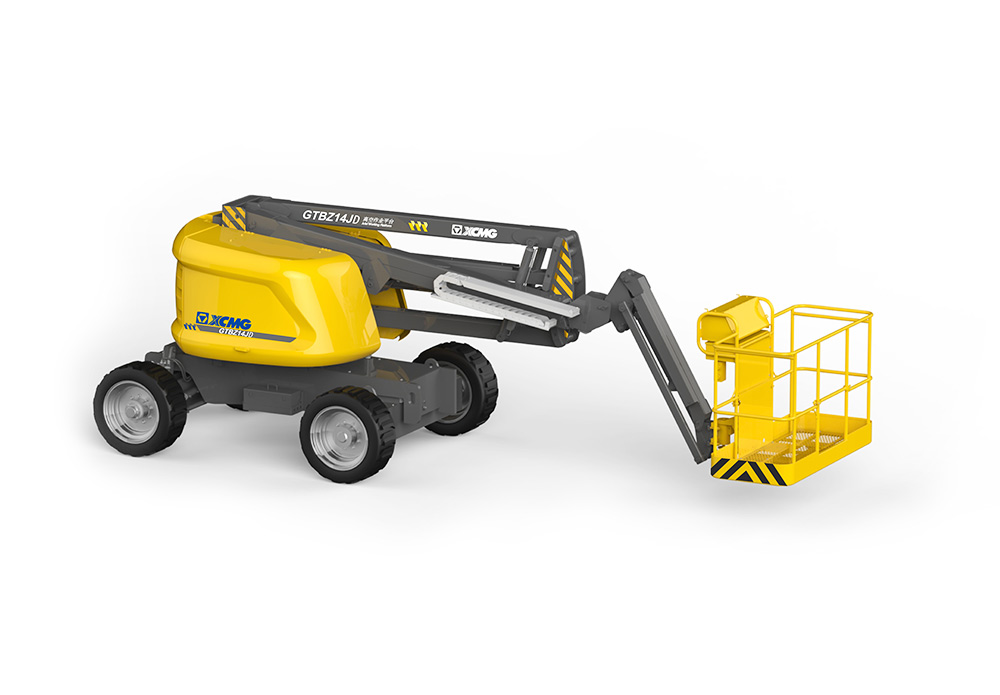

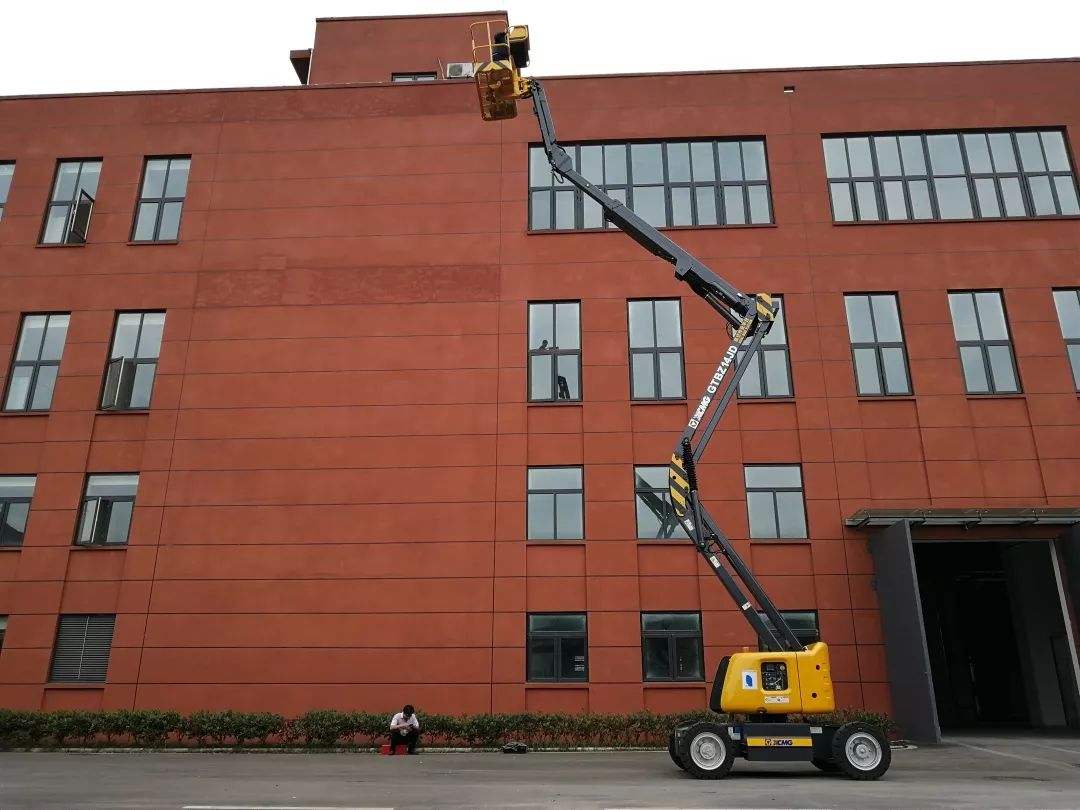

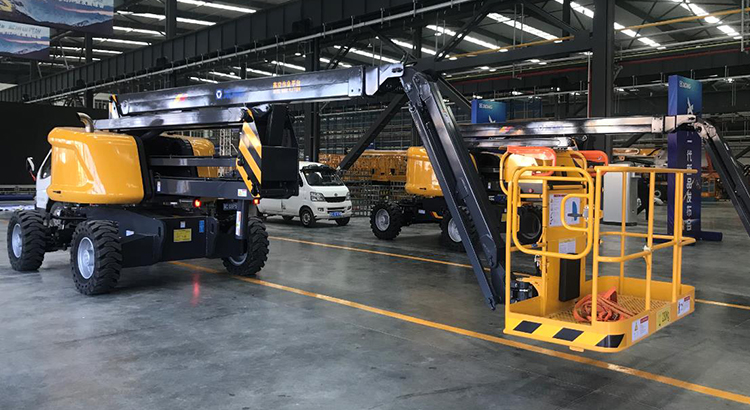

XCMG GTBZ14JD Articulating Boom Lift
VS


Max. Working Height:15.75m

Max. Platform Height:14.05m


Max. Working Range:8.22m


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

XCMG GTBZ14JD Articulating Boom Lift


(1)Leading Technologies
The first electric-driven articulated boom product is leading the domestic industry in terms of main working parameters. In addition, the AC electric-driven traveling technology and the differential traveling control technology are applied to realize more accurate power matching and more flexible steering control.

(2)Higher Safety and Stability
The complete safety protection, the independently designed control system, and high-efficiency worm and gear mechanism provide an all-new operation experience.

(3)Flexible Operations
The”Crank-slider”mechanism is applied to realize small turning radius and flexible steering. In addition, the 30% gradeability makes the driving operations easier.

Parameter

Max. Working Height15.75m
Max. Platform Height14.05m
Max. Working Range8.22m
Max. Load Capacity230kg
Boom Luffing Range0~+60°
Rotation Angle of Turntable/
Rotation Angle of Platform355°
Max. Tail Wagging/
Max. Travel Speed6.1km/h
Min. Turning Radius4.5m
Min. Ground Clearance250mm
Max. Grade Ability45%
Tire Specification315/55D20
Engine ModelPerkins404D-22
Rated Power of Engine38kw/(3000)r/min
Total Weight6900kg
Platform Size1830*760*1150mm
Overall Length6690mm
Overall Width2260mm
Overall Height2130mm
Wheel Base2100mm
