Max. Working Height：32.2m
Max. Platform Height：30.5m
Max. Working Range：23.1m
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

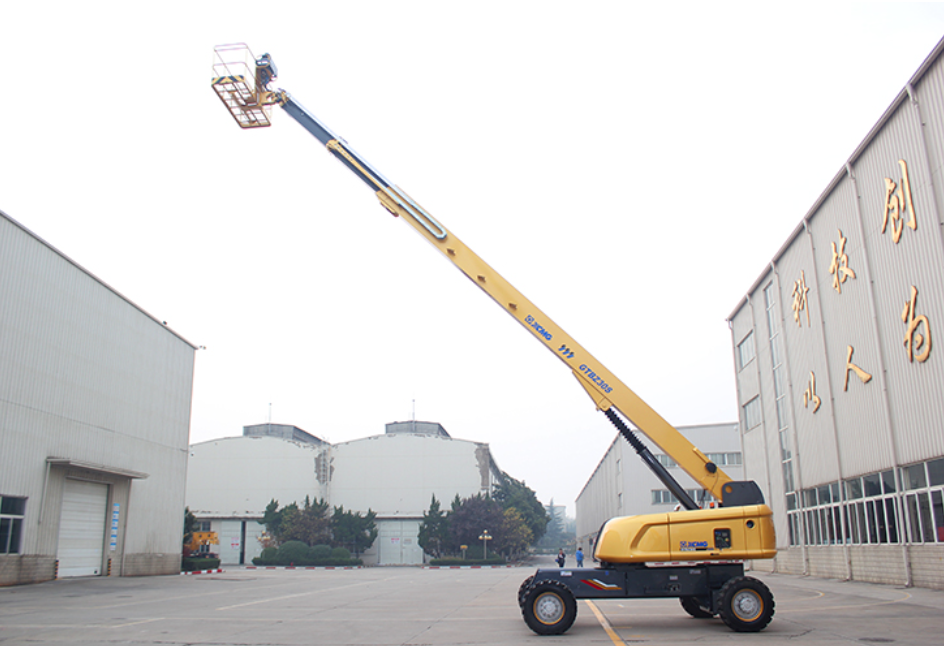

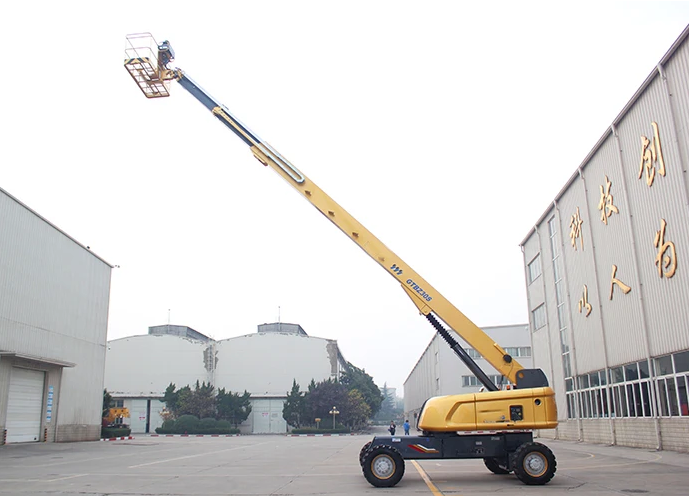

XCMG GTBZ30S Telescopic Boom Lift
Performance Characteristics:
1. Super-strong Capacity of Climbing Drive
The electronic steering and wide foam tyres both attribute to an excellent capacity of climbing drive, thus adapting itself to all kinds of complicated road conditions.
2. Strongest Capacity Of Loading Within The Industry
The maximum load capacity of 30&32 meters is 480kg&340kg respectively ranks the first within the industry, thus satisfying the user’s demands on heavy load.
3. Excellent Working Range
The double-load operating-curve control technologies realizes a real-time monitoring over loads, thus producing a strong capacity of operation, as well as a widest working range at the same elevation.
Parameter
| Max. Working Height | 32.2m |
| Max. Platform Height | 30.5m |
| Max. Working Range | 23.1m |
| Max. Load Capacity | 340kg |
| Boom Luffing Range | -11~+75° |
| Rotation Angle of Turntable | / |
| Rotation Angle of Platform | / |
| Max. Tail Wagging | / |
| Max. Travel Speed | 5km/h |
| Min. Turning Radius | 8.2m |
| Min. Ground Clearance | 260mm |
| Max. Grade Ability | 45% |
| Tire Specification | 385/65D22.5 |
| Engine Model | Perkins 1104D-44T |
| Rated Power of Engine | 55.5kw/2400(r/min) |
| Total Weight | 18300kg |
| Platform Size | / |
| Overall Length | / |
| Overall Width | / |
| Overall Height | / |
| Wheel Base | 3800mm |
