Load capacity: 230kg
Load capacity of extended platform :115kg
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

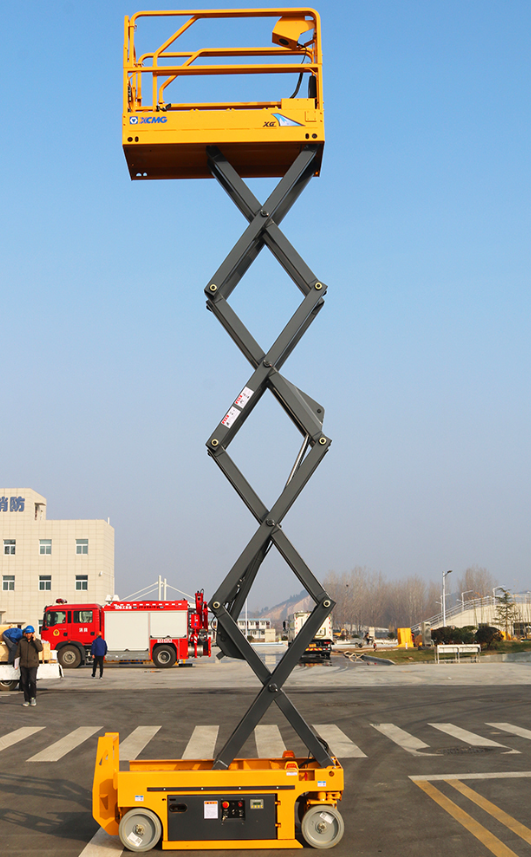

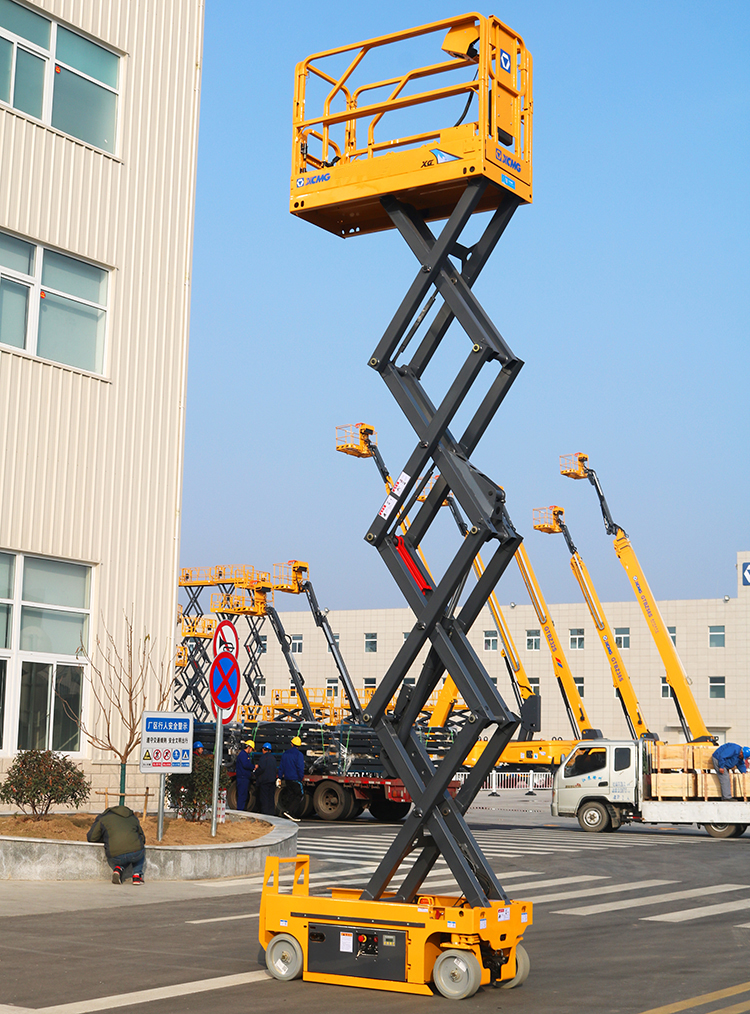

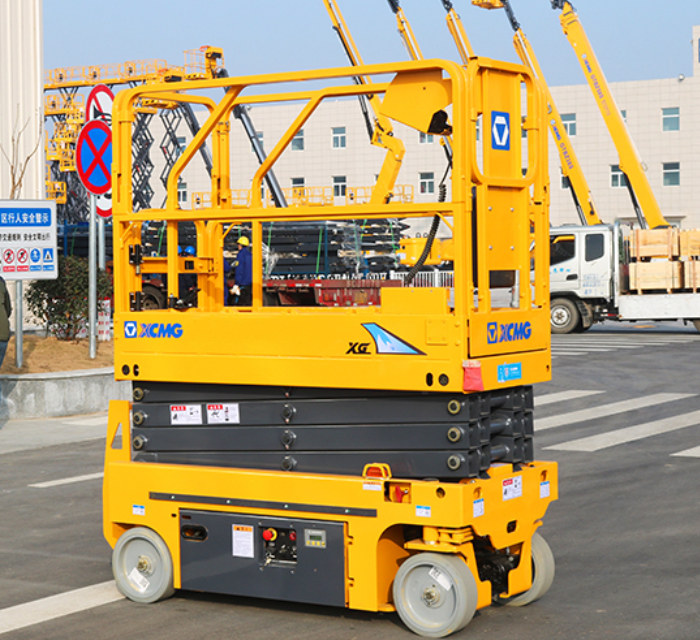

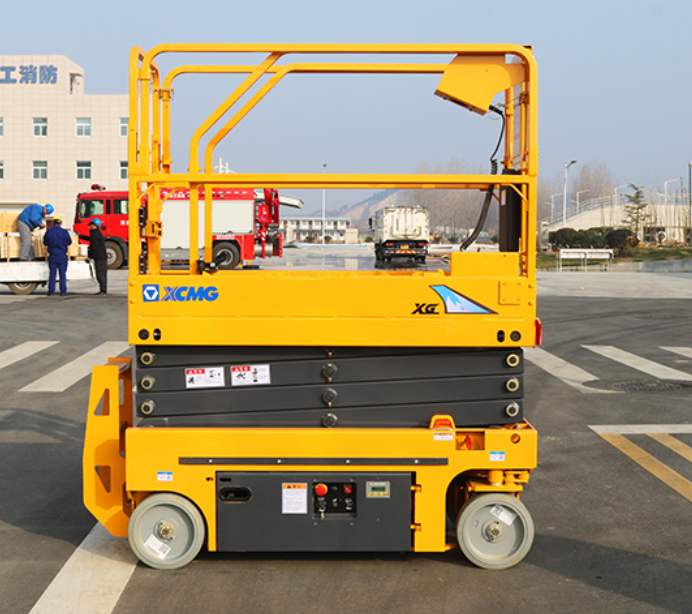

XCMG GTJZ0607 Scissor Lift
The scissors aerial work platform which is the newly developed series by XCMG can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.
1, Low noise and zero release
The electric drive system of zero emission,low noise, high efficiency, and high energy-conservation is applied and the traceless tires are equipped to realize environmental-friendly and convenient constructions in enclosed environments, including office buildings, hospitals, and schools.
2, Meeting individual demands
Perfect safety protection,independently-designed control system and abundant matching combinations may fully meet the customized demands of customer.
3, Compact and flexible operation
The narrow design enables the vehicle to pass through single gateway with ease and the unique “zero inner turning radius” works with folding platform to realize easier transportation and translocation and flexible application in narrow spaces. The 25% gradeability makes the driving of vehicle easier.
Parameter
Load capacity | 230kg |
Load capacity of extended platform | 115kg |
Max.Occupant Capacity | / |
Max.Working height | 7.8m |
Max.Platform height | 5.8m |
Overall length(no ladder) | 1882mm |
Overall width | 760mm |
Overall height(platform folded) | 1771mm |
Working platform dimension(Length x Width) | 1655×740×1185mm |
Length of extension platform | 900mm |
Min.ground clearance(pit protector rising/descending) | 60/20mm |
Wheel base | 1360mm |
Min.turning radius(inner/outer wheel) | 0 |
Lifting motor(kW) | / |
Max.Traveling speed at low level | 4km/h |
Max.Traveling speed at high level | 0.8km/h |
Lifting/Descending duration of platform | / |
Max.gradeability | 25% |
Max. Inclination(side/forward and backward) | / |
Battery(v/Ah) | 4×6(225) |
Charger(v/A) | 30 |
Tire specification | Traceless solid 30.5cm×10.0cm |
Total machine weight | 1490kg |
