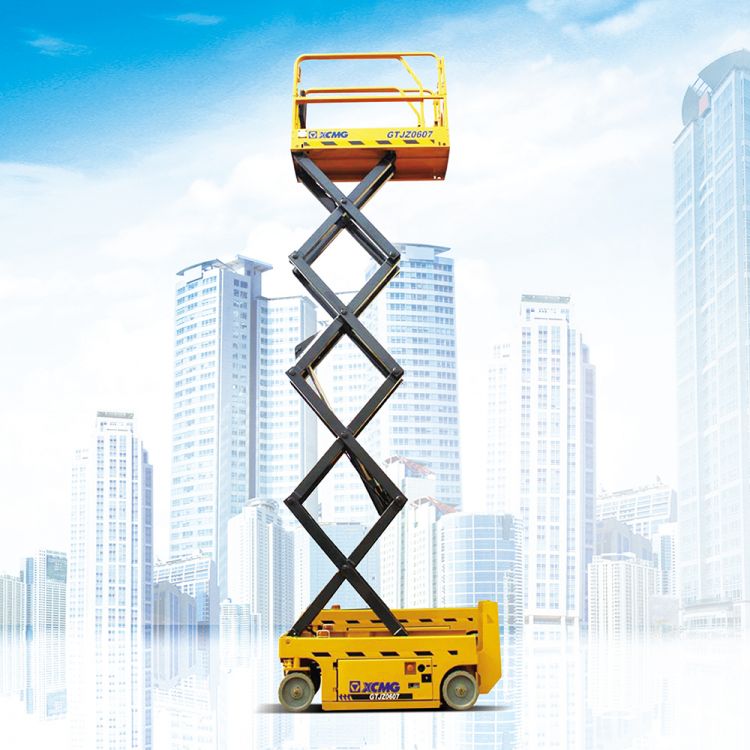

XCMG GTJZ0607E Scissor Lift
VS


Load capacity: 230kg

Load capacity of extended platform :115kg


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

XCMG GTJZ0607E Scissor Lift


Maximum working range 18.9m to reach operation area at different directions

This vehicle is equipped with No. 1, No. 2 booms and a full section of articulated boom, available to implement all-directional aerial work through the elevating, telescopic and slewing control, and thus making the machine more flexible.

Flexible 4WD multi-mode steering system and the leading grade ability.

The customized valve control system and all accurately controlled motions effectively improve the motion smoothness

The flow anti-saturation design is applied to provide efficient and stable composite motion experiences.

Initial power self-matching system could save the energy, dropping the comprehensive fuel consumption under each work condition by 30% or higher.



Parameter

Load capacity230kg
Load capacity of extended platform115kg
Max.Occupant Capacity/
Max.Working height7.8m
Max.Platform height5.8m
Overall length(no ladder)1882mm
Overall width760mm
Overall height(platform folded)1771mm
Working platform dimension(Length x Width)1655×740×1185mm
Length of extension platform900mm
Min.ground clearance(pit protector rising/descending)60/20mm
Wheel base1360mm
Min.turning radius(inner/outer wheel)o
Lifting motor(kW)/
Max.Traveling speed at low level4km/h
Max.Traveling speed at high level0.8km/h
Lifting/Descending duration of platform/
Max.gradeability25%
Max. Inclination(side/forward and backward)/
Battery(v/Ah)4×6(225)
Charger(v/A)30A
Tire specificationTraceless solid 30.5cm×10.0cm
Total machine weight1490kg
