Load capacity： 320kg
Load capacity of extended platform ：115kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

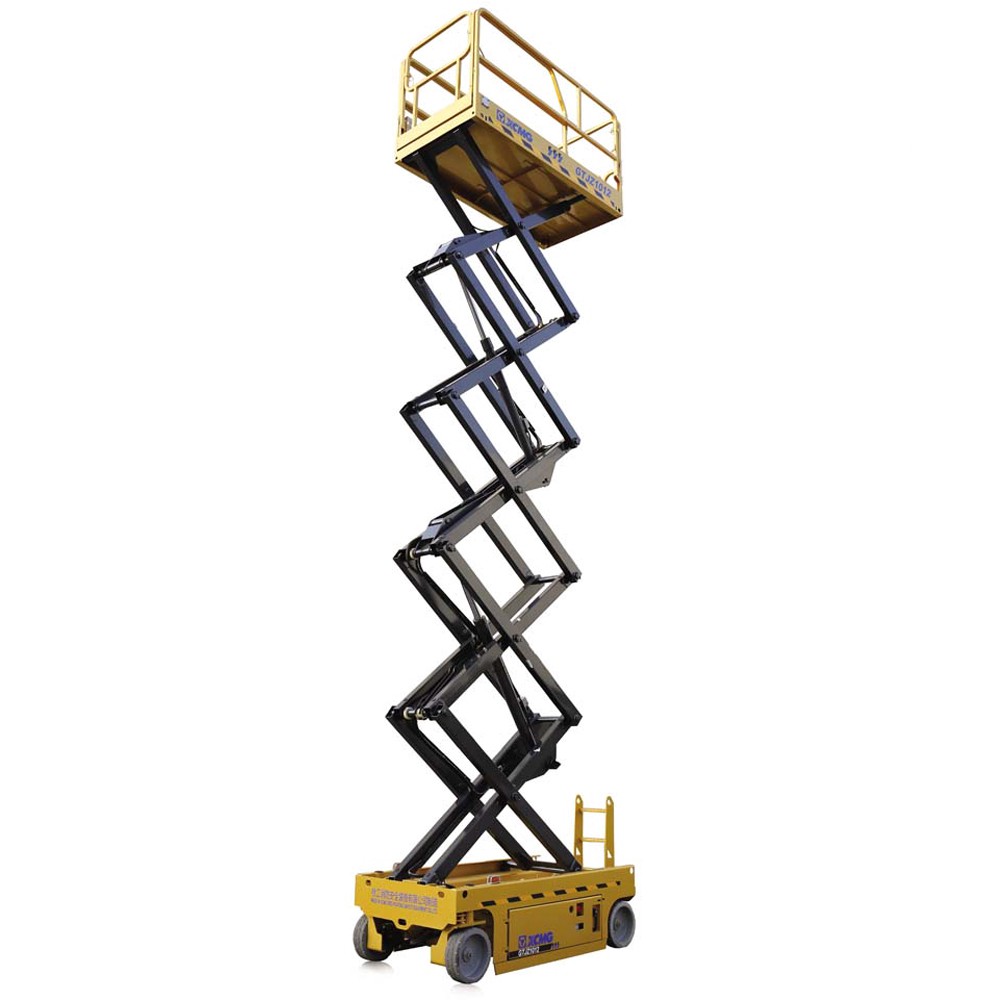

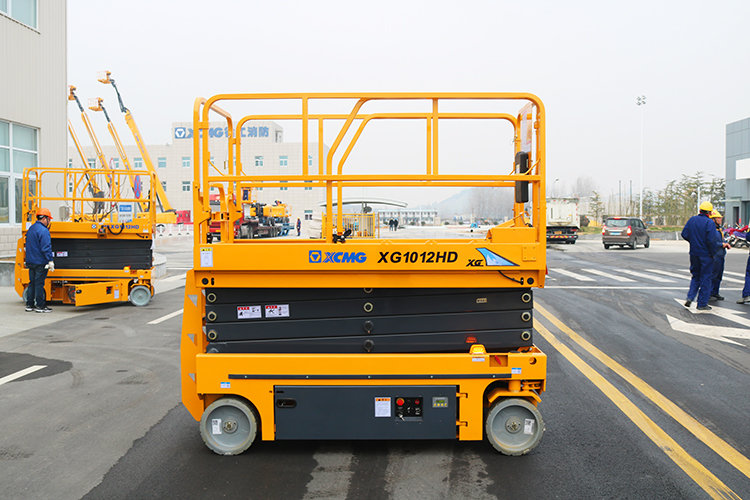

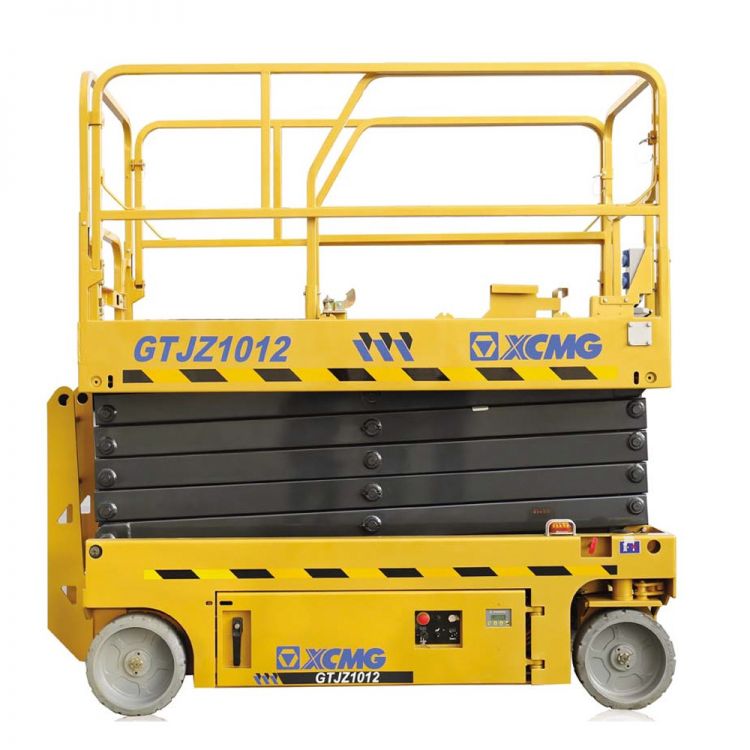

XCMG GTJZ1012 Scissor Lift
Product Highlights:
(1) Convenient transportation and stable operation
Scalable assistant expansion platform has bigger operation space and foldable rail makes transportation displacement more convenient. Industry-leading automatic hole protection system and tread widening design achieve that you can operate freely even at uneven ground.
(2) Environmental construction and convenient service
Pure electric drive, zero release, low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.
(3) General and modular design
A set of booms are added, achieving rapid vehicle model extension, ensuring general design of parts and components and realizing more convenient customer repair and maintenance.
Parameter
| Load capacity | 320kg |
| Load capacity of extended platform | 115kg |
| Max.Occupant Capacity | / |
| Max.Working height | 12m |
| Max.Platform height | 10m |
| Overall length（no ladder） | 2485mm |
| Overall width | 1170mm |
| Overall height（platform folded） | 2472mm |
| Working platform dimension（Length x Width） | 2276×1120mm |
| Length of extension platform | 900mm |
| Min.ground clearance（pit protector rising/descending） | / |
| Wheel base | 1877mm |
| Min.turning radius（inner/outer wheel） | 0 |
| Lifting motor(kW) | / |
| Max.Traveling speed at low level | 3.5Km/h |
| Max.Traveling speed at high level | 0.8Km/h |
| Lifting/Descending duration of platform | / |
| Max.gradeability | 25% |
| Max. Inclination（side/forward and backward） | / |
| Battery(v/Ah) | 4×6(240)V/(Ah) |
| Charger(v/A) | 30A |
| Tire specification | 38.1cm×12.7cm |
| Total machine weight | 2940kg |
