Load capacity： 320kg
Load capacity of extended platform ：115kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

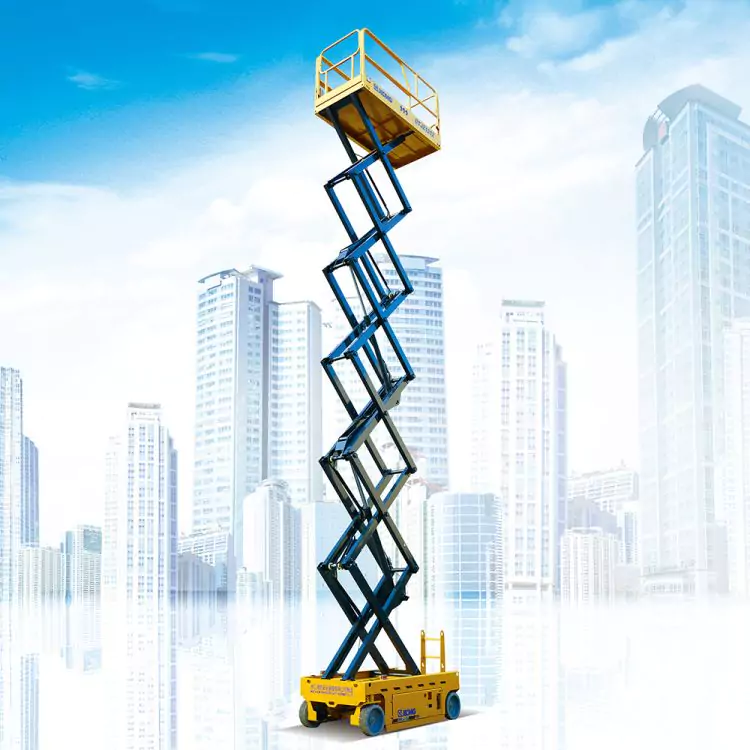

XCMG GTJZ1212E Scissor Lift
Advantages and features:
1. The 256kg/350kg double high-load design meets the working needs under diversified working conditions.
2. The gravity lowering technology is applied for the boom to achieve higher stability and energy-saving.
3. The stepless speed regulation is applied to realize better operating comfort.
4. The non-power-supply design for the chassis improves the wading capability of the machine.
Parameter
| Load capacity | 320kg |
| Load capacity of extended platform | 115kg |
| Max.Occupant Capacity | / |
| Max.Working height | 13.8m |
| Max.Platform height | 11.8m |
| Overall length（no ladder） | 2485mm |
| Overall width | 1190mm |
| Overall height（platform folded） | 2036mm |
| Working platform dimension（Length x Width） | 2276x1120x1254mm |
| Length of extension platform | 900mm |
| Min.ground clearance（pit protector rising/descending） | 101/20mm |
| Wheel base | 1871mm |
| Min.turning radius（inner/outer wheel） | / |
| Lifting motor(kW) | / |
| Max.Traveling speed at low level | 3.2km/h |
| Max.Traveling speed at high level | 0.8km/h |
| Lifting/Descending duration of platform | / |
| Max.gradeability | 25% |
| Max. Inclination（side/forward and backward） | / |
| Battery(v/Ah) | 4x12(300)V/(Ah) |
| Charger(v/A) | 30A |
| Tire specification | Traceless solid 38.1cmx12.7cm |
| Total machine weight | 3140kg |
