Load capacity： 680kg
Load capacity of extended platform ：230kg
Max.Occupant Capacity：4
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

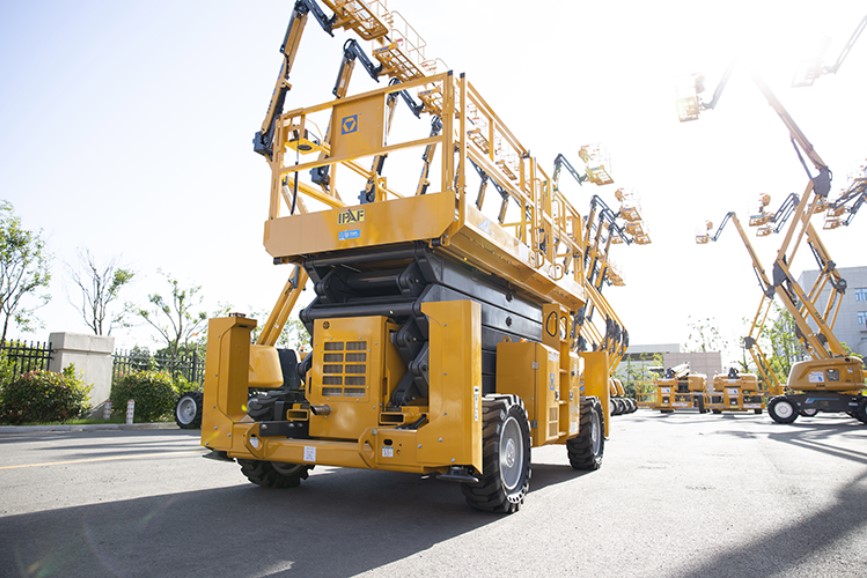

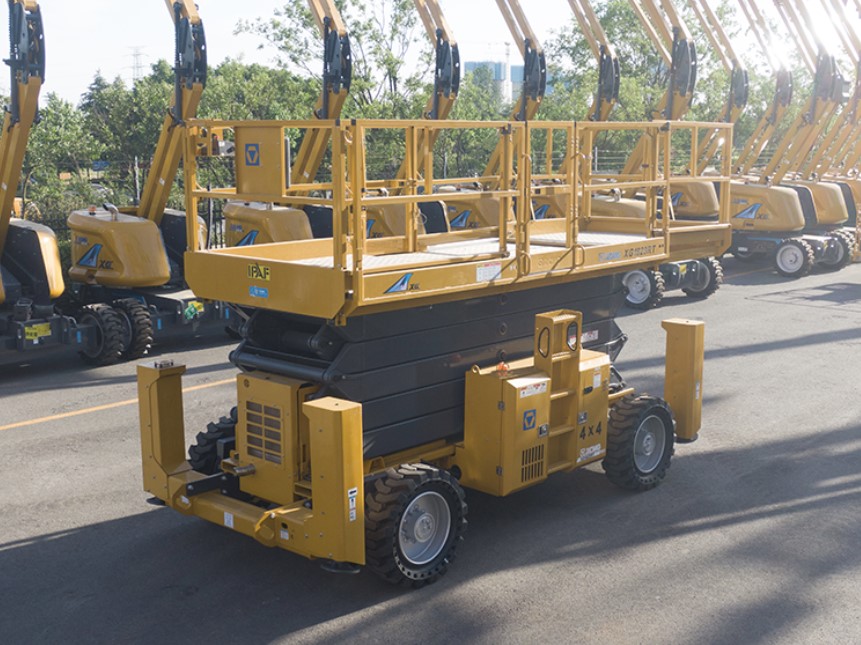

XCMG Hydrostatic Series XG1823RT Rough Terrain Scissor Lifts
XCMG official 18m mobile rough terrain hydraulic scissor lift platform XG1823RT developed and produced by Xugong Group has a working height of 18m, a vehicle width of 2.3m, a rated load of 680kg, and a maximum climbing capacity of 40%.
Compared with the conventional scissor mobile lifting work platform, it has a large load and a wide platform. It is more suitable for the installation of large loads, large objects, and multi-person collaborative operations, such as fire-fighting ventilation pipes, lighting, glass, curtain wall installation, paint spraying, and wall finishing.
Performance Characteristics:
-
Adopt a more energy-saving and fuel-efficient power system, and the whole machine is more energy-efficient and fuel-efficient;
-
The working platform can be expanded and contracted, with larger working space, and more convenient transportation and displacement.
-
Achieve a maximum load of 680kg, reaching the leading level in the industry.
-
The fastest travel speed is 6.1km/h, with 40% climbing ability, making driving operations easier.
Parameter
| Load capacity | 680kg |
| Load capacity of extended platform | 230kg |
| Max.Occupant Capacity | 4 |
| Max.Working height | 18.1m |
| Max.Platform height | 16.1m |
| Overall length（no ladder） | 3980mm |
| Overall width | 2286mm |
| Overall height（platform folded） | 2510mm |
| Working platform dimension（Length x Width） | 3980×1830mm |
| Length of extension platform | 1450/1140mm |
| Min.ground clearance（pit protector rising/descending） | 253mm |
| Wheel base | 2850mm |
| Min.turning radius（inner/outer wheel） | 2.5/5.6m |
| Lifting motor(kW) | / |
| Max.Traveling speed at low level | 6.1km/h |
| Max.Traveling speed at high level | 1.1km/h |
| Lifting/Descending duration of platform | 55/55s |
| Max.gradeability | 40% |
| Max. Inclination（side/forward and backward） | 2/3° |
| Battery(v/Ah) | / |
| Charger(v/A) | / |
| Tire specification | 33×12-20 |
| Total machine weight | 8000kg |
