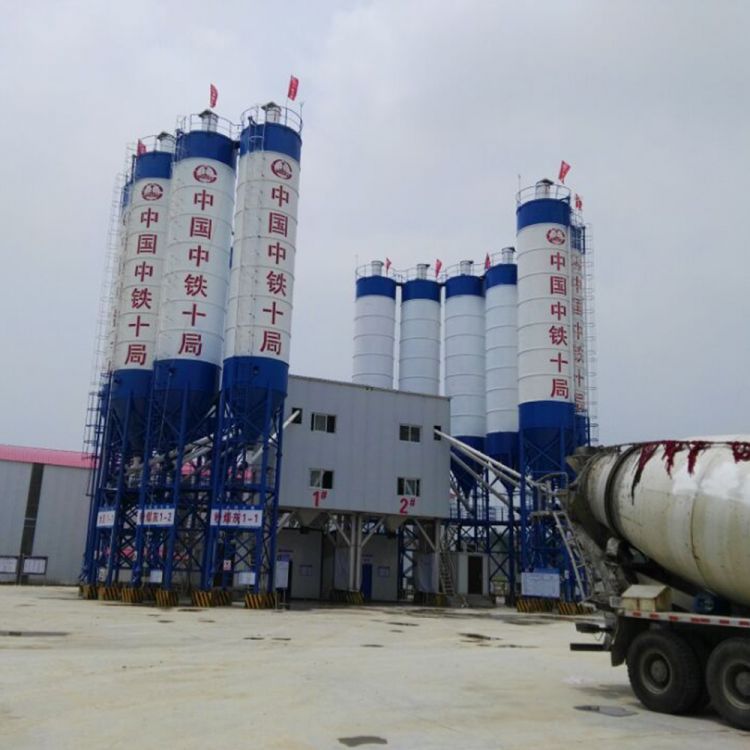

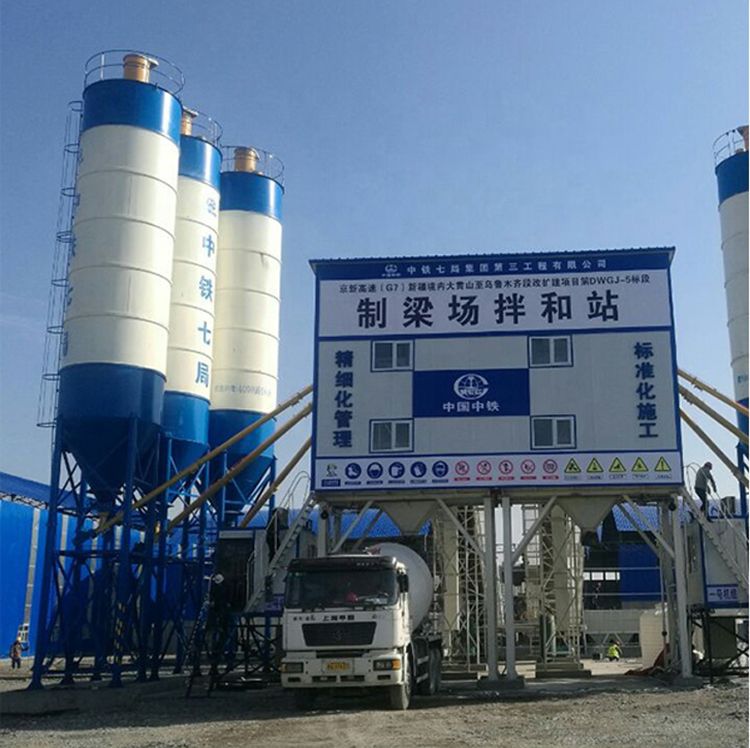

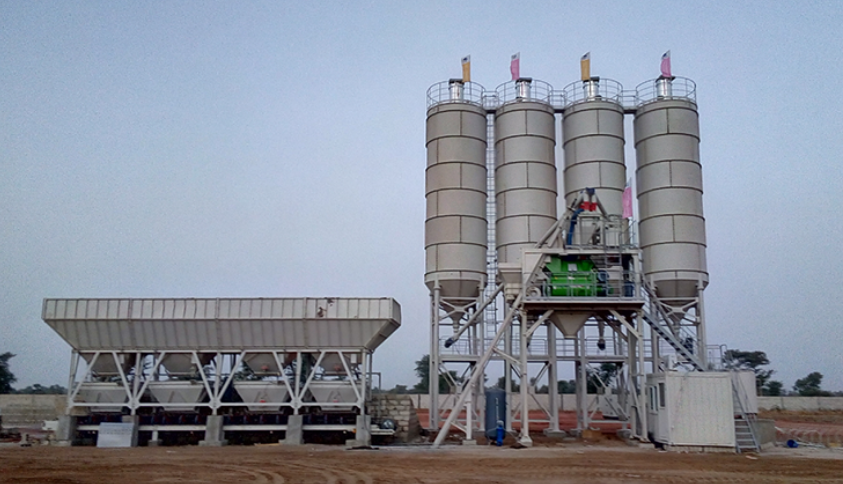

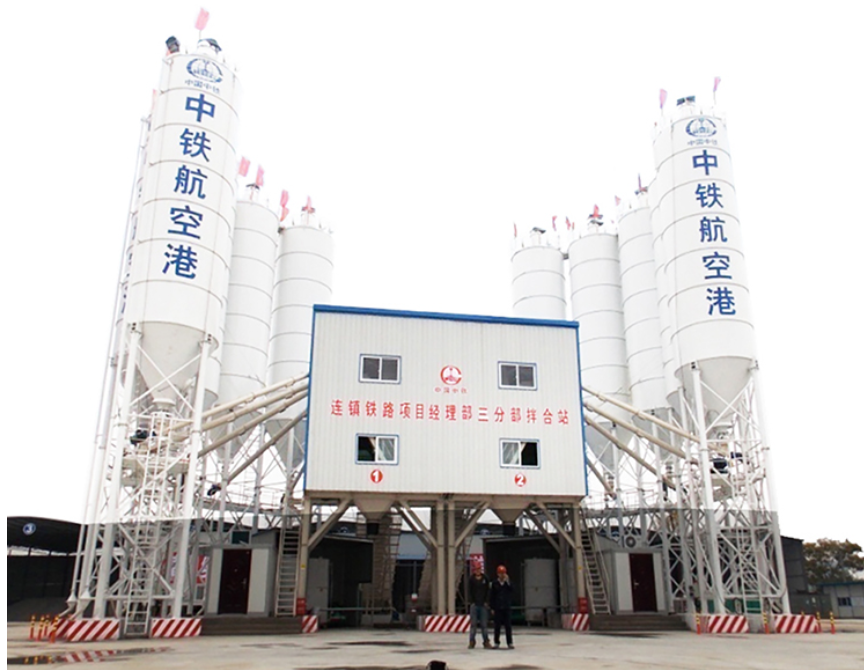

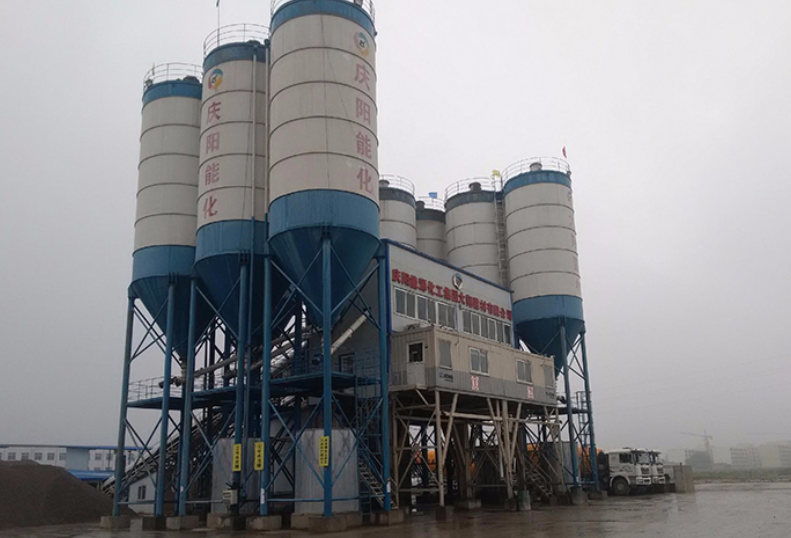

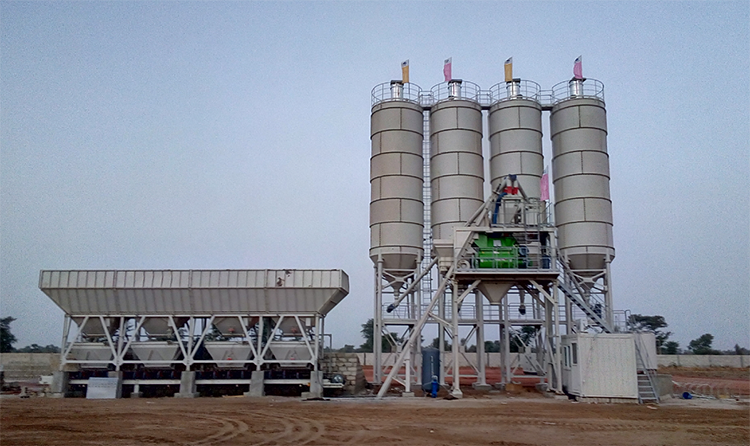

XCMG HZS120V Concrete Mixing Plant
VS


Theoretical rated output:120m³/h

Discharge height:4m

Total power :2X37kw


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

XCMG HZS120V Concrete Mixing Plants

1.More Efficient Production

Unique “Three-straight-face” anti-blocking gate structure is adopted to provide smooth batching of aggregate. Liquid batching is provided with “non-return” function, which can eliminate empty pipe and start and discharge immediately. Overall propelling technology is used for belt weigher, improving delivery efficiency by 40%. Elevating hopper feeder adopts unique mechanical variable-speed winch without frequency conversion, which can realize zero-speed start, high-speed hoist and low-speed stop, with high speed and small impact. Panoramic simulation design is used for control procedure to eliminate redundant link-up of procedures. Logic control of aggregate is used to ensure no dead band in delivery and high efficiency. The machine is provided with customer management, formula management, production data management, and such functions as cleaning by one key, digital calibration and monitoring of black box. The electrical control framework is designed based on the design concept of redundancy, safety and anti-interference, with reliable and stable high-end electrical components and emergency production functions, providing more reliable operation and better continuous production. Based on the human-based interactive design of Microsoft, parameters are well-matched and fixed,

with no need for alteration, and if there is problem, they can be restored with one key.



2.More Uniform Agitating

Spiral loop-current mixing technology features faster material cycle, more violent countercurrent and more uniform agitating, with agitating efficiency 10% higher than its counterparts. Optimized triple sealing technology of “S-shaped labyrinth+ floating oil seal+ framework oil seal” is used, improving the service life by 25%, without leakage in 3000 hours. Accurate feed position, optimized feed sequence and proper layout of water supply vents are designed to solve shaft seizing problem, greatly reducing cleaning intensity of labor.



3.More Comprehensive Customization

By relying such technologies as on temperature control, agitating and delivery, such individualized customization as one machine serving several purposes, construction in extremely cold and hot areas and production of special concrete can be satisfied. Multiple delivery methods of materials are combined to follow local conditions and meet customer’s individualized requirements. All-around and 3D environmental measures are taken to effectively control the pollution from powder dust, waste water, waste slag and noise. With such cutting-edge technologies as the Internet of Things, cloud service and data analysis, such IT management systems as GCC group control, telematics and ERP are formed to realize all-around control of people, vehicles, pumps and plants.



4.Cutting-edge Environmental-care

XCMG not only provides conventional environmental schemes, but commits itself to the application and development of cutting-edge environmental technologies.

Parameter

Theoretical rated output120m³/h
Discharge height4m
MixerJS2000
Theoretical producting periods60s
Aggregate storage 4×15m3
Max. weighing value of slant belt conveyor/
The conveying capacity of screw conveyor /
Total power170kw
Batching range and accuracy of aggregate/
