View larger image
Bucket Load：0.9-1.1m³
Rated Load：1800kg
Rated Power：58kw
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

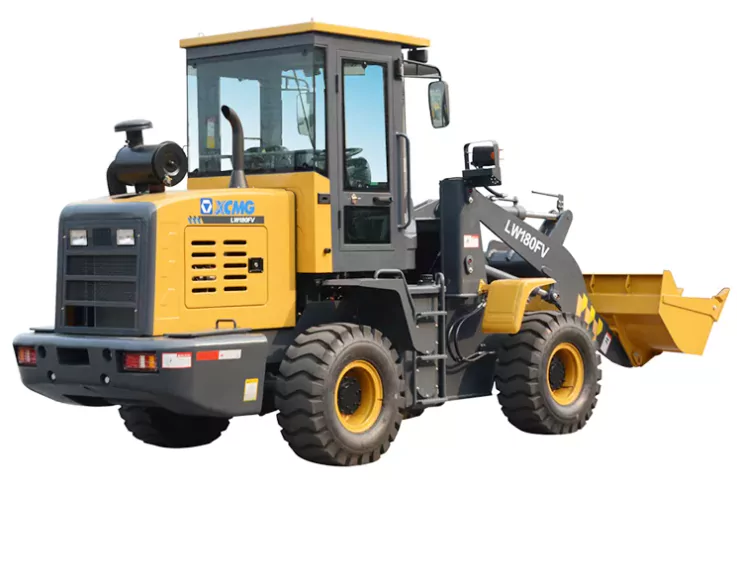

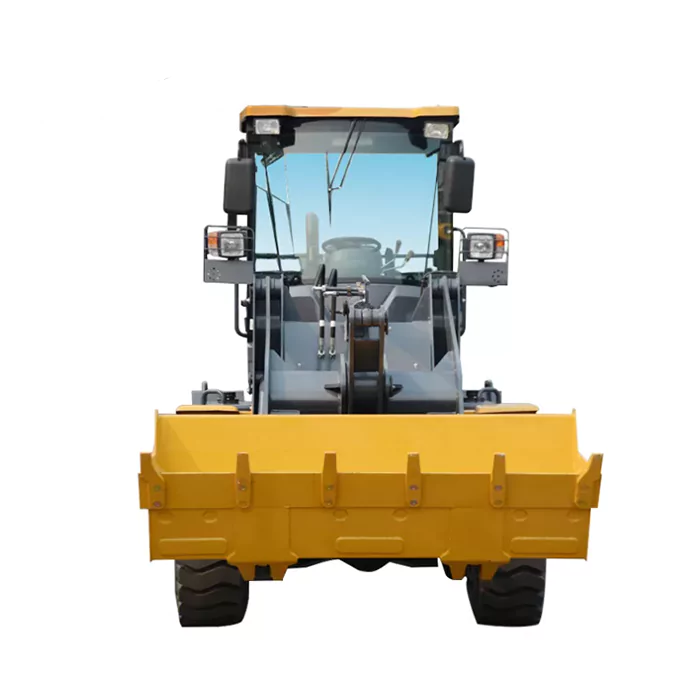

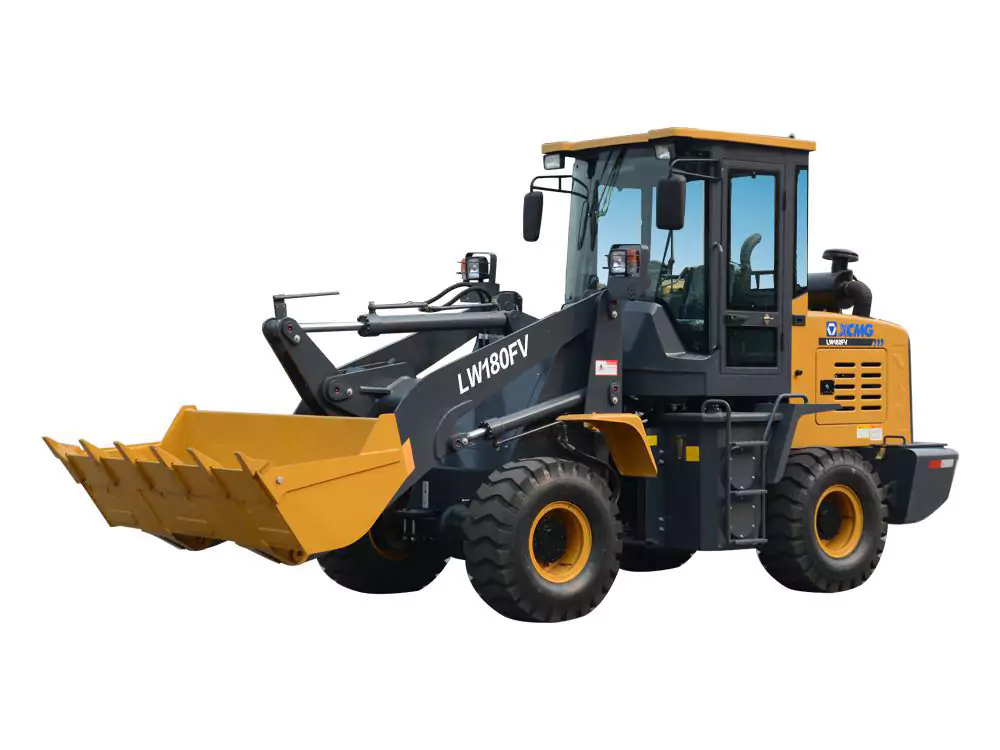

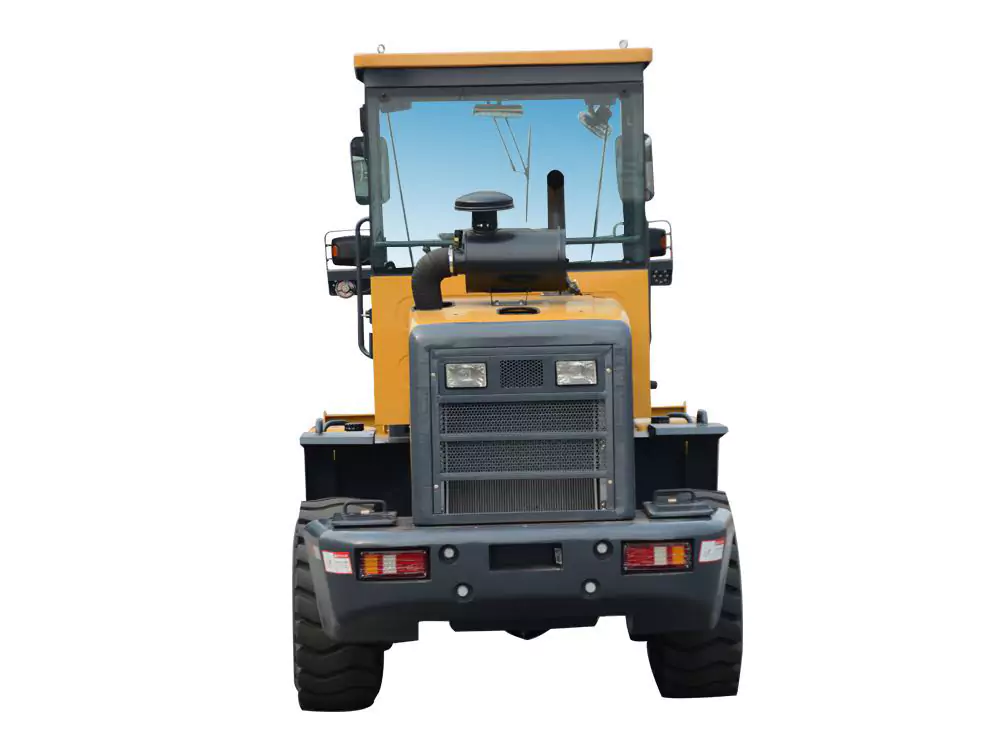

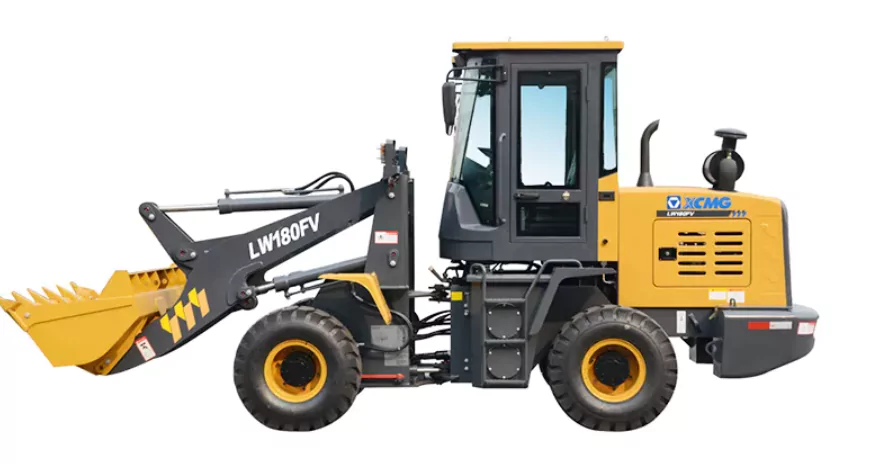

XCMG LW180FV Wheel Loader
XCMG mini front loader LW180FV is the latest generation of loaders introduced by XCMG. XCMG mini front loader LW180FV adopts the international mainstream modelling, the best matching of the power train, and the working device is fully optimized.
XCMG mini front loader LW180FV is a high-quality, high-efficiency, cost effective small-sized loader widely used in housing construction, road maintenance, agriculture, forestry, water conservancy, sand and gravel yards and other fields, Small construction work.
1.With reasonable design, XCMG mini front loader LW180FV adopts hydraulic mechanical drive, and four-wheel drive, featuring larger drive force and digging force; with small turning radius and convenient and agile operation, it is suitable for narrow working area.
- Z type bucket linkage, single arm, lifting cylinder of high pivot, strong digging force and short working cycle time, and higher working efficiency.
- Priority of on-demand oil supply for all hydraulic load-sensing steering and priority of single pump valve working hydraulic system, economic in energy-saving.
- The cab provides the comfortable working environment and advantaged maintenance condition.
Parameter
| Rated operating load | 1800kg |
| Bucket capacity | 0.9-1.1m³ |
| Machine weight | 6200kg |
| Dump clearance at maximum lift | 2650-2970mm |
| Reach at maximum lift | 900-1000mm |
| Wheel base | 2300mm |
| Tread | 1550mm |
| Max. breakout force | ≥58kn |
| Overall machine dimension L*W*H | 5980*2060*2950mm |
| Model | YC4D80-T20 |
| Rated Power/Speed | 58KW/2400RPM |
| Gradeability | 28% |
