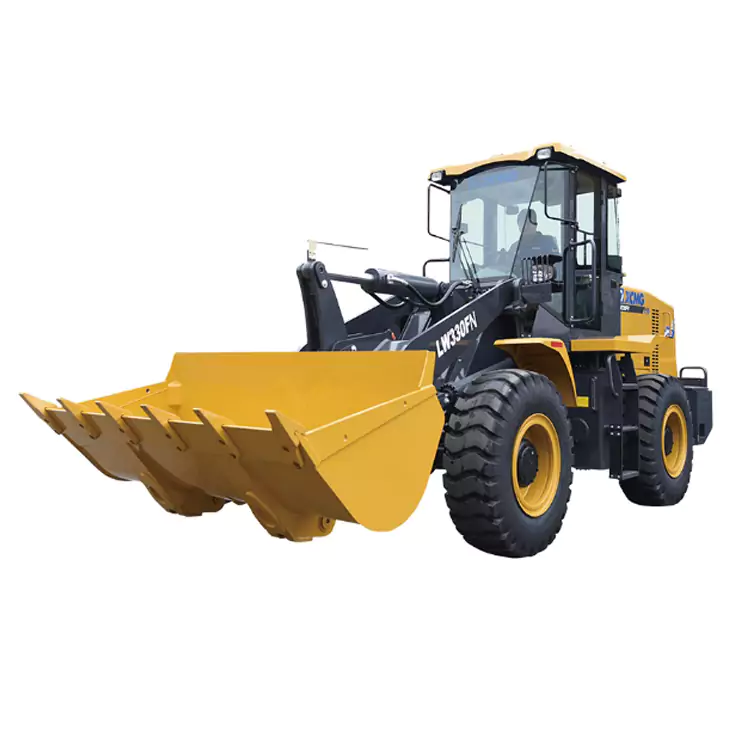

XCMG LW330FN Wheel Loader

LW330FN wheel loader, upgraded based on a classical type LW300FN, is a long-wheelbase type with matched and optimized systems and upgraded performances. In addition to all advantages of LW300FN kept, it is characterized with longer wheelbase, bigger steering angle, upgraded hydraulic system, shovel loading capacity and higher operation efficiency. It is more suitable to shoveling and loading materials. It is widely applied to workplaces, such as coal yard, railway, construction area, stone material factory and so on. Thus, it is reliable, efficient and widely used.

Great strength

1, Tilt cylinder bore of 160mm, enlarge the boom cylinder bore from 110mm to 125mm, and increase the boom lifting force by 29%.

2, 12-ton strong tilt drawing force guarantees the outstanding adaptation to various tough conditions.

3, 7-ton strong boom lifting force ensures various operation methods of high intensity.

High efficiency

1, The adopted 125 work pump features large displacement, strong oil supply, and the total time of three devices is only 10.3s.

2, The turning radius is only 5420mm, short running distance, fast loading speed, saving the fuel and high efficiency.

3, Single pump distribution, load-sensing steering, large flow, enough power, simple and high efficiency.

Long service life

1, The key articulated positions feature two-stage dust-proof, less abrasion and longer service life.

2, Wear resistant blade and bucket teethfeature longer service life.

3, The hydraulic pipe adopts 24° cone and O ring, settling the issue of leakage.

4, Easily worn oil pipe is equipped with the protective bush, prolonging the service life.
