Drive Type: 6×4
Kerb Mass:9750kg
GVW :49000kg
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

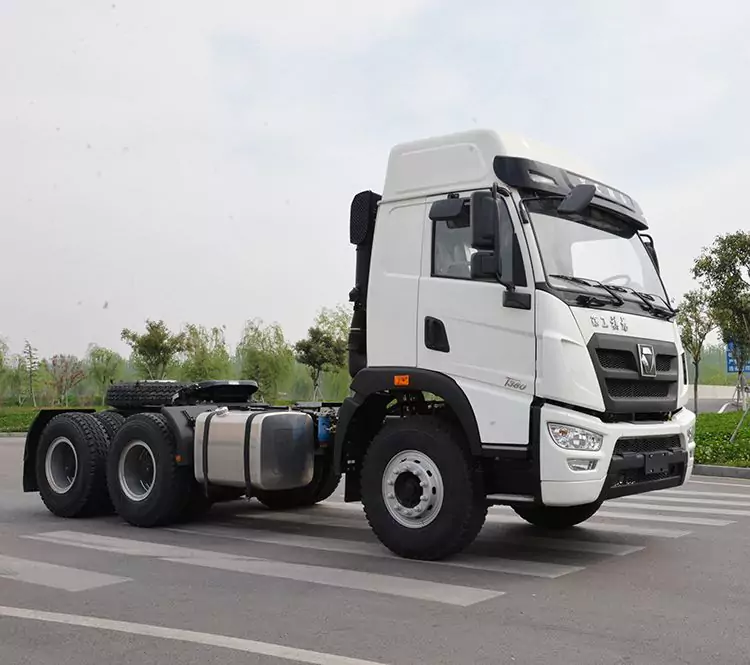

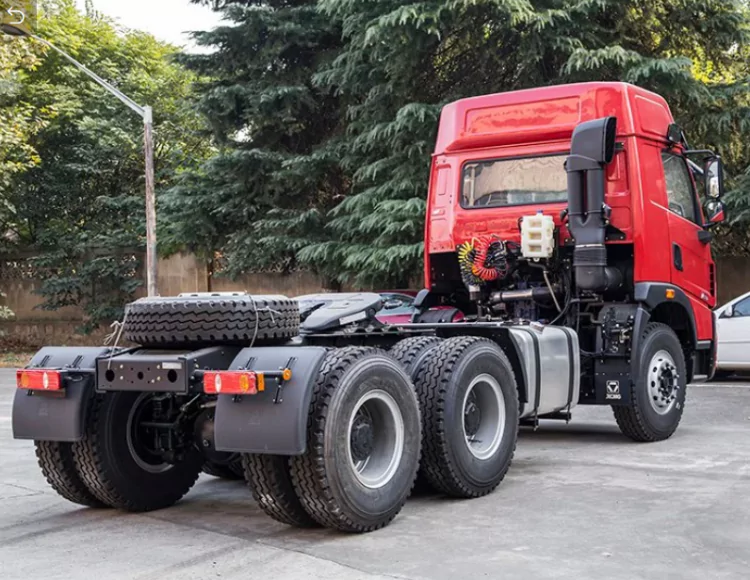

XCMG NXG4250D5WC Tractor Truck
Parameter
Drive Type | 6×4 |
Kerb Mass | 9750kg |
GVW | 49000kg |
Max. Speed | 78km/h |
Min. Turning Diameter | 17m |
Grade Ability | ≥20% |
Fuel Tank | 750L |
Dimension | 7210×2500×3910mm |
Wheelbase | 3300+1350mm |
Min. Clearance | 280mm |
Approach Angle | 18° |
Departure Angle | 46° |
Cabin Model | G7LH |
Left/Right Driving | LHD |
AC | Optional |
Person Allowed in | 2,3 |
Engine Model | ISZ460 51 |
Emission Standard | EUR II |
Displacement | 13L |
Output Power | 338KW |
Max Torque Speed | 2330km/h |
Transmission Model | C12JSDQXL240TA |
PTO | Optional |
Front Axle Model | 7.5T |
Rear Axle Model | 469 |
Main Reducer Ratio | 5.286/4.625/4.111 |
Rim | 7.50V-16 |
Tire | 11R24.5 |
