Drive Type: 4×2
Kerb Mass：7120kg
GVW ：42000kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

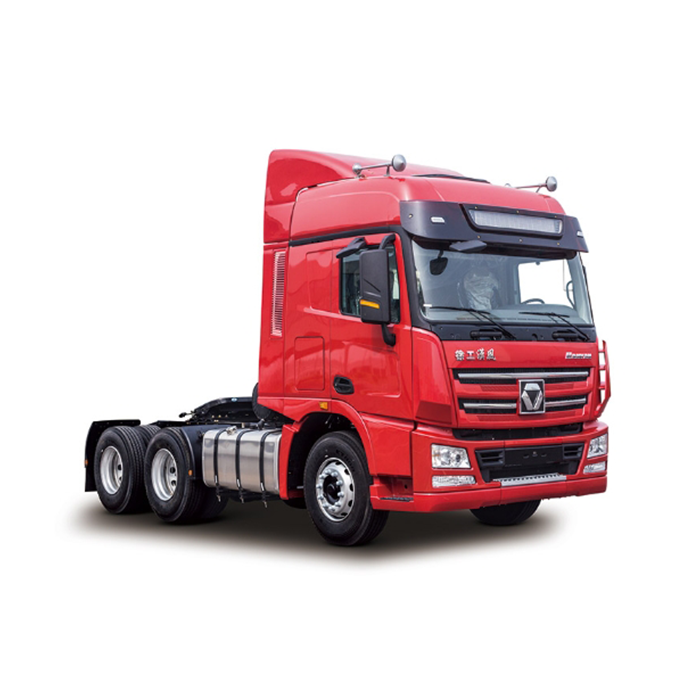

XCMG NXGA4180D3WA Tractor Truck
As the product with great concentriation to develop, the tractor is the most successfully products amonong Chinese truck industry. In terms of technology, we cooperate with international cutting-edge technology, and equip with the most advanced and intelligent manufaturing system, Which lead to higher safety, comfortability, reliability and economy efficiency, the products are standing out in the Chinese high-end logistics market.
Parameter
| Drive Type | 4×2 |
| Kerb Mass | 7120kg |
| GVW | 42000kg |
| Max. Speed | 90km/h |
| Min. Turning Diameter | 12.5m |
| Grade Ability | ≥25% |
| Fuel Tank | 400L |
| Dimension | 6000×2500×3930mm |
| Wheelbase | 3600mm |
| Min. Clearance | 285mm |
| Approach Angle | 18° |
| Departure Angle | 47° |
| Cabin Model | G5LH |
| Left/Right Driving | LHD |
| AC | Optional |
| Person Allowed in | 2，3 |
| Engine Model | WP10.375N |
| Emission Standard | EUR II |
| Displacement | 9.726L |
| Output Power | 276KW |
| Max Torque Speed | 1460km/h |
| Transmission Model | 12JSD200TA |
| PTO | Optional |
| Front Axle Model | 7.5T |
| Rear Axle Model | 13T |
| Main Reducer Ratio | 4.266 |
| Rim | 9.0×22.5/8.5V-20 |
| Tire | 315/80R22.5/12.00R20 |
