Rated Power：353kW
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

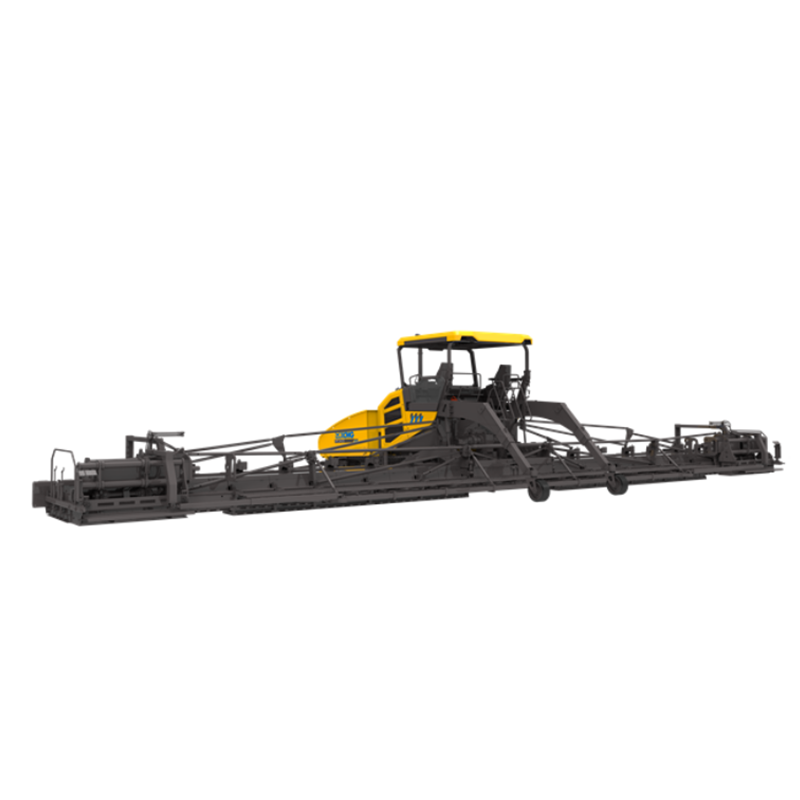

XCMG RP2405 Paver
(1) The maximum paving width is 24 meters, the maximum paving thickness is 600mm, and the maximum productivity can reach 1800t/h;
(2) The fan is driven by an electronically controlled silicone oil clutch, and the fan speed automatically matches the heat dissipation temperature, making heat dissipation more intelligent; at the same time, it uses a three-in-one powerful composite radiator to ensure continuous operation for a long time under high ambient temperatures of 50°C;
(3) The rear part of the fuselage is equipped with support wheels, making walking in large-width transitions more stable;
(4) Equipped with an extra-long hopper and a hydraulic front lift, it can adapt to different materials trucks and effectively prevent material from spreading, making paving more continuous.
Parameter
| Engine manufacturer | / |
| Engine Model | / |
| Rated Power | 353kW |
| Operating weight | 32500-52000kg |
| Overall dimensions | 9220×3175×4200mm |
| Basic Pave Width | 3m |
| Maximum Pave Width | 24m |
| Maximum L ayer Thickness | 600mm |
| Maximum Paving Speed | / |
| Maximum Travel Speed | / |
| Theoretic productivity | 1800t/h |
| Hopper Capacity | / |
| Gradeability | / |
| Heating of screed | Electric heating |
| Travel type | / |
