Rated Power:150kW/2000rpm
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

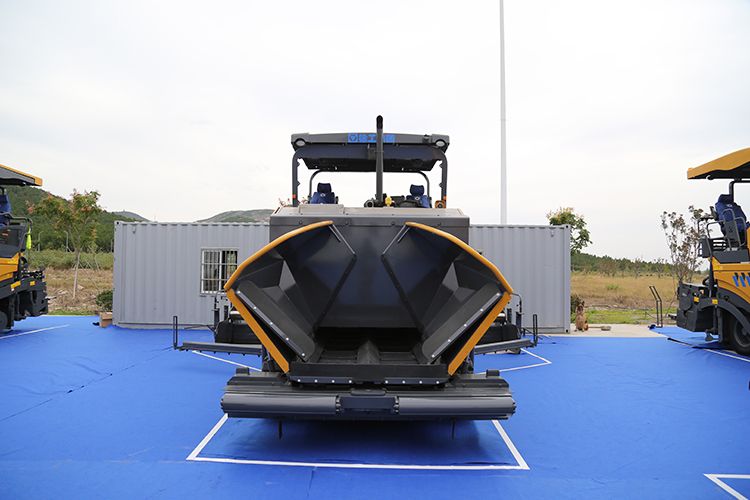

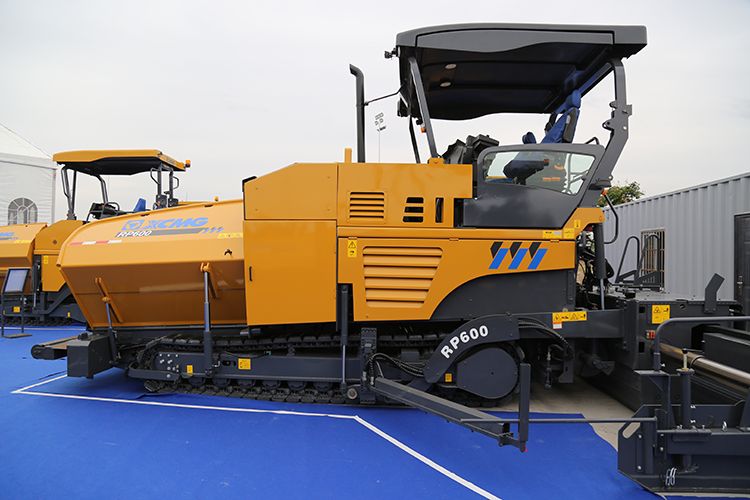

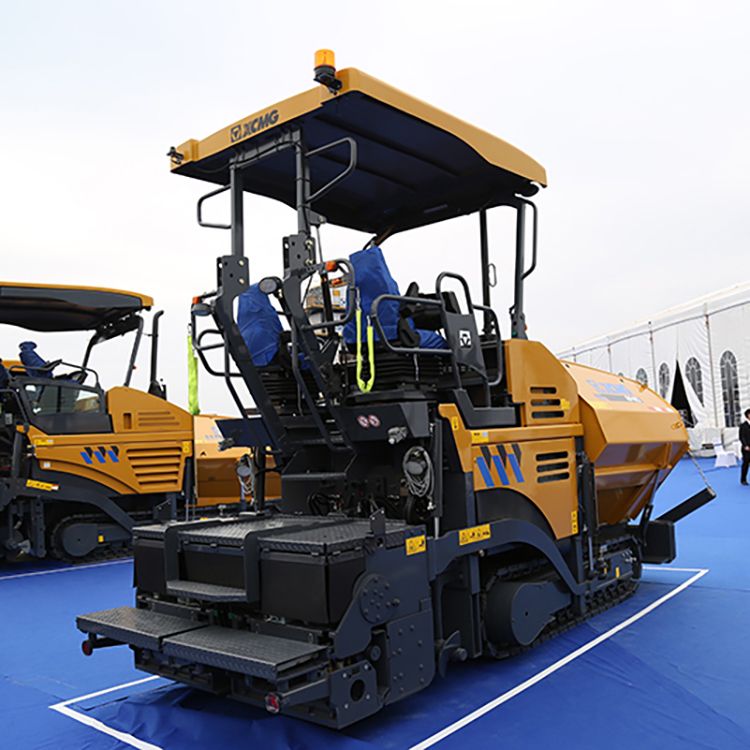

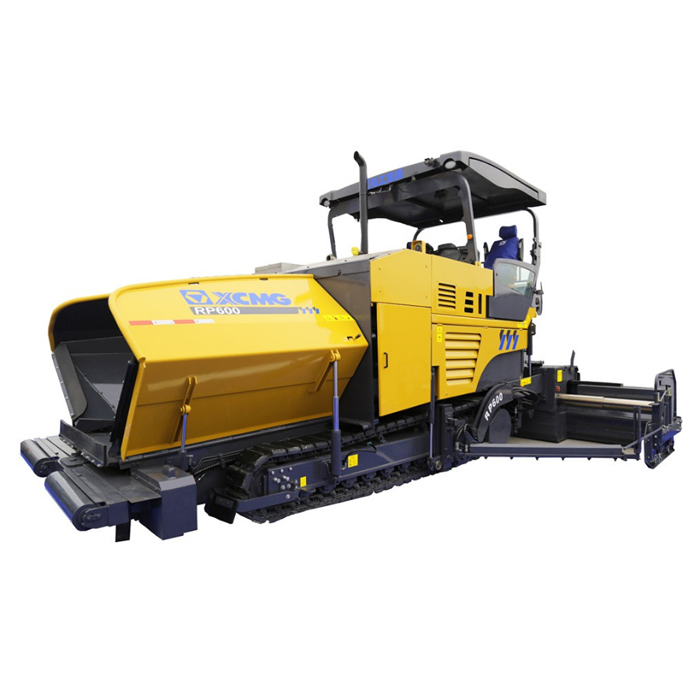

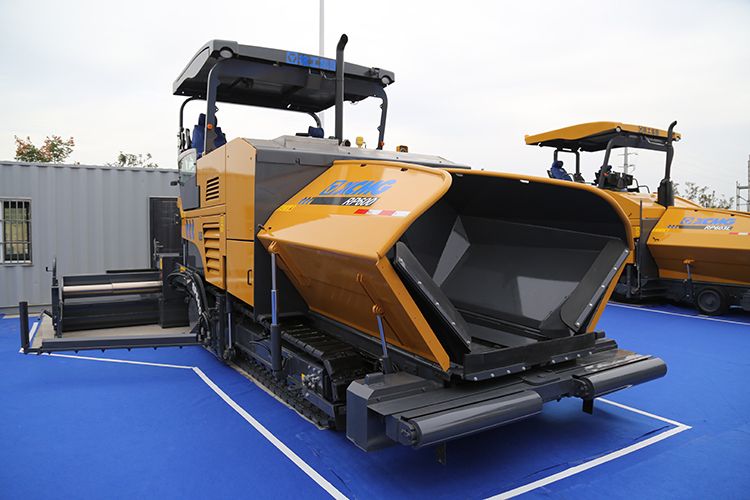

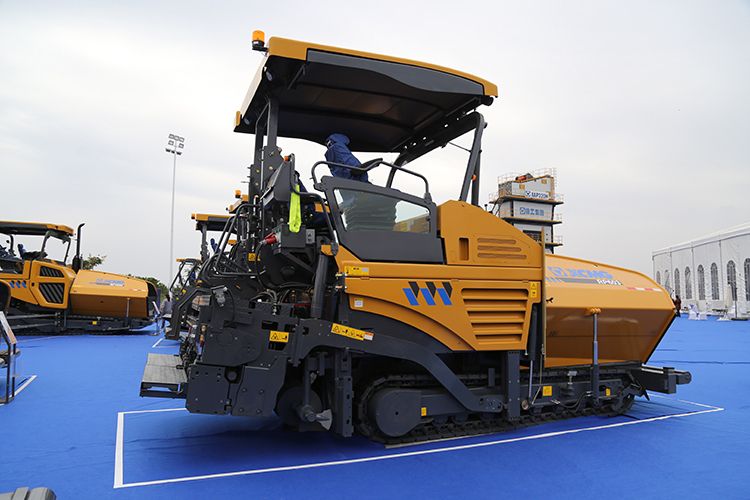

XCMG RP600 Paver
The RP600 emulsified asphalt synchronous spreading paver is XCMG’s 3 series large paver technology platform. By integrating an advanced pulse emulsified asphalt spraying system, it can realize the simultaneous operation of emulsified asphalt spraying and asphalt mixture paving. The improved construction equipment is mainly used for preventive maintenance of high-grade asphalt pavement and corrective maintenance of minor diseases. It can also be used for asphalt concrete surface paving. Performance characteristics are as follows:
Adopting full hydraulic drive and intelligent integrated control, the whole machine technology has reached the international advanced level;
The self-developed pulse spray control technology can realize automatic adjustment of spray volume with paving width and paving speed, as well as automatic alignment of spray joints;
Using a central symmetrical asphalt tank and extended crawler tracks, the overall machine structure design is more reasonable, the walking is smoother, and the driving force is stronger;
Equipped with high-end hydraulic telescopic screed, using electronically controlled hydraulic arch adjustment and constant temperature automatic heating technology;
Using the slideway and guide rod follow-up mechanism, the spraying width can be changed synchronously with the paving width, making it flexible and convenient to use.
Parameter
Engine manufacturer | Deutz |
Engine Model | TCD2013L062V |
Rated Power | 150/2000kW/rpm |
Operating weight | 27500kg |
Overall dimensions | 7780×3000×3985mm |
Basic Pave Width | 3.0~6.0m |
Maximum Pave Width | 6m |
Maximum L ayer Thickness | 350mm |
Maximum Paving Speed | 20m/min |
Maximum Travel Speed | 3.3km/h |
Theoretic productivity | 500t/h |
Hopper Capacity | 13t |
Gradeability | 20% |
Heating of screed | Electric heating |
Travel type | / |
