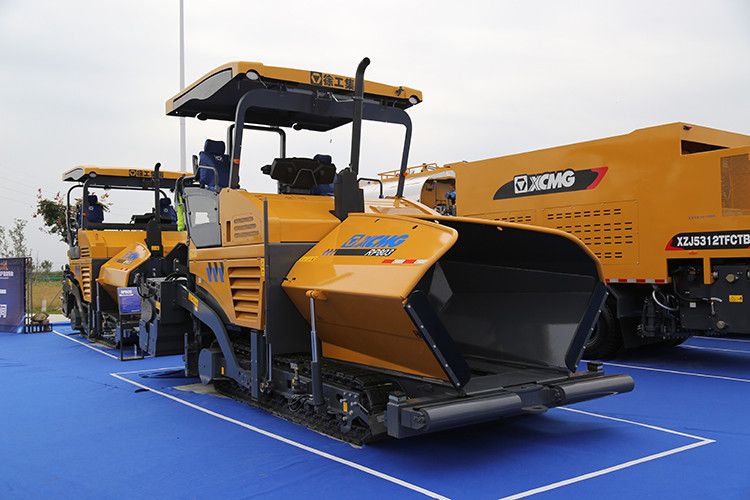

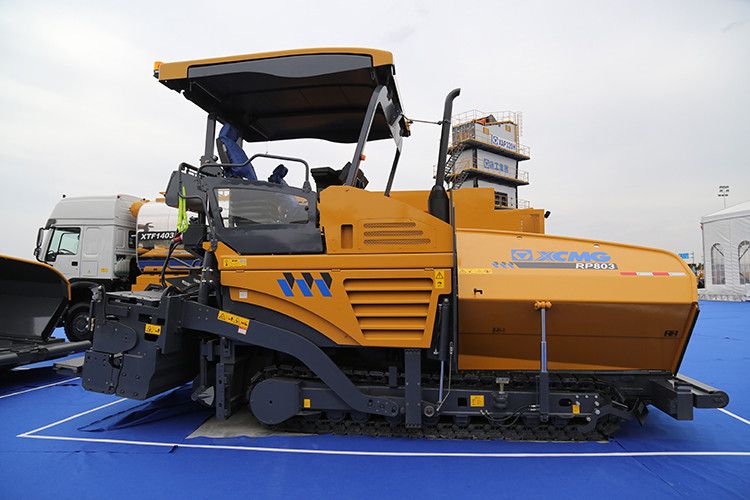

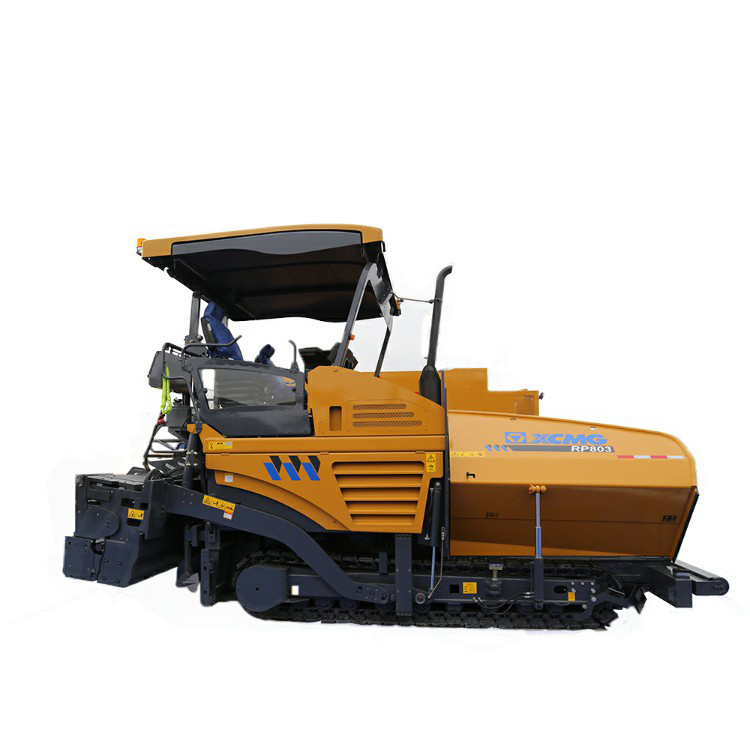

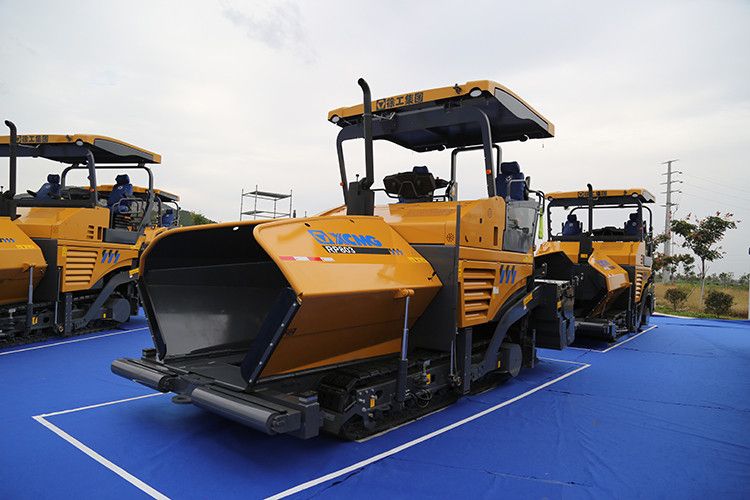

XCMG RP803 Paver
VS


Engine Model:Shangchai SC7H190
Maximum Pave Width:8.15m
Rated Power:140kW/2000rpm

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

XCMG RP803 Paver


The RP803 asphalt paving auxiliary machine is driven independently on the left and right sides, controlled by a microcomputer, and has constant-speed automatic control technology for the paving speed. 2. The left and right materials are conveyed and divided using ultrasonic sensing control technology. 3. The leveling system adopts electronic automatic leveling technology to effectively improve the smoothness of the road surface. 4. The hydraulic telescopic screed adopts single vibration, pulse vibration and electric heating technology, which is environmentally friendly and increases the life of the screed base plate. 5. The centralized lubrication system can manually and evenly supply oil to the bearings in various high-temperature parts on a regular basis.

Performance features:
(1) Left and right independent driving, microcomputer control, constant speed automatic control technology of paving speed.

(2) The left and right material transport and distribution adopts ultrasonic sensing control technology.

(3) The leveling system adopts electronic automatic leveling technology to effectively improve the smoothness of the road surface.

(4) The hydraulic telescopic screed uses single vibration, pulse vibration and electric heating technology, which is environmentally friendly and increases the life of the screed base plate.

(5) The centralized lubrication system can manually and evenly supply oil to the bearings in various high-temperature parts on a regular basis.

(6) Standard configuration is the advanced, mature and reliable Shanghai Diesel new generation four-valve SC7H water-cooled supercharged engine, which has strong power and low fuel efficiency.

(7) The distributing blades are made of highly wear-resistant alloy materials.

(8) The control panel can intuitively display various working functions, paving, and driving speed, and can be installed left and right.

(9) The whole machine has the advantages of high degree of automation, simple and convenient operation, good construction quality and high operating efficiency.

Parameter

Engine manufacturerShangchai
Engine ModelSC7H190
Rated Power140/2000kW/rpm
Operating weight26500kg
Overall dimensions7040×3000×3950mm
Basic Pave Width3.0-5.85m
Maximum Pave Width8.15m
Maximum L ayer Thickness400mm
Maximum Paving Speed 20m/min
Maximum Travel Speed3km/h
Theoretic productivity700t/h
Hopper Capacity15t
Gradeability/
Heating of screed/
Travel type/
