View larger image
Agitating volume: 3.5 m³
Capacity：14 m³/h
Curb mass ：8600 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

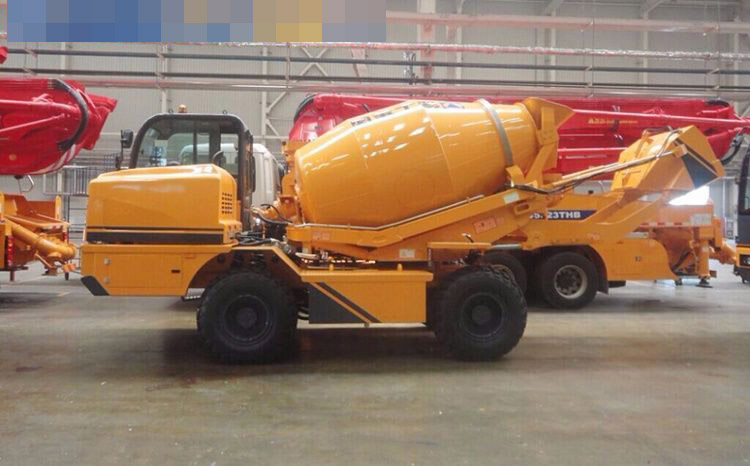

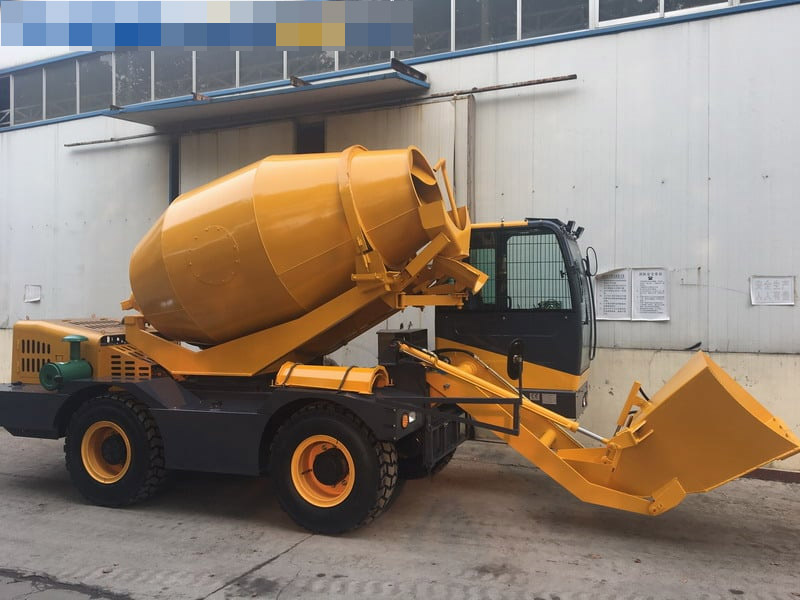

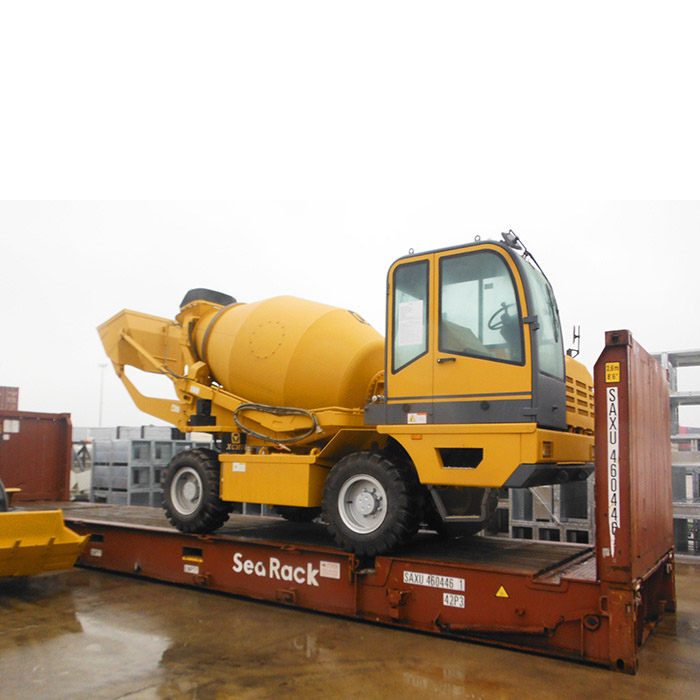

XCMG SLM4K Self-loading Concrete Truck Mixer
Concrete self loading mixer ismainly applied in the occasions where require on-site concrete mixing, such as: common road, railway construction, highway slopes (walls), dam, ditches and other water conservancy projects, as well as some infrastructure constructions with narrow space. It is especially suitable for on-site construction work in remote areas far away from concrete mixing plant.
It integrates five functions, material loading, metering, mixing, transporting and material unloading, which has features of powerful functions, convenient operation and strong site adaptive capacity.
Parameter
| Agitating volume | 3.5m³ |
| Total weight | 8600kg |
| Outline dimension | 7200×2500×3300mm |
| Driving type | 4×4 |
| Engine | YC4A125Z |
| Max.power | 92kw |
| Emission standard | Euro II |
| Water tank | 2×350L |
| Hydrualic oil tank | 125L |
| Capacity | 14m³/h |
| Max.Speed | 20km/h |
