View larger image
Overall weight：3040kg
Rated capacity：3500kg
Maximum lifting height：3000mm
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

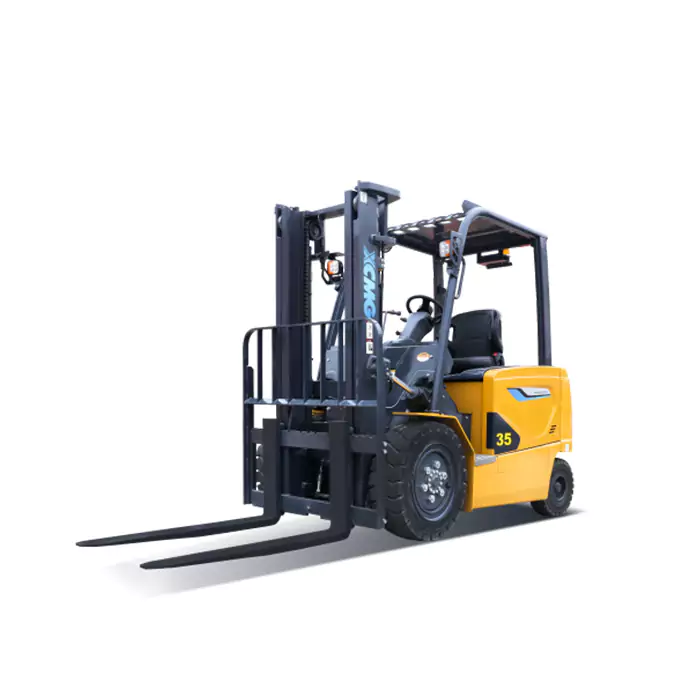

XCMG XCB35 Electric Counterbalanced Forklift
The same platform design as the lead, a key switch; drive system, lifting system are maintenance-free AC high-power motors, front wheels and motors are independently controlled.
The motor is independently controlled, strong power; the whole vehicle is equipped with rising buffer function as standard to meet the requirements of high platform operation; the rear axle integrates angle
The rear axle is equipped with integrated angle sensor, which can automatically decelerate the speed when crossing the bends.
Tail frame structure design, low centre of gravity, strong stability; battery side pull design, convenient replacement.
Parameter
| Overall weight | 30400kg |
| Rated capacity | 3500kg |
| Maximum lifting height | 3000mm |
| Maximum travelling speed （unloaded\loaded） | 13/14km/h |
| Maximum lifting speed （unloaded\loaded） | / |
| Maximum gradeability（loaded） | 15/17% |
| Dimensions without fork | / |
| Wheel base | / |
| Load center | / |
| Minimum turning radius | / |
| Fork dimensions | / |
