XCMG XCF506K Counterbalanced Forklift

Home Product Forklift Electric Forklift

View larger image

XCMG XCF506K Counterbalanced Forklift

Overall weight：7980kg

Rated capacity：5000kg

Maximum lifting height：3000mm

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

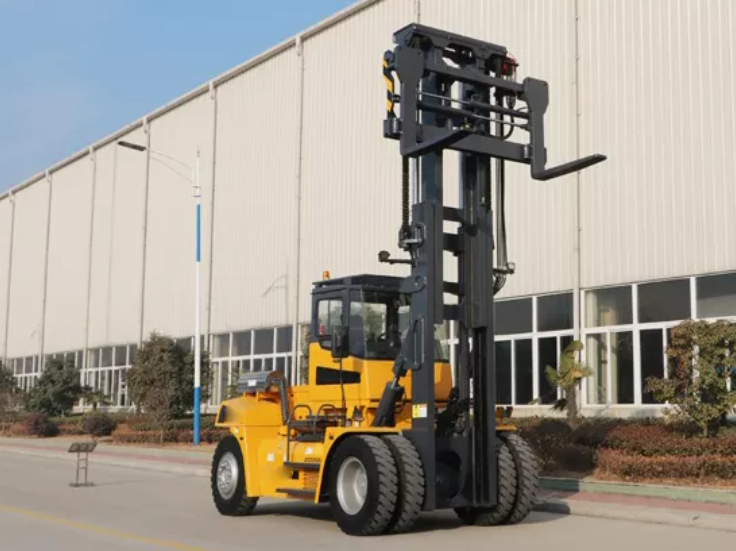

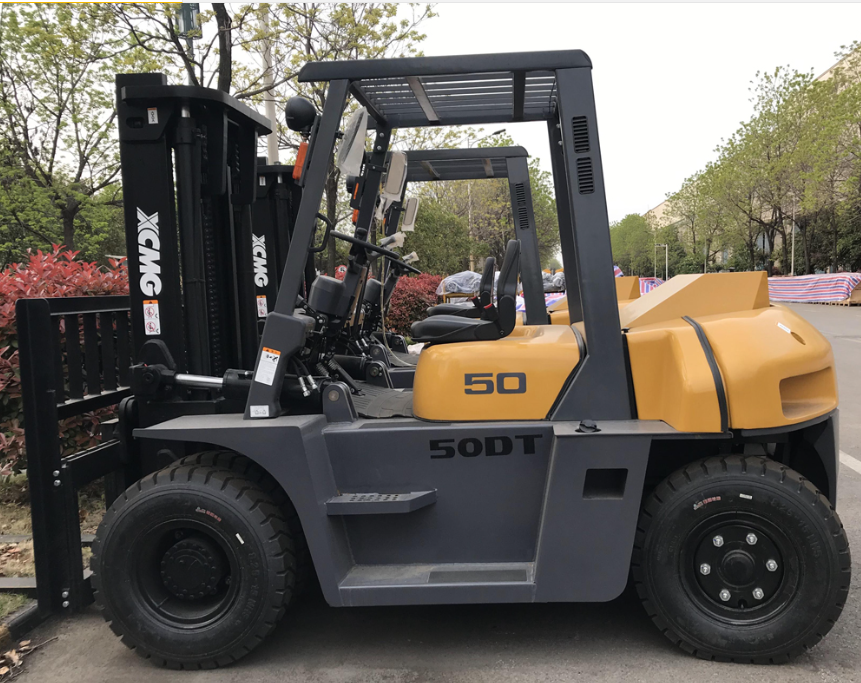

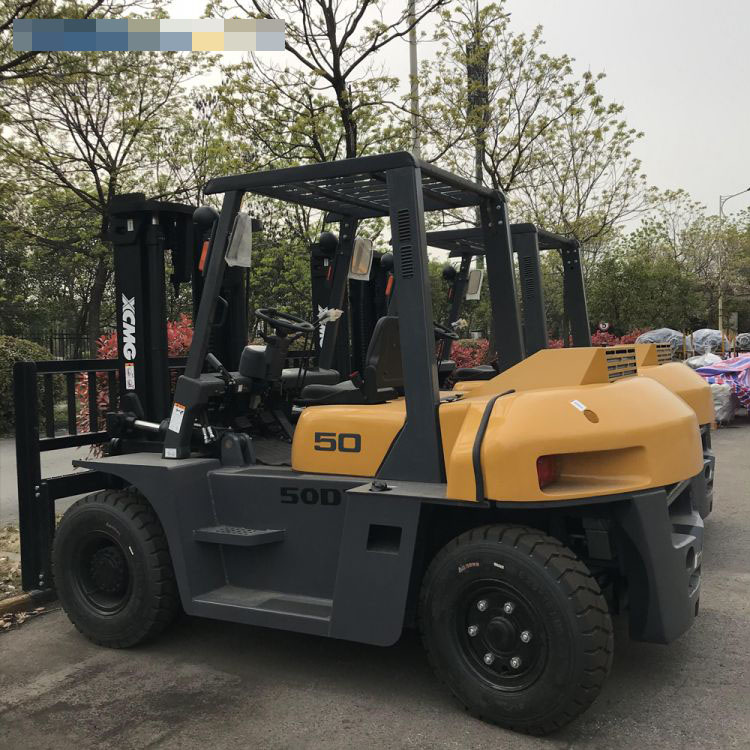

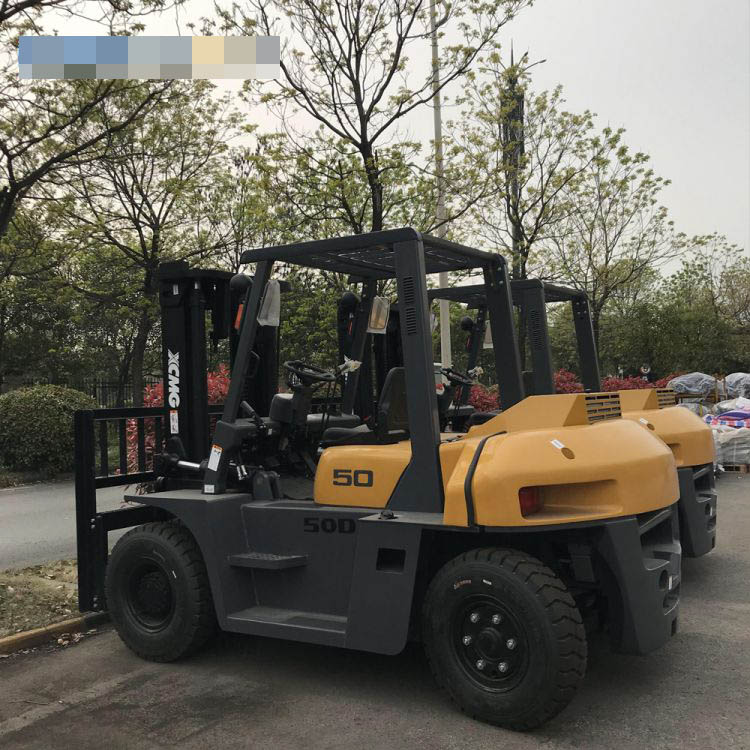

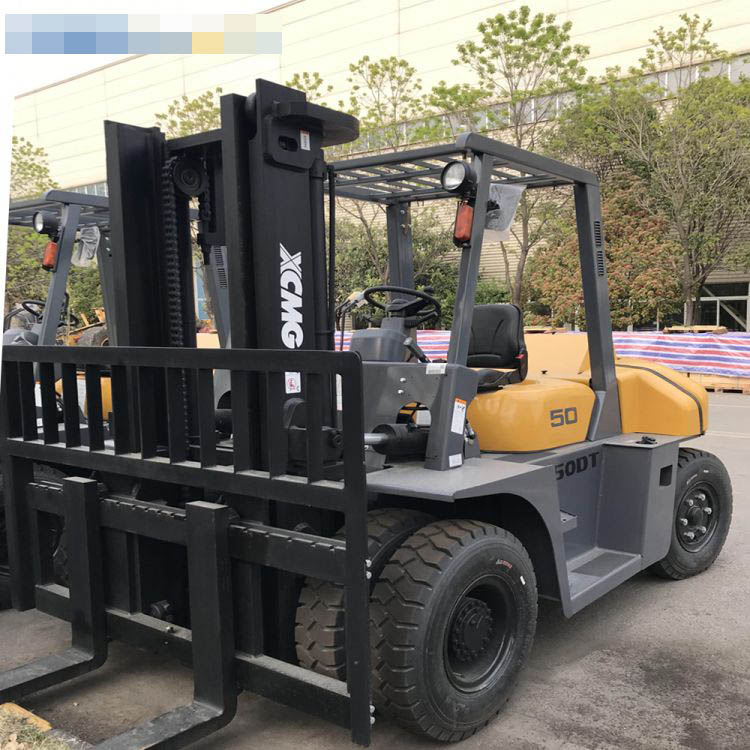

XCMG XCF506K Counterbalanced Forklift

XCMG XCF506K Counter-balanced Forklift is Streamlined shape, full suspension structure, mainstream configuration, excellent radiator Counter-balanced forklift truck is not only suitable for loading and unloading of goods and short distance transportation, but also can undertake the auxiliary maintenance, disassembly and installation of important equipment. It can also be used to handle steel coils, bulk materials, concrete, logs, 20 ‘containers and other materials with special tools.It applys to logistics areas such as freight yards, warehouses, ports, docks, railway and highway transfer stations

Streamline shape, full suspension body, mainstream configuration, excellent heat dissipation

Parameter

Overall weight	7980kg
Rated capacity	5000kg
Maximum lifting height	3000mm
Maximum travelling speed （unloaded\loaded）	23/20km/h
Maximum lifting speed （unloaded\loaded）	540/510km/h
Maximum gradeability（loaded）	0.3
Dimensions without fork	3510×1995×2515
Wheel base	2250mm
Load center	600mm
Minimum turning radius	3280
Fork dimensions	1220×150×60mm
